0.44g Happymodel 2.4G ExpressLRS ELRS EP2 Nano High Refresh Rate Ultra-small Long Range RC Receiver for RC Drone - 19.00 €

0.44g Happymodel 2.4G ExpressLRS ELRS EP1 Nano High Refresh Rate Ultra-small Long Range RC Receiver for RC Drone

OVERVIEW:

The Happymodel 2.4GHz ELRS nano series receiver is an open source program based on ExpressLRS, we have 3 types rx module released.

The PP RX is designed by @Jye Smith from ExpressLRS development team. Its main hardware architecture is STM32L432KBU6 MCU and SX1280 RF chip. It has a built-in ceramic antenna, which is super light and small in size.

On the basis of PP RX, we have developed the Nano 2.4GHz rx of ESP8285 version named EP1 and EP2. The RF module of EP1/EP2 is the same like PP RX and use ESP8285 MCU . So you can upgrade firmware by WIFI , that’s too simple .

Due to the low-latency and high-refresh-rate RF module, they are very comfortable for FPV race and Long Range FPV. And very suitable for Tiny whoop because of the ultra light and Nano size.

Specifications:

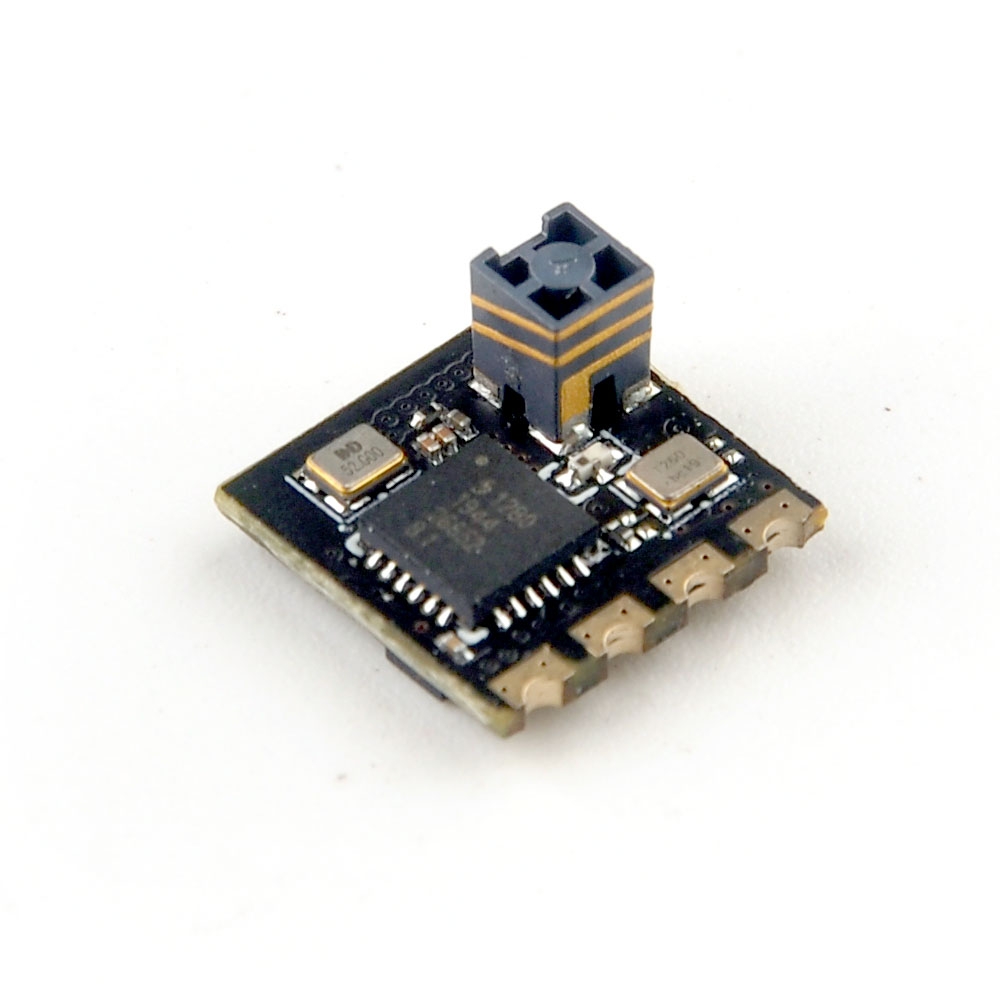

Item Name: EP2 Nano Receiver

Type: ISM

ESP8285 MCU

SX1280IMLTRT RF Module

SMD Ceramic antenna

Frequency Range: 2400 MHz to 2500 MHz

Maximum receive refresh rate: 500Hz

Minimum receiver refresh rate: 25Hz

Working voltage: 5v

Weight: 0.44g

Dimension: 10mm*10mm*6mm

Peak gain: 3.7dB

Range: 2KM above (Open Area)

Open area means the receiving range refers to the test data without obstruction, using fixed-wing flying altitude greater than 150 meters, and transmitter power above 100mw.

Notes:

Since the Official Perfect version of ELRS firmware has not been released yet, currently our PP_RX, EP1/EP2 RX and ES24TX pre-loaded firmware are all beta versions, you can upgrade the official firmware when Official perfect target available.

More details

https://github.com/ExpressLRS/ExpressLRS

Bind procedure:

- Supply power to the PP/EP1/EP2 rx, wait until the LED on the RX is off, immediately turn off the power, and then repeat again the above steps. When the RX is powered on for the third time, the LED light will start to double-flash, which means that the RX enters the binding mode

- Insert the ES24TX module or other DIY 2.4G ELRS TX to Radio transmitter, and choose External RF mode to CRSF protocol, then you can find ELRS menu from the Radio systems(Need to copy the ELRS.LUA file to the SD-Card tools first), Enter into ELRS and press [Bind], the LED on the RX module will getting to be solid if bind successfully.

- Receiver LED status meanings:

PP RX: LED solid means bind successful or Connection established; LED double-flash means in bind mode; LED flash slowly means no signal connection from the TX module

EP1/EP2 RX: LED solid means bind successful or Connection established; LED double-flash means in bind mode; LED flash slowly means no signal connection from the TX module; LED flash fast means in WIFI hotspot mode, you can connect the WIFI of the RX and upgrade firmware of the RX via visit 10.0.0.1 from the web browser(password: expresslrs)

ExpressLRS Receiver:

Package Included:

1 x EP2 Nano Receiver
