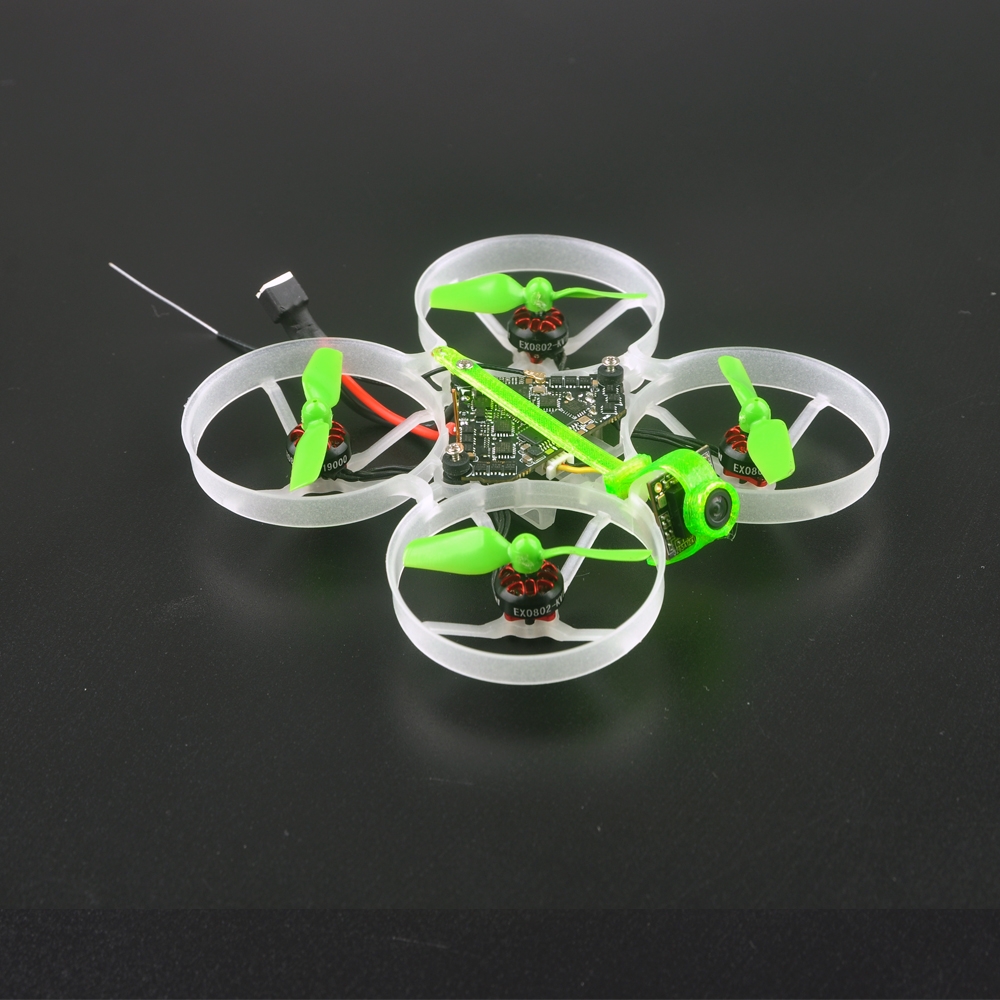

19.5g Happymodel Moblite7 75mm 1S Diamond F4 AIO 5A BB2 ESC Reciver 25/200mW VTX Whoop FPV Racing Drone BNF w/ EX0802 19000KV Unibell Motor Runcam Nano 3 800TVL Camera - 92.00 €

Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)

Free shipping aviable, Registered postage from 25 €

Video

Notice:

Because the previous materials of the bag are seriously out of stock, happymodel change it in soft fabric material .

At present, our stock are mix, will send randomly.

July 18th, 2021.

Specification:

Brand: Happymodel

Item Name: Moblite7 1S 75mm ultra light brushless whoop
Wheelbase: 75mm
Size: 97x97x25mm
Weight: 19.5g (without battery)
Weight: 36g (with Original 1s 650mah Lipo battery )

Motor	Model: EX 0802 19000KV ( New Unibell Version) Configuration: 9N12P Stator Diameter: 8mm Stator Length: 2mm Shaft Diameter:Î¦1mm Motor Dimension(Dia.Len): Î¦10.5mm14.9mm Weight(g): 1.7g No.of Cells(Lipo): 1S only
Flight Controller	(Frsky SPI RX Version) DiamondF4 FR FC Firmware Target: CrazybeeF4FR MCU: STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Original whoop size compatible Power supply: 1Sbattery input (DC 2.9V-4.35V) Built-in5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5.8G VTX Built-in SPI Frsky/Flysky receiver Built-in 5V 1A BEC
Onboard 4in1 ESC	MCU Upgraded to EFM8BB21 Power Supply: 1S LiPo/LiPo HV Current: 5A continuous, peak 6A (3 seconds) Support BLHeliSuite programmable Factory Firmware: O_H_50_REV16_8.HEX Default Protocol: DSHOT600
Onboard Frsky SPI D8 receiver Version	SPI BUS Receiver Frsky D8 Compatible Compatible Non EU transmitter D8 model Channels: 8CH Failsafe Support No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m
Onboard Flysky Receiver Version	SPI BUS Receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8CH (AFHDS) or 14CH (AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m Failsafe Support
Onboard 5.8G 40CH 25-200mW VTX	Output Power: 25mw~200mw switchable Frequency: 40CH Input Voltage: 3.3V 5.5V Current Consumption: 300mA (type) Frequency: 5.8GHz 5bands 40 channels (include Race band) Smartaudio Ready
Runcam Nano 3 FPV Camera	Model: RunCam Nano 3 Image Sensor: 1/3" CMOS Horizontal Resolution: 800TVL Lens : 2.1mm(M8) FOV 160Â° Signal System: PAL/NTSC Non Switchable S/N Ratio: >50dB Electronic Shutter Speed: Auto Auto Gain Control (AGC): Auto Min. Illumination: [email protected] D-WDR: Auto Day/Night: Color Power:DC 3-5.5V Current: 110mA@5V [email protected] Housing Material: ABS Net Weight: 1.2g Dimensions: L14mmW14mmH9mm
Lipo Battery	Capacity: 650mAh Voltage: 3.8V Continuous Discharge Rate: 30C Instantaneous Discharge Rate: 60C Size: 60mmx18mmx8mm Weight: 16g Connector: PH2.0 Quantity: 2 PCS

Features:
- The lightest 1s 75mm brushless whoop
- Powerful and efficiency
- The lightest 1s AIO 5IN1 F4 flight controller
- New Unibell EX0802 brushless motors
- Low profile Canopy design
- VTX power switchable 25mw~200mw

Package Included:

1 x Happymodel Moblite7 75mm Whoop RC FPV Racing Drone
Option1: 1 x DiamondF4 FR built-in SPI Frsky Receiver
Option2: 1 x DiamondF4 FS built-in SPI Flysky Receiver
4 x EX0802 KV19000 Unibell Brushless Motor
1 x HQPROP 40MMX2 Propeller(4cw+4ccw)
1 x Runcam Nano 3 FPV Camera
1 x Built-in 5.8G 40ch 25mw-200mw VTX
2 x 1S 650mah Lipo Battery
1 x Propeller Disassemble Tool
1 x Screwdriver
1 x Happymodel Carry Case
