20*20mm MAMBA F405 MINI DJI F35 3-6S Flight Controller FPV Combo Stack for RC Drone - 69.00 €

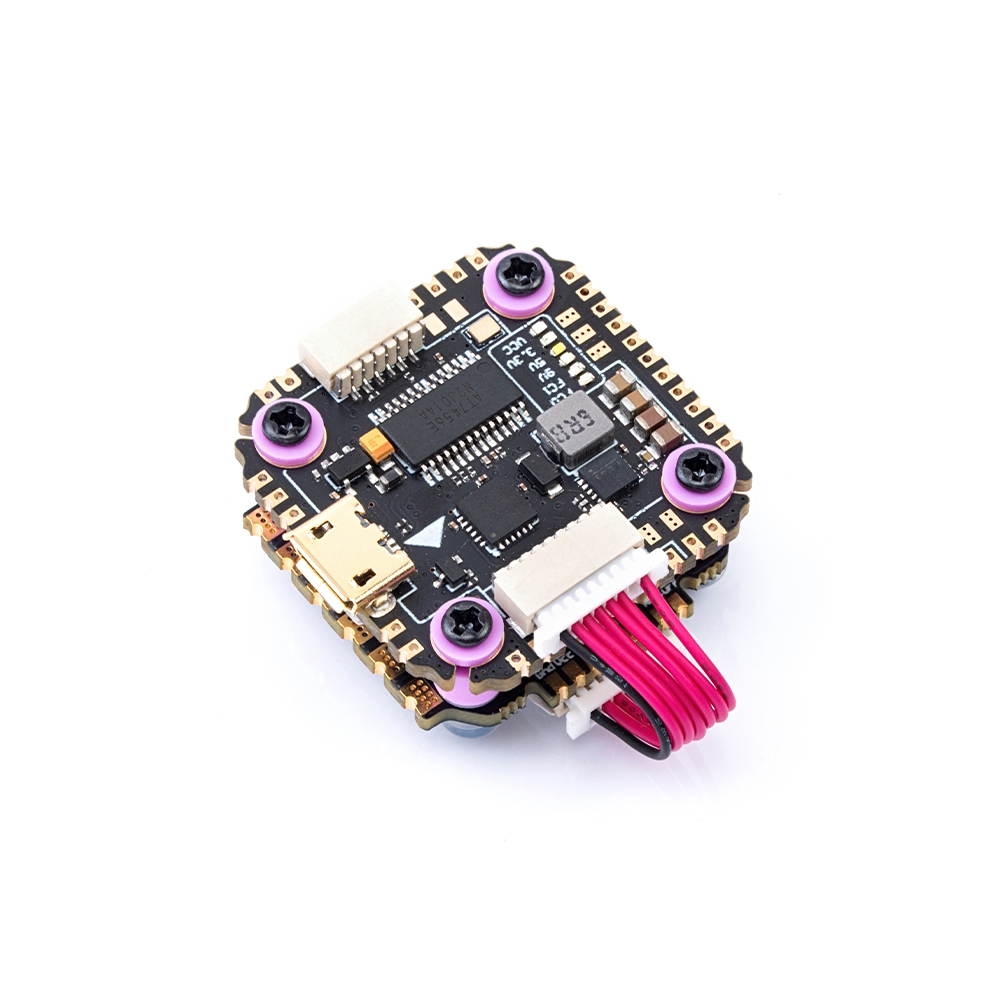

20*20mm MAMBA F405 MINI DJI F35 3-6S Flight Controller FPV Combo Stack for RC Drone
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

FIRMWARE TARGET ： MAMBA F405US

The Stack can fit both M2/M3 Mounting hole Framekit （Adaptor inside）

FC Specifications

MCU:STM32F405
IMU: MPU6000
Baro: No
OSD: BF OSD
Uarts: 6Set
ESC Soft: Dshot300/600/
LED: Blue&Orange for FC Status,, White 5V, Red 3.3V

WS2812 LED Control: BF LED Control
Smart audio: Yes

Input: 2~6S Lipo (8.4~25V)
VTS Protection: Yes

UARTS:6 Ports

DJI PORT SUPPORT
BEC: 5V 2A&9V 1.5A


FC Firmware
BetaFlight
Target: MAMBA F405US

Mounting: 20×20mm,Φ2
Dimensions: 30×36.5×13.5mm
Weight: 3.9g

Mamba F35 35A ESC
Item name: Mamba F35HV ESC
Input voltage: 3-6S LIPO (12.5- 25V)
Burst Curr :200A
MAX:45A(8S)
BEC: NO
Mounting Size: 20×20mm,⌀ 2
Mounting Hole: M2
Weight: 7g

Package Included:
1 x Mamba F405 Mini DJI Betaflight Flight Controller
1 x Mamba F35 35A 6SHV ESC
