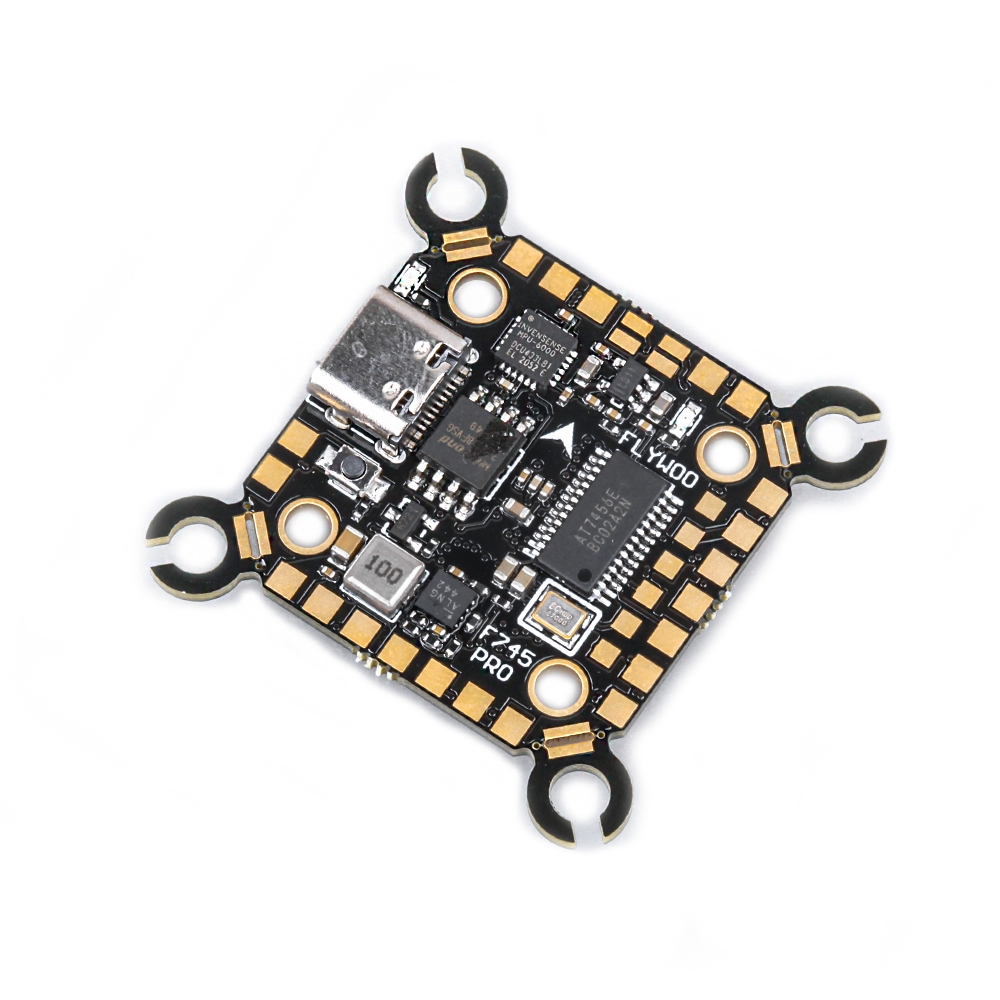

Introduction:
GOKU Versatile F745PRO FC is a versatile and powerful flight control equipped with the smallest but most powerful F745 BGA Chipsets instead of ordinary QFP (Big Size) MCUs. Perfect for any 20x20 30.5 x30.5 build . DJI Plug&Play plug and so many UARTs most people wouldn't even use em' all. Compatible to digital and analog FPV, onboard Barometer for possible long range flights and much more.
Highlights:
Perfect for any 20x20, 30.5 x 30.5 build . The cut part can be repaired by soldering
The FC has a super bid pad, very easy to solder everything
Including a barometer, blackbox, 7 complete hardware serial ports, I2C functionalityï¼Dual BEC 5V/9V
Universal USB Type C connector instead of micro USB
Support Betaflight INAV Autopilot
Description: ( Diagram Picture)
Brand: Flywoo
IModel: GOKU Versatile F745 PRO
tem Name: F7 2-6S Flight Controller Board
MCU: STM32F745BGA
GYRO: MPU6000
UARTS: 1/2/3/4/5/6/7
I2C: SCL/SDA
Barometer: BMP280
BEC: 5V 2A / 9V 2A
Blackbox: 8M
Input Voltage: 2-6S
Firmware: FLYWOOF745
Mounting: 20x20mm M3 / 30x30mm M4
ESC Soft: Dshot300/600/1200
ESC Telemetry: Yes
LED Controller: BF LED
F.Port: Yes
RSSI: Yes
Buzz: Yes
Input: 2~6S Lipo (8.4~25.2V)
TVS Protection: Yes
Package Included:
1x GOKU Versatile F745 PRO Flight Controller
2x Cable
8x Anti-Vibration Ball
