20x20mm F3 Nano Flytower Omnibus F3 OSD BEC Flight Controller & 28A BLheli_S DShot ESC for RC Drone - 47.00 €

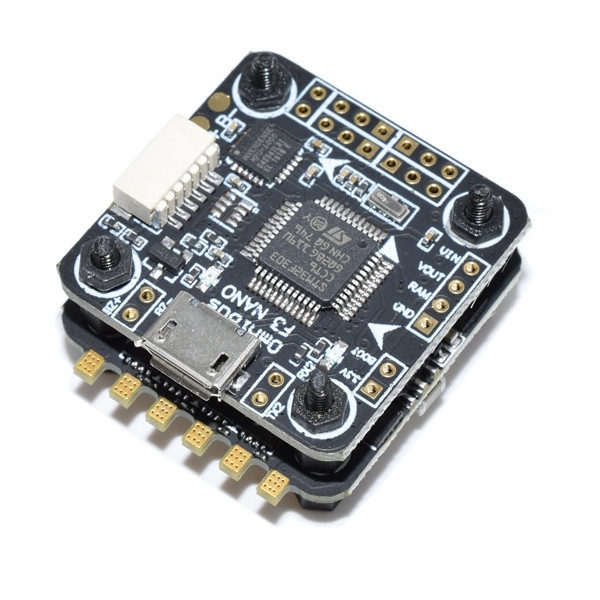

20x20mm F3 Nano Flytower Omnibus F3 OSD BEC Flight Controller & 28A BLheli_S DShot ESC for RC Drone










Specification:
Item Name: 20x20mm Flytower Omnibus F3 OSD BEC Flight Controller & 28A BL_S ESC

6Dof Omnibus F3 FC ( Top Level)
Item Name: Omnibus F3 Flight Controller AIO OSD BEC and LC Lilter
CPU: STM32F303CCT6
Sensor: MPU-6000 (connected by SPI)
Firmware: betaflight_3.X.X_OMNIBUS
- Built-in Betaflight OSD
- Built-in 5V 3A BEC
- Built-in LC Lilter, support DShot ESC
Input Voltage: 2-4S
Size: 27x27mm
Mounting Hole: 20x20mm ( M2.5)
Weight: 3.7g
- Support SBUS/IBUS/PPM/DSMX Receiver
- Support 3.3V Spektrum Satellite Receiver
Application: for ≦ 150mm Frame Kit

Features:
28A BLheli_S 4 In 1 ESC ( Bottom Level)
Con. Current: 28A ( Per )
Peak Current: 35A ( 5S)
Firmware: BLHELI_S
Input Voltage: 2-4S Lipo
BEC: NO
CPU: SILABS EFM8BB21F16G
MOS: AON7418
Size: 27x32mm ( Including Pad)
Mounting Hole: 20x20mm
Weight: 4.1g
- Support PWM, Multishot, Oneshot and DShot

Package Included:
1x 6Dof F3 Flight Controller
1x 28A BL_S 4 In 1 ESC
1x 1.0mm*6P Connection Cable
8x M2*5 Nylon Standoffs
4x Screw Nut
1x XT30 Connector Cable
