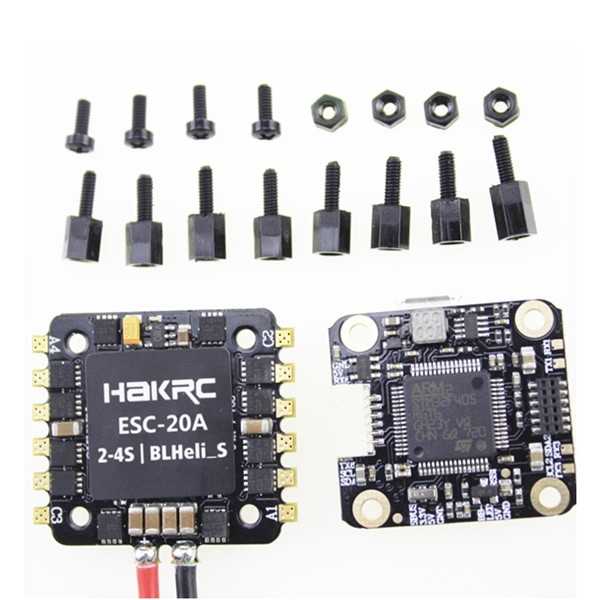

20x20mm HAKRC MiniF4 Flytower F4 Flight Controller AIO OSD BEC & 20A BLheli_S ESC for RC Drone



Specification:
Mini F4 Flight Controller ( Top Layer)
Item Name: STM32F405 F4 Flight Controller AIO OSD and BEC
Input Voltage: 2-4S Lipo
- Built-in Original Betaflight OSD
- With 5V@2A BEC Output
- Without Black Box
- Support BLHeliSuit setting
- Also support Cleanflight and INAC to falsh firmware
- Support PPM, SBUS (RX1), IBUS (RX6), DSM2 (RX6) Receiver
Firmware: BetaFlight 3.20 SD
Size: 27x25mm
Mounting Hole: 20x20mm
Net Weight: 3.3g

20A 4 In 1 BLheli_S ESC ( Bottom Layer)

Con. Current: 20A
Peak Current: 25A (5S)
BEC: No
Lipo : 2-4S
Programmer: Yes
Weight: 4.8g
Size: 27x31mm (PCB)
Installing Hole: 20x20mm

Package Included:
1x F4 Flight Controller Board
1x 20A 4 In 1 ESC
3x Cables
1x bag of Screws
