Specification:
Brand Name: CLRacing

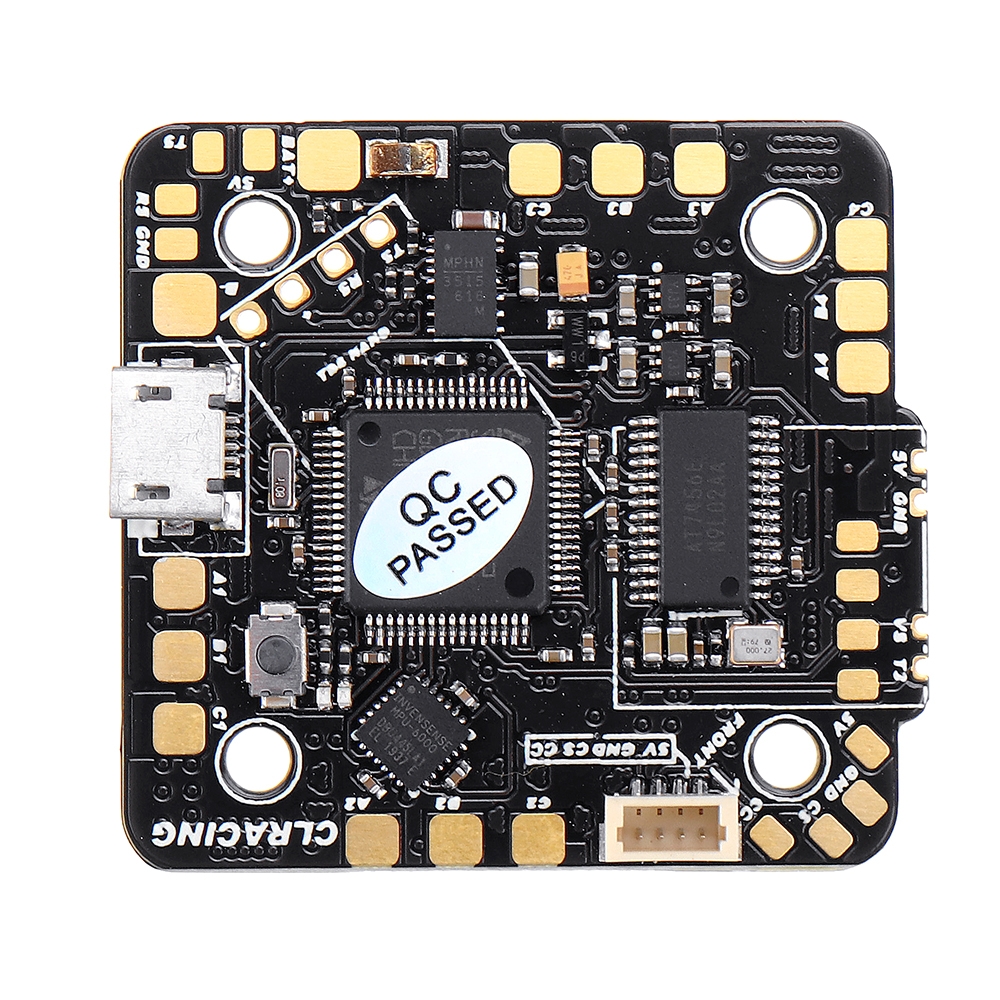

Item Name: F7 Flight Controller AIO 2OA BL_32 2-6S 4in1 ESC
MCU: STM32F722RET6 216MHz
6-Axis MPU6000
Build in Beta flight OSD
2- 6S( 27V ) direct battery power
Build in Voltage monitoring resistor
Build in 5V/1.5A BEC and 3.3V/250mA for system
Direct solder on mount for TBS Cross fire Or solder pads for Frsky
Build in Camera Control with direct camera plug in
Direct Solder TBS VTX and solder pads
Build_in 32bit 20A ESC with current sensor
25.5x25.5 whoop Styple mounting pattern
Dshot support with Native RPMfiltering support
Designed to use on 5V camera and VTX
Features:
STM32F722RET6 216MHz Processor
Direct solder TBS NANO RX mount
Direct solder TBS UNIFY Nano Pro32 mount
Up to 6S 27V direct power
BLheli_32 32bit ESC
Diagram Picture Instruction:
A: Motor 1 Wire Connection
B: Motor 2 Wire Connection
C: Motor 3 Wire Connection
D: Motor 4 Wire Connection
E: Camera Connection
F: VTX Connection
G: Battery+ and - Terminal
H: TBS Nano Receiver or Other Receivers
Package Included:
1x CLRACING F7 Whoop AIO Flight Controller ESC Board
1x Camera Harness
1x XT30 Connector
1x 16G Silicone wire set
1x 25V 220uF capacitor
1x M2 plastic mounting hardware set
