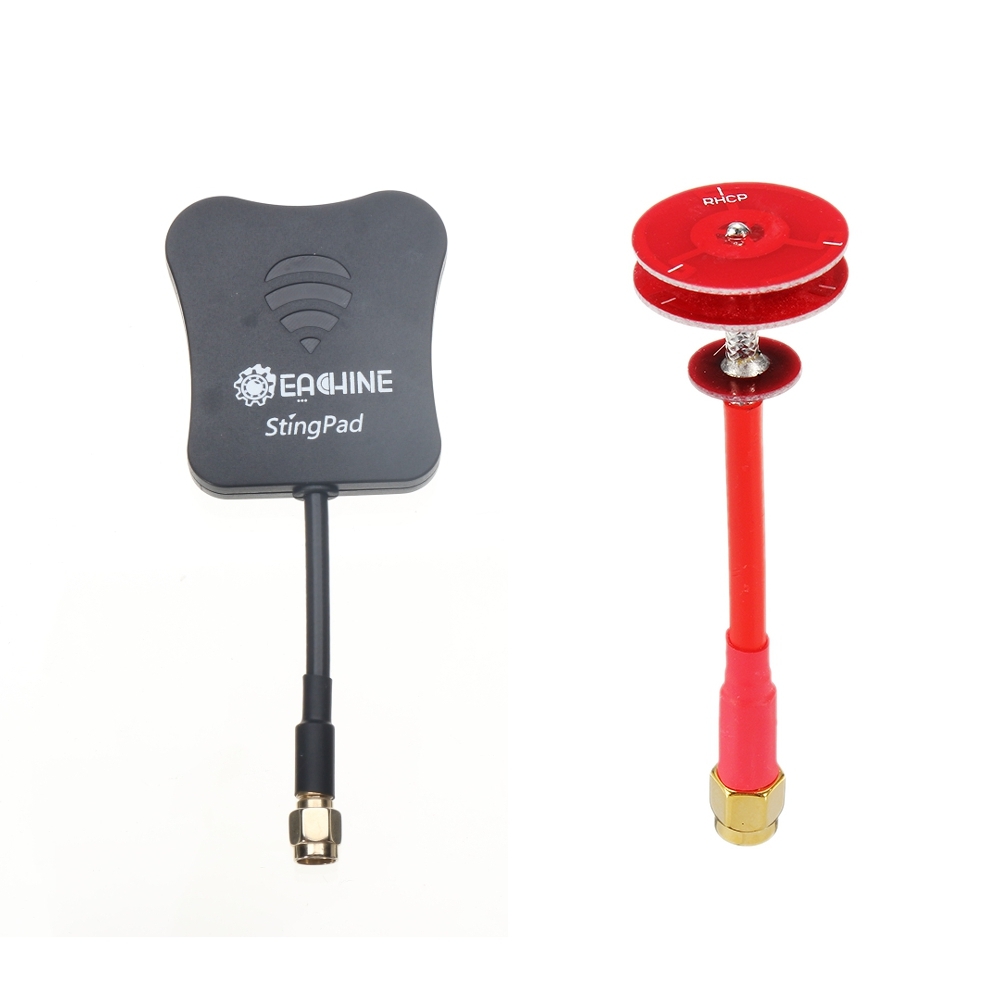

2PCS RP-SMA 5.8Ghz 16dBi StingPad Panel Antenna + 5dBi RHCP Pagoda Antenna Omni Directional FPV Antenna Set For FPV RC Racing Drone
Description
Brand Name : Eachine
Item Name : StingPad Antenna
Gain : 16dBi
VSWR : < 1.3:1 (5722 - 5945MHz)
Impedance : 50 ohms
Connector : RP-SMA
Radiation : directional
Beam width 42 degrees (H + V)
Brand Name : Realacc
Item Name : Omnidirectional Pagoda Antenna
Frequency : 5.8G
Impedance : 50Ω
VSWR : <1.5:1
Polarization : Circular Polarized
Radiation : Omni
Gain : 5dBi
Max. Power : 50w
Connector : RP-SMA
Color : Red
Weight : 8.6g
Length : 78±3mm
Max. Dia. : 22.4±1mm
Min. Dia. : 11.8±1mm
Features :
This 5.8GHz custom-designed panel antenna is especially for the FPV market.
With nice shaped cover to protect the antenna.
Small size panel but with 16dBi high gain.
100% tested on a professional antenna tester (HEWLETT PACKARD 8753D) to ensure maximum range and performance.
Precision manufactured with very tight tolerances.
Omni-directional, no dead corner
High gain, more stable.
Less flash, stonger siginal
Pacakge Included
1 x 5.8 Ghz 16dBi Pannel Antenna RP-SMA
1 x 5.8 Ghz 5dBi RHCP Antenna RP-SMA
