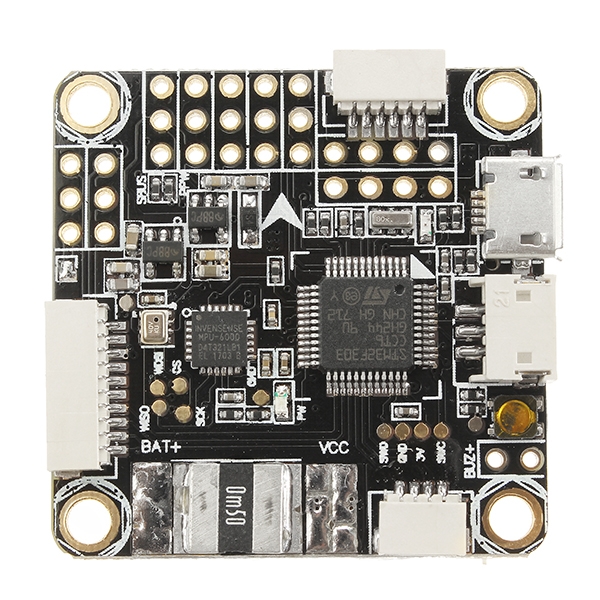

30.5*30.5mm Betaflight Omnibus STM32F3 F3 Pro Flight Controller Built-in OSD BEC Current sensor
Specification:
Item name: F3 flight controller
Lipo input: 2-6S
Size: 36x36mm
Mount holes: 30.5x30.5mm
STM32 F303 MCU, Runs Betaflight 3.0 firmware
SBUS/PPM input (Pinheaders)
8PWM output (1-4Pinheaders and Sh1.0 Plug, 5-6 as Pinheaders)
SPI Sensor MPU6000
5V3A SBEC
Pro Version uses SBEC which makes less heat than LDO version(The Normal version)
Features:
-A new generation AIO Flight control for FPV
-based on F303 MCU, using F3 MCU controls OSD over SPI bus in DMA mode
-OSD Configation has been incl. in Betaflight GUI
-Supports SD Card and LIPO direct input (2-6S)
-MPU6000 at SPI bus
-Build in Current sensor
-TDK power filter for VTX and Camera
Package included:
1* flight controller
