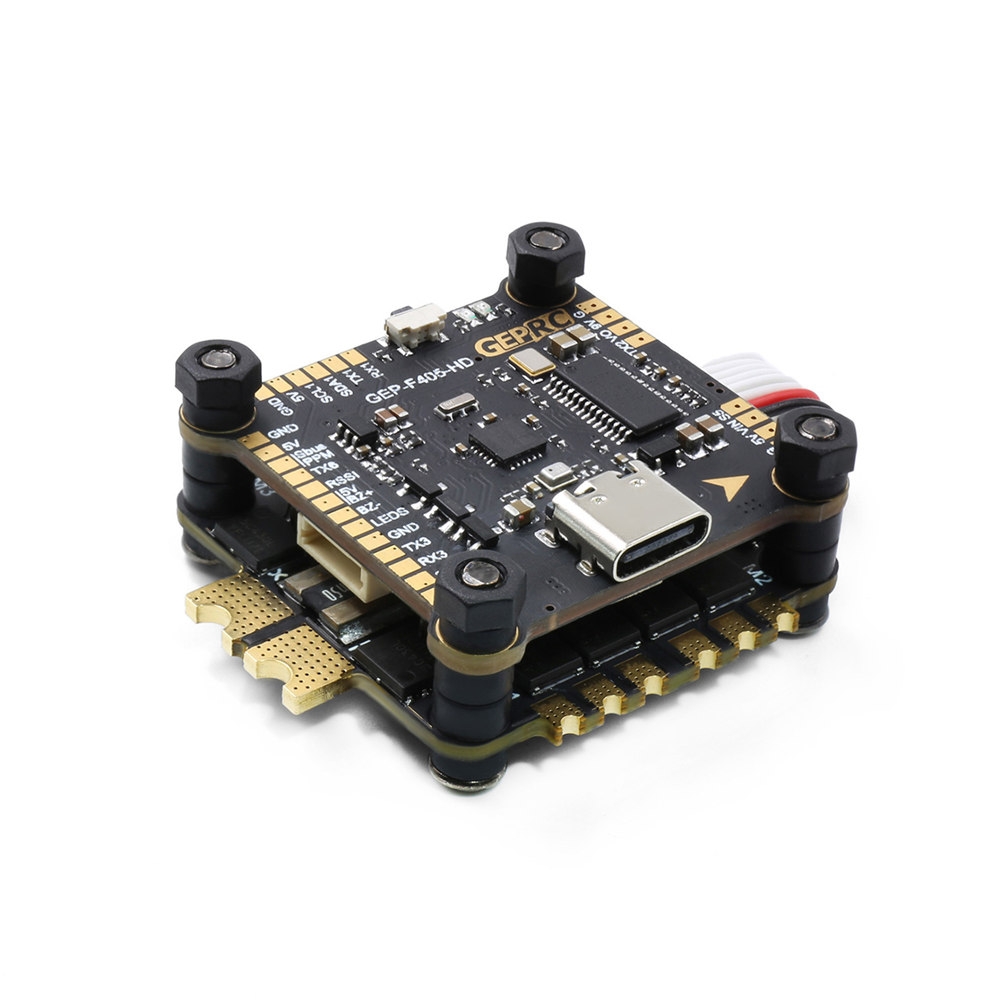

30.5x30.5mm Geprc Span F405 HD Stack F4 Flight Controller AIO OSD BEC & 50A BL_32 3-6S 4in1 ESC Built-in Current Sensor for DJI Air Unit RC Drone FPV Racing - 88.00 €


30.5x30.5mm Geprc Span F405 HD Stack F4 Flight Controller AIO OSD BEC & 50A BL_32 3-6S 4in1 ESC Built-in Current Sensor for DJI Air Unit RC Drone FPV Racing
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Specification: ( Manual)

Brand Name: Geprc

Model: SPAN F405 HD Stack

Item Name: F4 Flight Controller & 50A BL_32 4in1 ESC Stack

Size: 36x36mm

Mounting Hole: 30.5x30.5mm


F405 Flight Controller ( Click Here to buy Separate Replace FC)

MCU: STM32F405

IMU: MPU6000(SPI)

DJI FPV Air Unit Supported. ( Cable connected directly)

BlackBox: 16Mb onboard Flash

Type-C USB interface

OSD: BetaFlight OSD w/ AT7456E chip

Baro: BMP280

BEC Output: 5V & 9V BEC

Integrated LC Filter

Firmware target: GEPRCF405

Size: 36x36mm board, φ4mm with Grommets φ3mm

Power input: 3-6S LiPo

6x UART

Support Frsky XM/XM+/R-XSR; DSM/DSMX; FlySky Receiver; TBS Receiver; Fubata Receiver, AC900 Receiver


50A BL_32 3-6S 4in1 ESC ( Click Here to buy Separate Replace FC)

Input Voltage: 3-6S Lipo

MCU: STM32FO51K86(32bit 48mHz)

Continuous Current: 50A

Burst Current: 55A (5S)

Current sensor: YES

Telemetry: Supported

Support DSHOT1200/DSHOT600, PWM, Multishot, OneShot

Firmware Version: GEPRC-BL32-4IN1


Features:

- It is a plug-and-play flight controller with F405 chip and a tower flight system with BL_32 50A 4in1 32bit electrical modulation.

- It integrates 16Mb black box, MPU6000 gyroscope and barometer for a more delicate hand experience.

- Supports direct insertion into DJI Digital FPV System, which can avoid the trouble of welding.

- Upgrade the USB interface of Type-C, greatly improve the life of the socket and reduce the risk of bad contact.

- Supports all kinds of receivers, including Sbus,PPM,CRSF,DSMX,iBus, DUMD and so on.

Package Included:

1x GEP-F405-HD Flight Controller

1x GEPRC G50A ESC

1x 35V 470uf Capacitor

4x Silicon grommets M4 to M3

4x M3*22mm Screw

4x M3*30mm Screw

1x XT60 Power Cable

1x ESC Cable

1x Cable for Connecting to DJI Module
