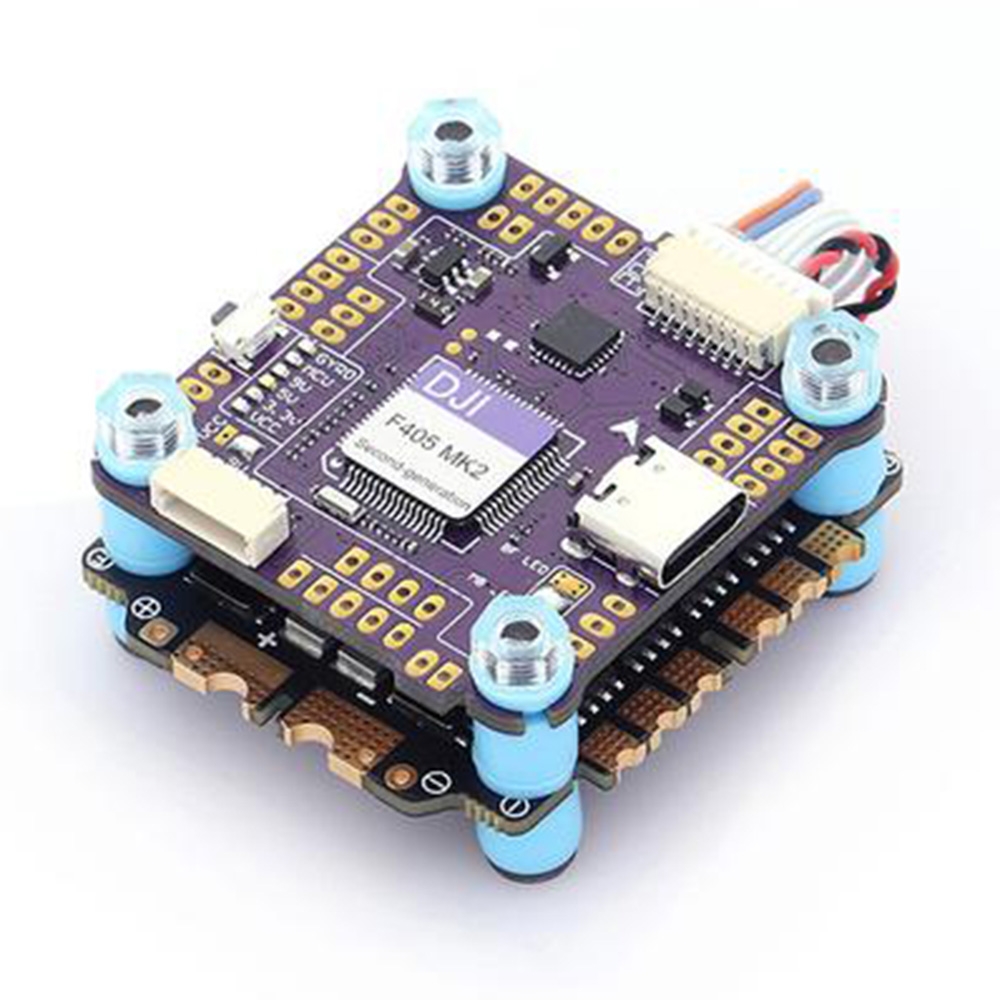

30.5x30.5mm MAMBA DJI F405 MK2 Flight Controller F40_BLS 40A Blheli_S 6S Brushless ESC compatible DJI FPV System for RC Drone FPV Racing - 66.00 €

30.5x30.5mm MAMBA DJI F405 MK2 Flight Controller F40_BLS 40A Blheli_S 6S Brushless ESC compatible DJI FPV System for RC Drone FPV Racing
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Description:

Brand: MAMBA

Item Name: MAMBA DJI F405 MK2 FC MAMBA F40_BLS Stack

Weight: 9.5g

Mounting size: 30.5mm/M3

Size: 38x40x7.5mm

DJI F405 MK2
MCU: 168MHz STM32F405RGT6
IMU: MPU6000
Barometer: Yes
OSD: Yes
Blackbox: 16M Flash Memory
Uarts: 6Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: Yes
Power Led: Yes
LED Controller:BF LED/MB LED（ 4 Set 2812 LED）
F.Port: Yes
RSSI: Yes
Buzz: Yes
Input: 3~6S Lipo (12.6~25.2V)
TVS Protection: Yes
BEC:3.3V 0.5A& 5V 3A &（DJI） 9V 3A
MOUNTING: 30.5mm, M3
F40_BLS
INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
CONTINUE CURRENT: 40A×4
BURST CURRENT: 50A (10S)
BEC: No
Target：BLHeli_S CH40
SOFT: Dshot300/600
TVS Protection: Yes
MOUNTING: 30.5mm/M3


Package Included:

1 x MAMBA DJI F405MK2 Flight Controller
1 x MAMBA F40_BLS Brushless ESC
1 x High Frequency 470uF/35V
2 x 8pin sh1.0
2 x 12AWG 100mm
1 x AMASS Original XT60
