Introduction:

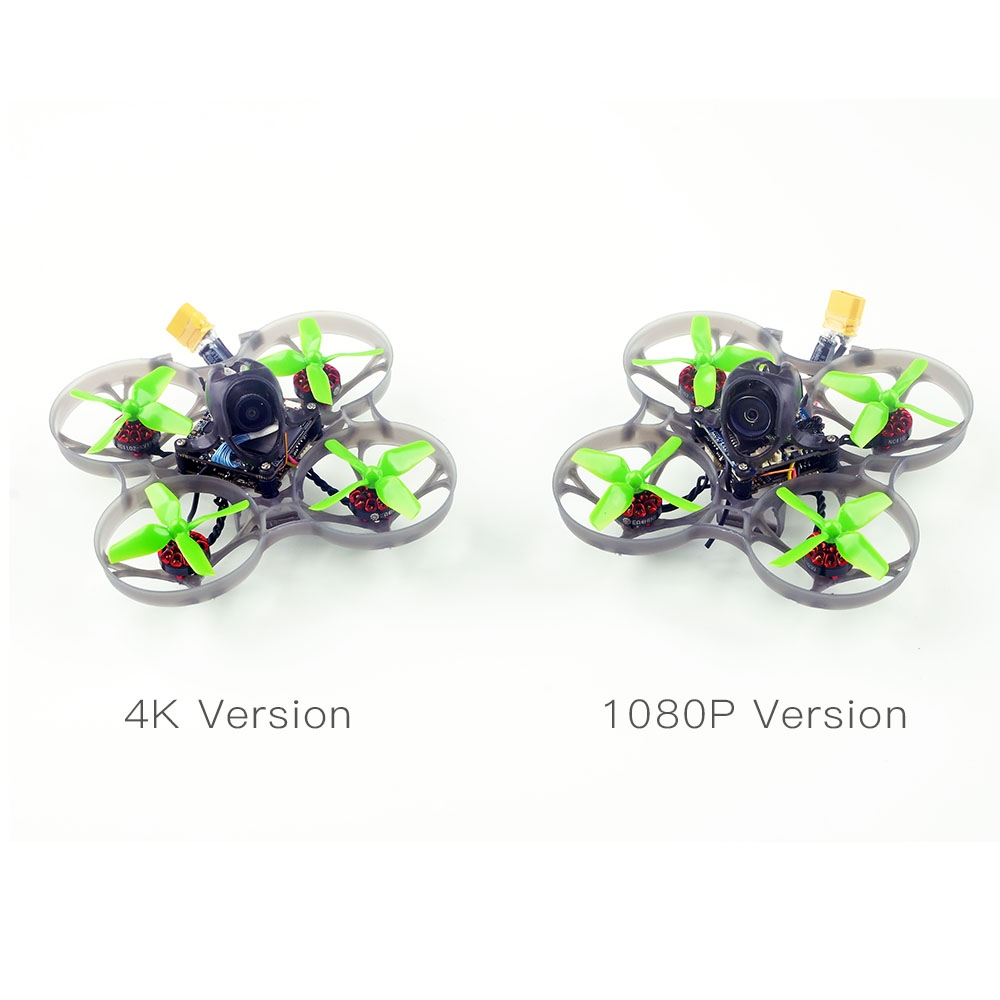

The lightest 4K Cinewhoop in the World. Provide 1080P / 4K Camera for your option.
Comes with new CRAZYBEEX FR V2.2 F4 FC, support Betaflight OSD, easy to get RSSI, Voltage ,current from your goggles.
Cinefun,more smooth,more stable,and more powerful. Eachine wish you have fun!
Specification:
Brand Name: Eachine
Model: Cinefun
Item Name: 75mm 1S F4 1080P / 4K Whoop FPV Racing Drone
Wheelbase: 75mm
Size: 97mm*97mm*51mm
Weight: 39g for 4k camera version (without battery);
37g for 1080p camera version (without battery)
Weight: 54.5g (with Original 1s 650mah Lipo battery )
Flight Time: 5 mins ( take example as original lipo battery)
| 1102 19000KV Motor | Model: NC1102 KV: 19000KV No.of Cells(Lipo): 1S only |
| F4 OSD Flight Controller | (Frsky SPI RX version) CRAZYBEEX FR V2.2 FC Firmware target: CrazybeeF4FR (Flysky SPI RX version) CRAZYBEEX FS V2.2 FC Firmware target: CrazybeeF4FS (External TBS CRSF NANO version) CRAZYBEEX PNP V2.2 Firmware target:CrazybeeF4DX MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Power supply: 1-2S battery input (DC 2.9V-8.7V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5.8G VTX Built-in SPI Frsky/Flysky receiver or no receiver Built-in 5V 1A BEC |
| Onboard 5A 4in1 ESC | MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HV Current: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: S_H_50_REV16_8.HEX Default protocol: DSHOT600 |
| Onboard 5.8G 40CH 25/200mW VTX | Output power: 25mw~200mw switchable Input voltage: 3.3V 5.5V |
| Onboard Frsky Receiver Version | SPI BUS receiver Frsky D8 compatible Compatible Non EU transmitter D8 model |
| Onboard Flysky Receiver Version | SPI BUS receiver |
| External TBS CRSF Nano RX Version | Original TBS CROSSFIRE Receiver ,CRSF Protocol , Official TBS transmitter compatible |
| Runcam Split3-Lite 1080P Camera Version | Field of View(FOV):Recording FOV 165°(FPV FOV: 165 ° @16:9, 130 ° @4:3) Video Resolution:1080@60fps/1080@50fps/1080@30fps/720@60fps Video File Format: MOV Image Resolution:2 MP TV Mode: NTSC (720*480)/PAL (720*576) Switchable Interface: JST 1.25mm / UART and SH 1.0mm Max Micro SD Card Supported 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III) Hole Distance of Installation: 25.5*25.5mm PCB Size: 29*29mm Lens Module Size: 14*14mm Lens Specs: M9 Power Input: DC 5-20V(Non-direct power supply from battery. Powered directly with battery will generate surges and burn the camera.) |
| CADDX Loris 4K Camera Version | Color: Black, Silver (randomly) Image Sensor: 1/2.7'' CMOS Sensor Hirizontal Resolution: 800TVL Video Resolution: 1080P/60fps, 1080P/120fps, 2.7K/60fps, 4K/30fps, 4K/60fps (Real 3.5K/60fps) FPV/Recording FOV: 165° Lens: 1.8mm FPV Latency: 40ms TV System: NTSV & PAL (changeable) Audio: Digital MIC WDR: DWDR Fly OSD: Yes Video Files: MP4 Electronic Shutter: PAL: 1/50~100000; NTSC: 1/60~100000 DNR: 3DNR Video Output: CVBS Memory Card: Max. Support 128G Work Temperature: -20â ~ +60â Weight: 10g Dimensions: DVR Board: 29*29mm / Camera: 14*14mm (can be extended into 19*19mm) |
| 1S 650mAh Lipo Battery | Brand Name: GNB Voltage: 1S 3.8V Capacity: 650mAh Continuous Discharge Rate: 30C Connector: XT30 Quantity: 4 PCS |
Features:
- Super Light 4K CineWhoop
- Powerful and smoothly
- Caddx Loris 4K Camera & DVR ready
- Runcam Split3-lite 1080P Camera & DVR ready
- Camera Angle adjustable
- VTX power switchable 25mw~200mw
- Comes with 4 PCS Lipo Battery
TBS Crossfire Receiver Version Manual
Package Included:
1x Cinefun 1S 75mm FPV Racing Drone4x HQPROP 1.6x1.6 4-Blade Propeller CW
4x HQPROP 1.6x1.6 4-Blade Propeller CCW
4x 1S 650mAh Lipo Battery
1x Screwdriver
1x Propeller Disassemble Tool
1x USB Charger ( Switch toward USB Port Side: 4.35V; toward connector plug port side: 4.2V)
