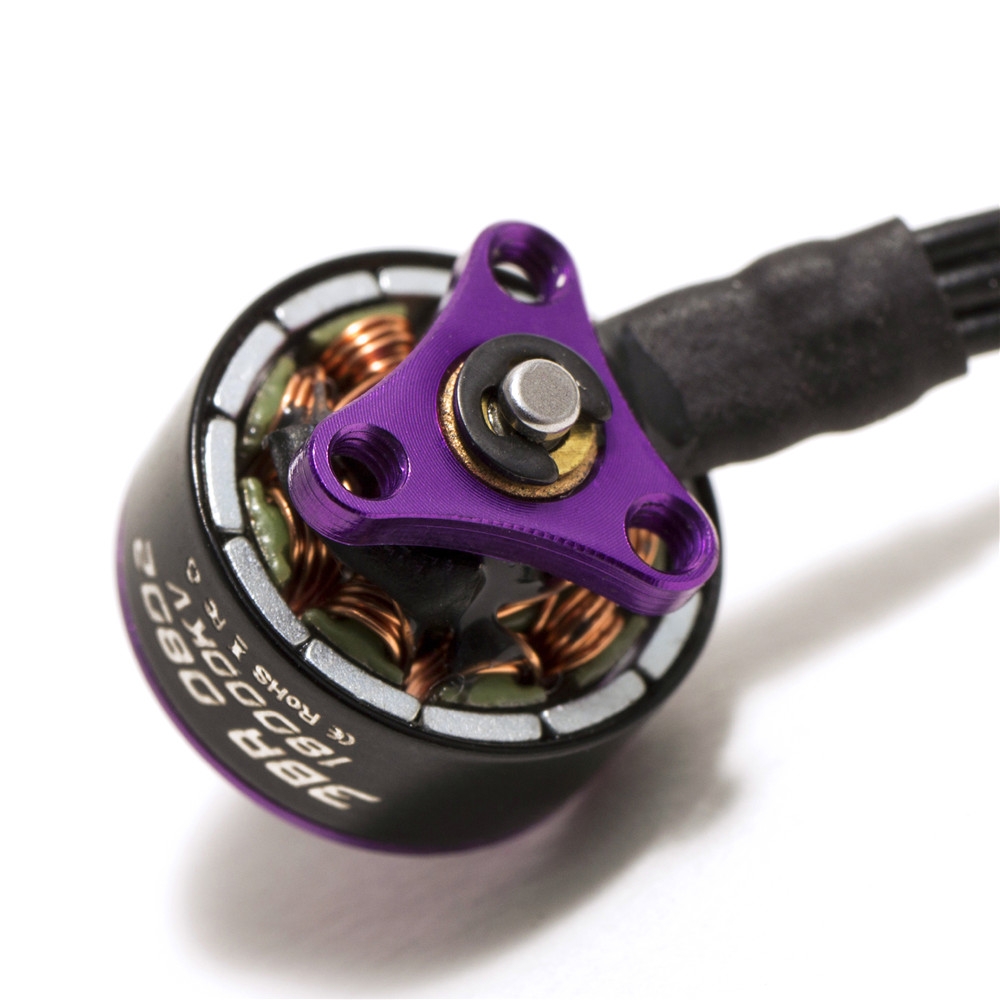

3BHOBBY 0802 KV12000/13500/18000 1-2S Brushless Motor for RC Drone - 10.00 €


3BHOBBY 0802 KV12000/13500/18000 1-2S Brushless Motor for RC Drone
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Specifications:
Brand Name: 3BHOBBY
KV: 12000/13500/18000KV
No.of Cells(Lipo): 1S-2S
Stator Diameter: 8.4mm
Stator Height: 2mm
Shaft Diameter: 1mm
Motor Dimension (Dia.*Len): Φ10.7×13.6mm
Weight(g): 1.7g(Excluding Cable)
Wire Szie: 30AWG 30mm (3 PIN,1.25mm)
Suggested Propeller:1.2-1.5’’
Recommend ESC: 5-6A
Frame Size: 65-80mm

Features:
1. We’re the pio neer of choosing NSK 681 ball bearing for such tiny motors. Compare to traditional oil-impregnated bearing, the smoothness and durability is superior. Also came with less noise.
2. Integrated magnet lining, less gap and stronger magnetic field was created in a limited tiny surface.
3. Equipped with high grade stainless steel shaft, ensured durability.
4. Quality 0.2mm Kawa saki Silicon steel stator, less iron loss and better cooling performance.
5. Lighter design, single motor weighs 1.7g only yet brings satisfied thrust and efficiency.
6. Suggested for 65-80mm frame size.

Package Include:
1 X 0802 Motor
5 X M1.4*3 Round head cross SUS screws
