4X EMAX LS2206 Lite Spec 2206 2300KV 3-5S CW Thread Brushless Motor for FPV Racing Drone
Specification:
Brand name: Emax
Item name: LS2206 Lite Spec
Framework: 12N14P
No.of cells: 3-5S
KV: 2300
Max.thrust: 1135g(on 4S)

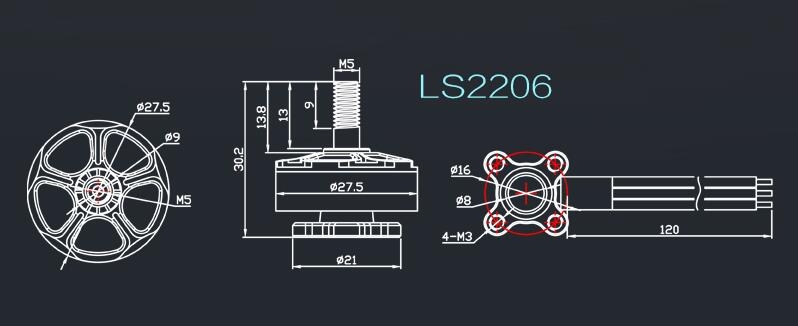

Length: 30.2MM
Prop adapter shaft thread: M5
Diameter: 27.5MM
Propeller: 5-6 inch
Weight: 28g (W/O Silicone Wire)
Feature:
NSK high efficiency bearings
0.15mm silicon steel laminations
Aluminum shaft with hardened steel core
1.8mm N48SH ARC Magnets
Screw capture for bell. Easy to service
Stealth black anodized color, with silver beveled edges
Reduced base size. Lower the weight and easier to make sure not to short your wires with long screws.
16mm x 16mm mounting holes ( 19x16 is the past) future frames don’t need to have slotted mounting holes.
120mm 18AWG wire. Testing has shown a 5% increase in performance with thicker gauged wire. Compared from 20AWG wire.
New bell design with upper and lower beam support to reduce damage from collapse of impacts.
Package Included:
4 x 2300KV motor
