5.8G 40CH 25mw 600mw Adjustable Audio Video AV Transmitterv RX5840 Receiver FPV TX RX

Description:

Transmitter:

Wattage:25mw -600mw/27dbm (adjustable)

Voltage: DC 6V-30V (2s-6s)

Current: 280mA@12V

Frequency: 5.645GHz - 5.917GHz

Size: 22*28mm

Weight: 7g

Antenna : RP-SMA (not included)

Battery: 2s-6s DC

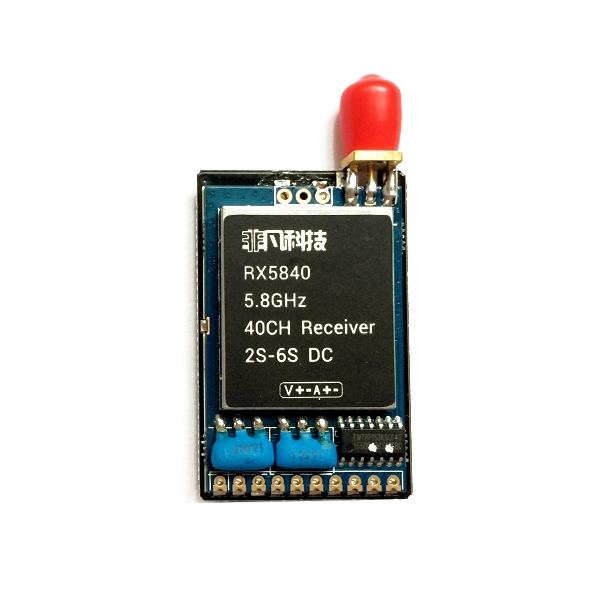

RX5840 Receiver:

Voltage: DC 6V-30V (2s-6s)

Current: 110mA@12V

Frequency: 5.645GHz - 5.917GHz

Size: 28*44mm

Weight: 11g

Antenna : RP-SMA (not included)

Battery: 2s-6s DC

Operation

Short press the key for 1 seconds to enter channel setting mode, short press the key to switch 1 to 8

Long press the key for 1.5 seconds to enter channel group setting mode, short press the key to switch channel group from a to e.
Long press the button till it displays "P" , and short perss the button to switch the power.

Frequency:
A1: 5.645G B1: 5.740G C1: 5.725G D1: 5.733G E1: 5.658G A2: 5.665G B2: 5.760G C2: 5.745G D2: 5.752G E2: 5.695G A3: 5.685G B3: 5.780G C3: 5.765G D3: 5.771G E3: 5.732G A4: 5.705G B4: 5.800G C4: 5.785G D4: 5.790G E4: 5.769G A5: 5.885G B5: 5.820G C5: 5.805G D5: 5.809G E5: 5.806G A6: 5.905G B6: 5.840G C6: 5.825G D6: 5.828G E6: 5.843G A7: 5.925G B7: 5.860G C7: 5.845G D7: 5.847G E7: 5.880G A8: 5.945G B8: 5.880G C8: 5.865G D8: 5.866G E8: 5.917G

Package included:(not a combo, just one module)

1 x Transmitter or Receiver(select the TX or RX before you make the order)
