5pcs 50Ω Golden SMA-KWE to RP-SMA Female RF Connector Adapter Straight for RC Drone - 3.00 €

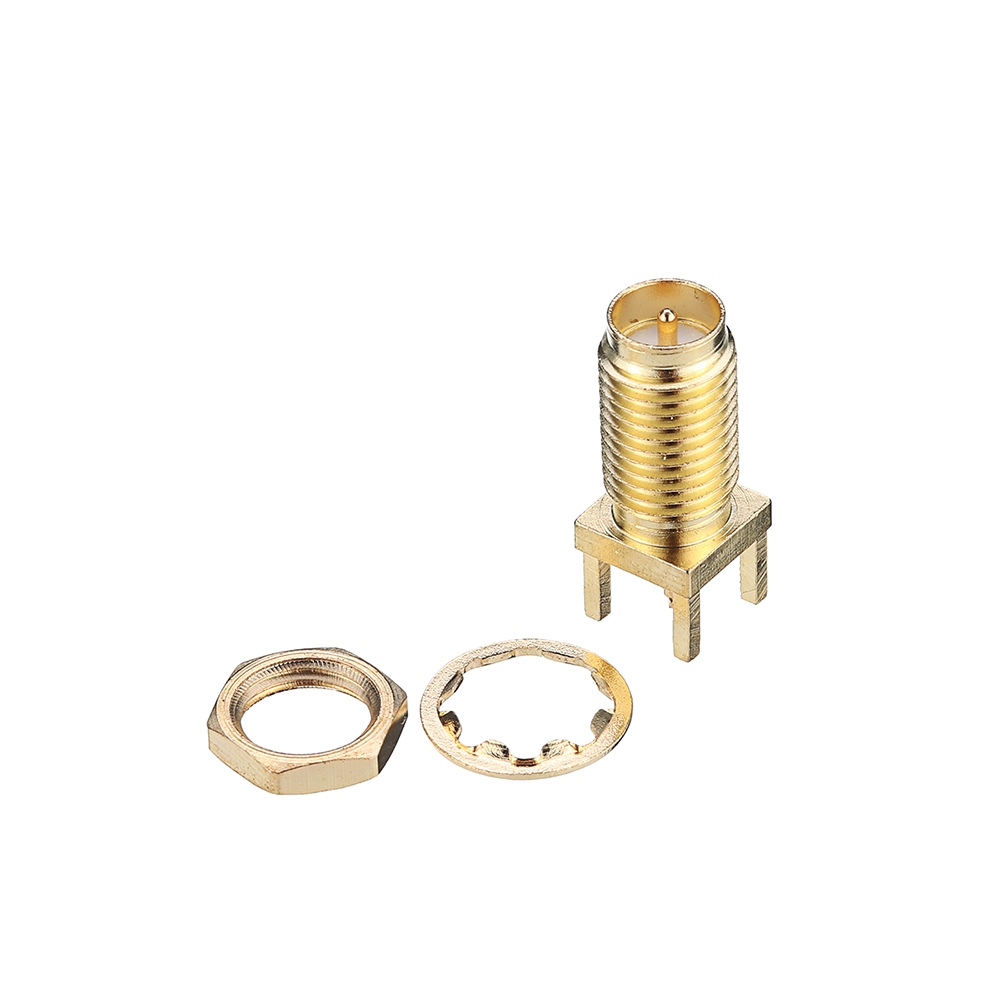

5pcs 50Ω Golden SMA-KWE to RP-SMA Female RF Connector Adapter Straight for RC Drone
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Description:
Item name: RF Connector adapter
Total length 16.5MM
Tooth length 11MM
Temperature range: -65 to +165 °C (PE Cable -40 to +85 °C)
Vibration: MIL-STD-202, Method 213
Characteristic impedance: 50Ω
Frequency range: DC ~ 12.4GHz (semi-rigid cable 0 ~ 18GHz)
Operating voltage: 335V max (effective value)
Withstand voltage: 1000V rms (minimum sea level)
Contact resistance:
inner conductors≤ 3 mΩ
outer conductors≤ 2 mΩ
Insulation resistance ≥ 5000MΩ
Insertion loss: ≤0.15 dB/6GHz
Voltage standing wave ratio straight flexible cable: ≤1.10+0.002f
Semi-rigid cable: ≤1.05+0.001f
Curved flexible cable: ≤1.20+0.003f
Semi-rigid cable: ≤1.10+0.001f
Durability: ≥500 cycles

Package Included:
5x RP-SMA Female RF Connector adapter
