6 PCS GXservo GX3225MG 25KG Servo High Torque Digital Steering Metal Gear Servo
â for DIY Robot RC Car Airplane
â for DIY Robot RC Car Airplane
Specification
Control system: PWM control system
Working angle: 90 '+ 5 â
Temperature range: -20 degrees Celsius to + 60 degrees Celsius
Direction: counterclockwise pulse 1500 To 2500 USEC
Voltage range: 6.0V ~ 7.4V
Driving method: Field effect quality tube driving
Test voltage: AT 6.0V / AT 7.4V
Motor type: Iron core strong magnetic carbon brush motor 1723
Torque: 22KG.CM/25KG.CM
Potentiometer: Indirect transmission
Speed: 0.18S / 60 degrees , 0.16S / 60 degrees
Amplifier Type: Digital
No-load current: 300MA / 450MA

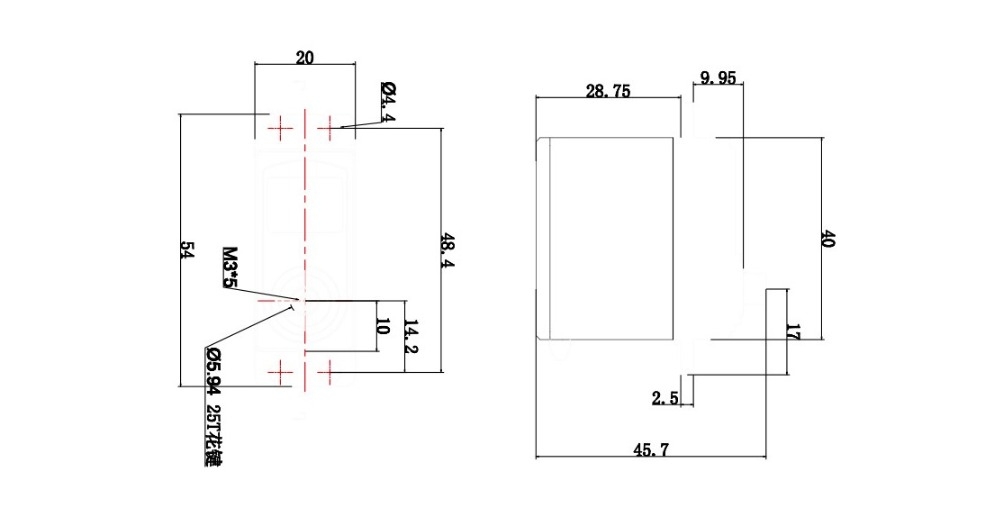

Size: 40 * 20 * 39MM
Load current: 2300MA / 2900MA
Weight: 60G (without accessories)
Dead band width: 2 microseconds
Ball bearings: double ball bearings
Cycle: >15,000 times
Gear material: imported copper steel material
Note:
(1) Under the static working current, Shengyu servo is energized, but there is no movement.
(2) In the case of no-load current operation, Shengyu servos move under no-load conditions.
(3) The current of Shengyu servo when outputting the maximum torque under the condition of locked rotor current
(4) The baud rate can be modified to 500K, 250K, 128000, 115200, 76800, 57600, 38400
(5) The maximum number of available bus nodes depends on the power supply capacity and the allowable current specifications of the cable.
(6) The stall torque is the maximum stall torque of the steering gear. The actual working torque is selected from 1 / 3- -1/5 of this value as suitable for the operating point.
Package Included
6 x Servo
