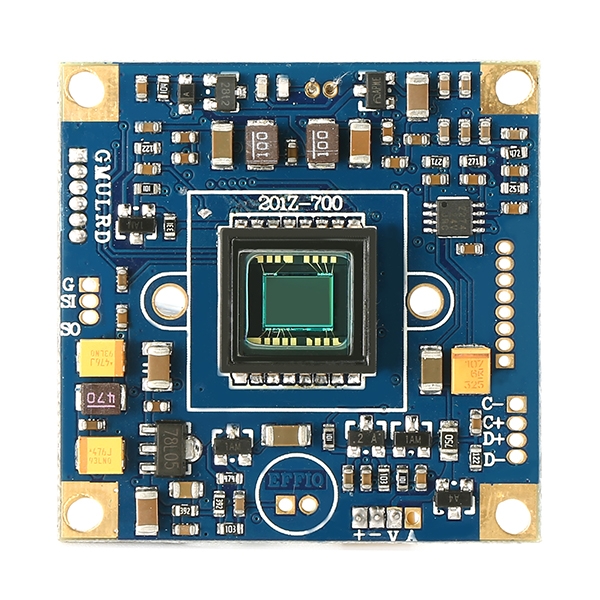

700TVL 1/3 CCD FPV Camere Main Board EFFIO 4140 Chip
Specification:
Sensor: 1/3 "SONY CCD 700TVL
Veneer: 0.01LUX
Color to black (D / N), sense infrared, bolt can be installed, which can be accessed audio (optional), DC12V, 85mA.
Pixels: PAL: 512H × 582V NTSC: 512H × 492V
Signal System: PAL / NTSC
Resolution (horizontal center): 700TVL
Minimum illumination: 0.01LUX / F1.2
SNR: ≥48dB
Video Output: 1.0Vp-p / 75Ω
AGC: Auto / Manual
White Balance: Auto Tracking
Backlight Compensation: Auto / Manual
Exposure mode: Electronic exposure
Electronic Shutter: 1/50 (1/60) - 100000 seconds
Gamma Correction: 0.45
Synchronization: Internal synchronization
Lens: 3.6mm / 4mm / 6mm / 8mm / 12mm (optional)
Audio: without (optional)
Size: 38X38 mm
Package Included:
1 X Camera board
