Specification:
Brand name: AGFRC
Item name: ARX-472 receiver
Operating Voltage: 3.5V~8.4V
Dimension: 35.5×23.3×13.2mm
Weight: 7.3g
No. Of Channels: 4CH
PWM Mode: Normal/ SHR/ SSR
Compatibility:
Compatible with FH3/FH4T remote control system.
Suitable for remote control M12, M11X, EXZES X, MT-4,GEMINI X,MT-S, MT-4S, M12S ,M17.
Features:
1) Bidirectional communication system, monitor the receiver voltage by transmitter in real time;
2) Compatible stabilizing voltage, operating voltage can up to 1-2s lipo, sudden low voltage won't be out of control;
3) High sensitivity receiver, full 4CH output + BAT port suitable for all kinds of remote control cars, simulation rock crawlers.
Bind Procedure:
1) Turn on the transmitter, get to the SYSTEM menu and select BIND;
2) Connect battery to the receiver while pressing receiver's F/S button SET, the LED on the receiver will flash slowly. Press and hold the F/S button for 2 seconds then release, the LED on the receiver will keep flashing slowly;
3) Select BIND menu in the transmitter and press ENTER while the LED on the receiver is flashing slowly. The LED will be off immediately.
4) Press ENTER again on the transmitter, the LED will be solid, indicating binding process is successful;
5) Please repeat the above procedure if binding is failed.

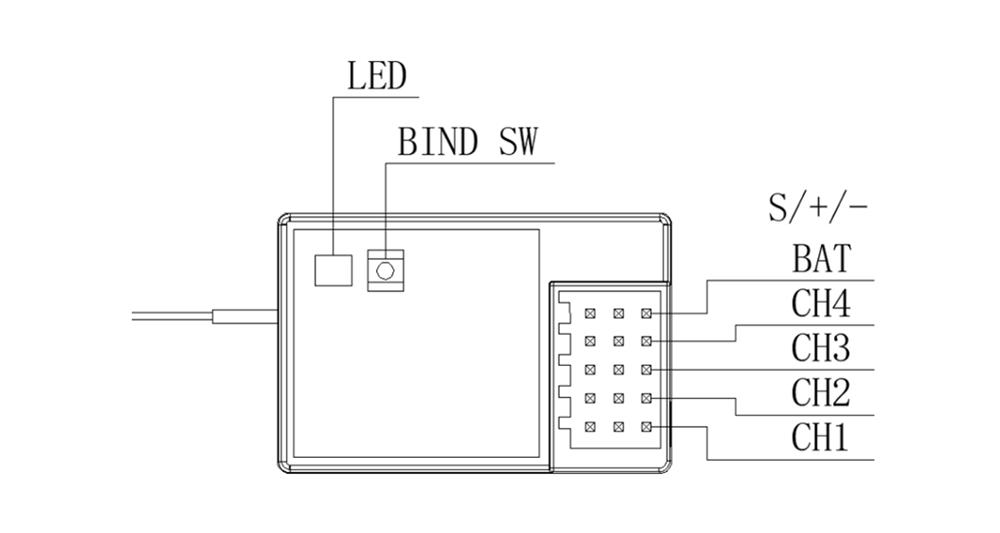

LED status:
| Blue LED | Status |
| Solid | Receiving signal |
| Blink | Binding mode |
| Off | No signal reception |
Package included:
1x ARX-472 receiver
