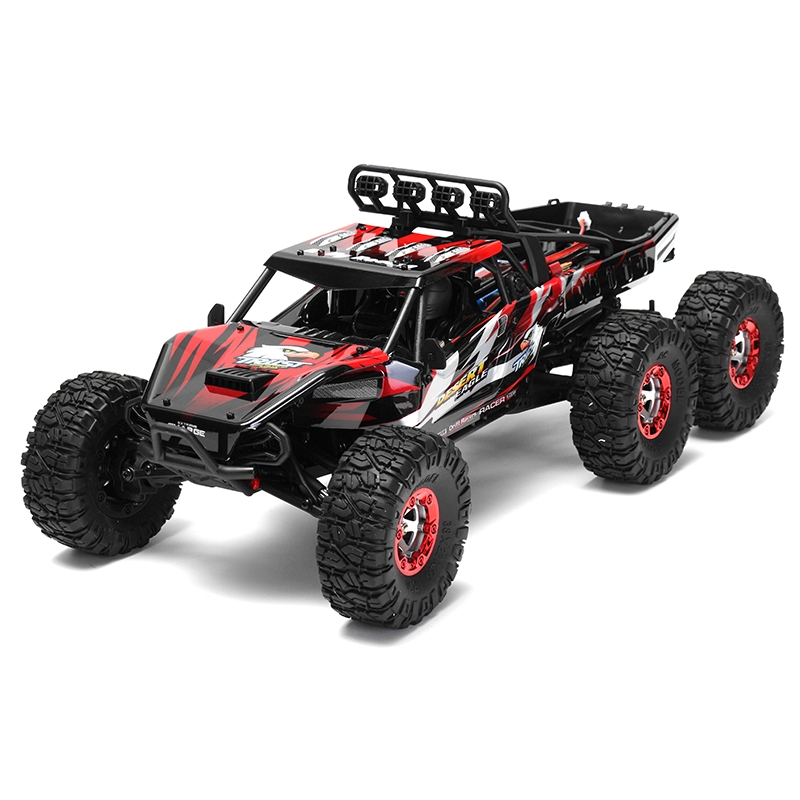

1/12 Alloy Metal RC Car with Two Rechargeable Batteries 4WD 2.4G Off Road Big Foot Crawler RC Vehicle Models 1/12 Alloy Metal RC Car with Two Rechargeable Batteries 4WD 2.4G Off Road Big Foot Crawler RC Vehicle Models
MANGORC No.29 210mm 3K Carbon Fiber Frame Kit with CNC Aluminum Alloy Body MANGORC No.29 210mm 3K Carbon Fiber Frame Kit with CNC Aluminum Alloy Body
Multifunktionsmonterad Adatper 1/4 tum + Mini Plaststativ + Förlängningsstav för DJI OSMO Pocket GoPro Tillbehör Multifunktionsmonterad Adatper 1/4 tum + Mini Plaststativ + Förlängningsstav för DJI OSMO Pocket GoPro Tillbehör
SKYSTARS TA LON X110 2 Inch 2-4S FPV Racing RC Drone PNP/BNF Type F4 8K OSD Runcam Nano 2 100mW VTX Smart Audio SKYSTARS TA LON X110 2 Inch 2-4S FPV Racing RC Drone PNP/BNF Type F4 8K OSD Runcam Nano 2 100mW VTX Smart Audio

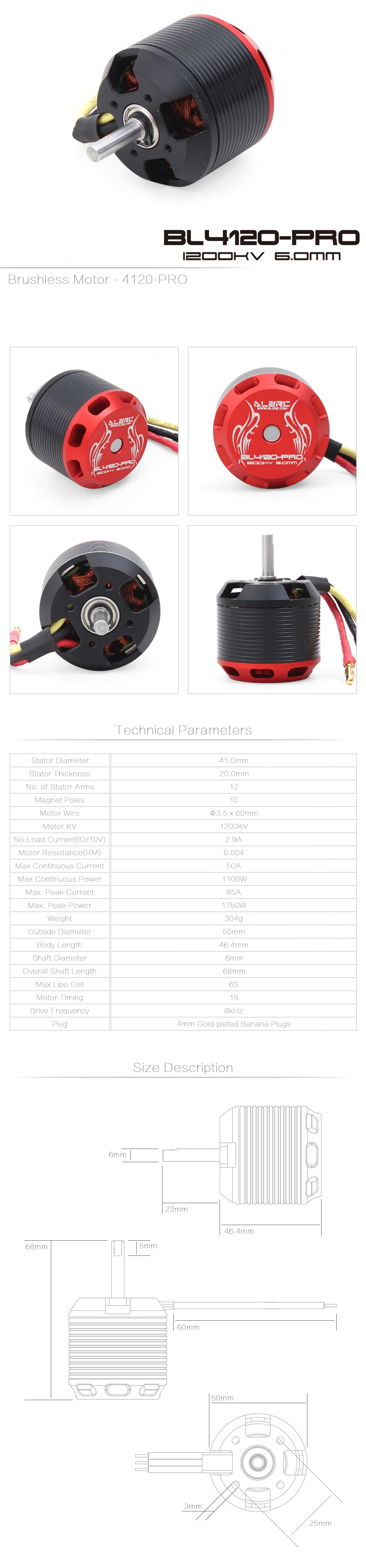

ALZRC 505 RC Helicopter Parts 1200KV Brushless Motor - 96.99 €

ALZRC 505 RC Helicopter Parts 1200KV Brushless Motor
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Specification:
- Stator Diameter: 41.0mm
- Stator Thickness: 20.0mm
- No. of Stator Arms: 12
- Magnet Poles: 10
- Motor Wire: Φ3.5 x 60mm
- Motor KV: 1200KV
- No-Load Current(IO/10V): 2.9A
- Motor Resistance(RM): 0.004
- Max Continuous Current: 50A
- Max Continuous Power: 1100W
- Max. Peak Current: 85A
- Max. Peak Power: 1750W
- Weight: 304g
- Outside Diameter: 50mm
- Body Length: 46.4mm
- Shaft Diameter: 6mm
- Overall Shaft Length: 68mm
- Max Lipo Cell: 6S
- Motor Timing: 15
- Drive Frequency: 8kHz
- Plug: 4mm Gold-plated Banana Plugs
- Compatible with 505 rc helicopter

Package Included:
1x Brushless Motor
