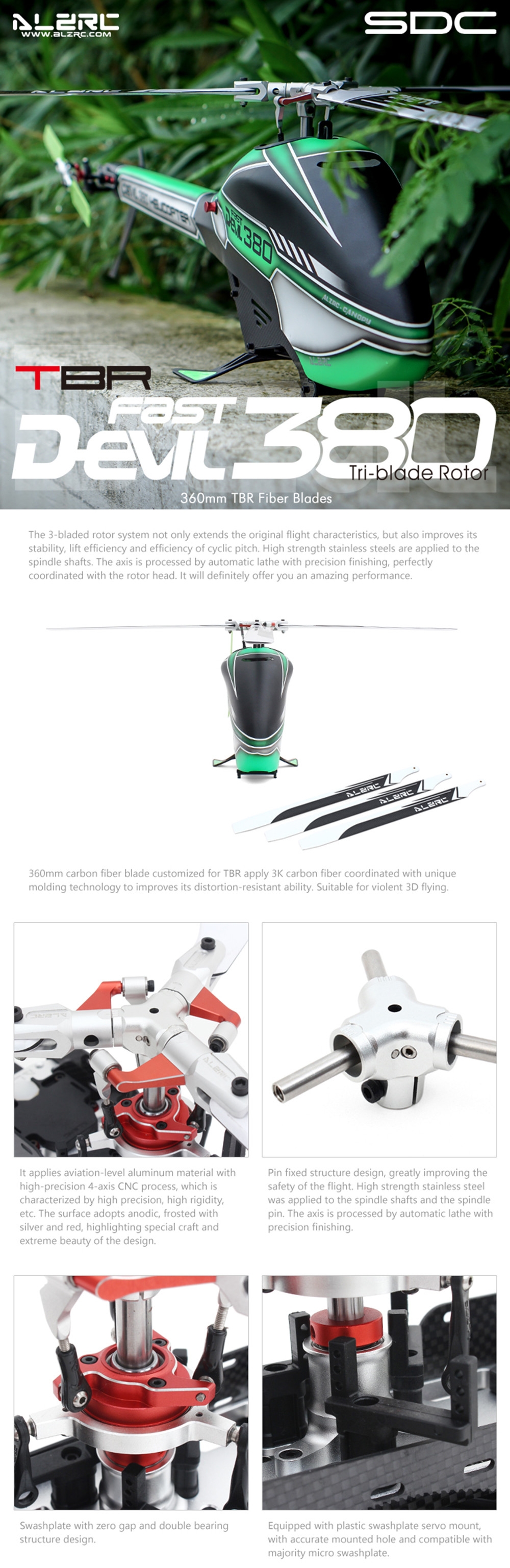

The 3-bladed rotor system not only extends the original flight characteristics, but also improves its stability, lift efficiency and efficiency of cyclic pitch. High strength stainless steels are applied to the spindle shafts. The axis is processed by automatic lathe with precision finishing, perfectly coordinated with the rotor head. It will definitely offer you an amazing performance.
Description:
Brand: ALZRC
Item: Devil 380 FAST TBR 3-Blade RC Helicopter Kit
Channel: 6CH
Color: Green
Main Rotor Diameter: 820mm
Main Blade Length: 360mm
Tail Rotor Diameter: 196mm
Tail Blade Length: 75mm
Main Shaft Diameter: 8mm
Spindle Shaft Diameter: 5mm
Tail Shaft Diameter: 5mm
Tail Spindle Shaft Diameter: 3mm
Motor Size: max 41mm diameter, max 41mm height
Battery Compartment: 44*44*130mm
Weight: Appro 1070g(kit)
Packing Size: 55*20*13cm
Packing Weight: Appro 1800g
Features:
- The blade is made of 3K carbon fiber (360mm length) coordinated with unique molding technology to improves its distortion-resistant ability, suitable for violent 3D fly.
- It applies aviation-level aluminum material with high-precision 4-axis CNC process, which is characterized by high precision, high rigidity, etc. The surface adopts anodic, frosted with silver and red, highlighting special craft and extreme beauty of the design.
- Pin fixed structure design, greatly improving the safety of the flight, high strength stainless steel was applied to the spindle shafts and the spindle pin, the axis is processed by automatic lathe with precision finishing.
- Plastic Tail-locked servo mount, compatible with medium-sized tail servo.
- Using double gynchronous belt to keep enough driving power and make it easy to install the model.
- Big battery mount,conveniently to install battery(6S 1500-2600mAh).
Note: Package is only included the helicopter kit, need to prepare transmitter and other electronic components by yourself, such as ESC, battery, servos, etc.
Recommend Accessories(not included in package):
6-channel or more Transmitter ,helicopter system
6-channel or more Receiver
Digital Pitch Gauge
6S/22.2V 1500~2600mAh Li-Po Battery
Micro Digital Metal Swashplate Servo x 3
Medium Digital Metal Tail-lock Servo x 1
Flybarless Gyro System
Plug & Assemble Tools Set
Package:
1* ALZRC Devil 380 FAST TBR 3-Blade RC Helicopter Kit
1* Pentium-60A-V4 ESC
1* 3120-PRO 1000KV Brushless Motor
