Specification:
Brand Name: Aurora RC

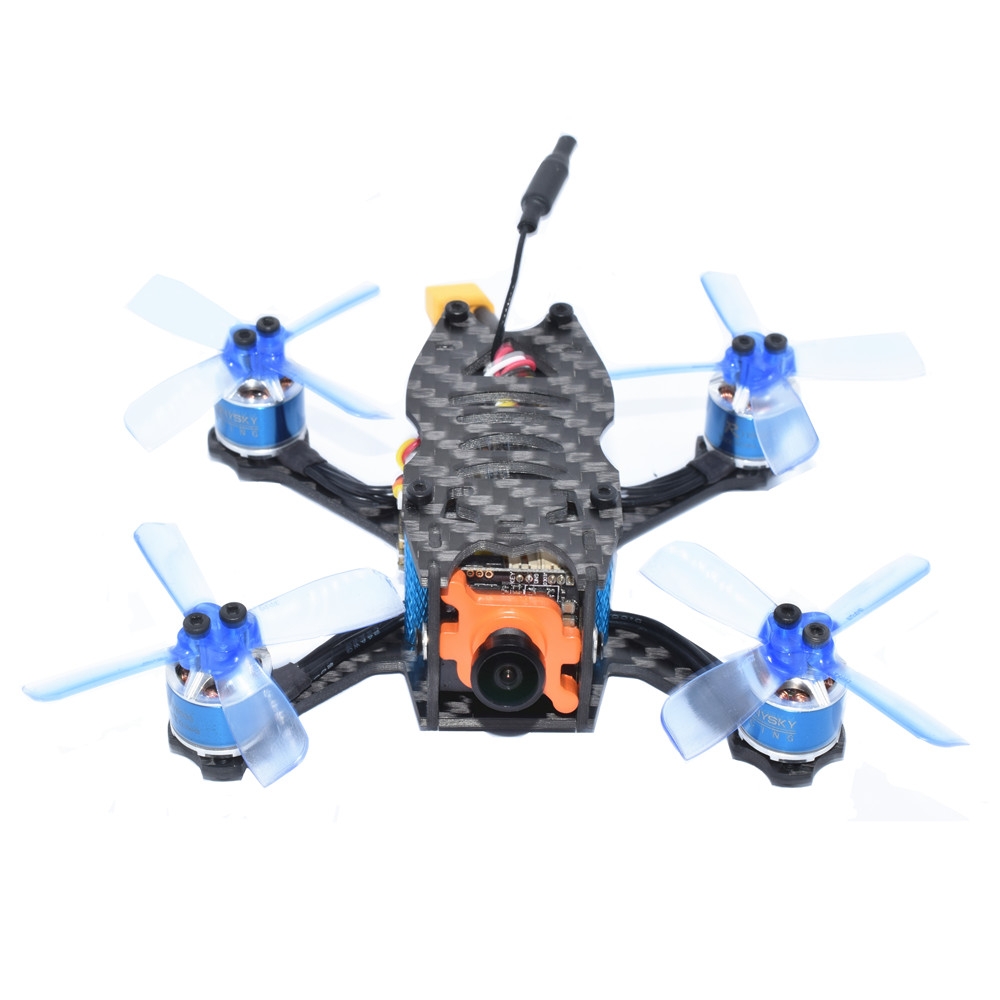

Item Name: 100mm F3 OSD 5.8G FPV Racing Drone
Drone Wheelbase: 100mm
Weight: 78g
| Flight Controller |
Brand Name: Aurora RC Model: ARF3-3AOM Item Name: 20x20mm Omnibus F3 FC AIO OSD BEC
CPU: STM32F303CCT6
Sensor: MPU-6000 (connected by SPI)
Firmware: betaflight_3.X.X_OMNIBUS
- Built-in Betaflight OSD
- Built-in 5V 3A BEC
- Built-in LC Lilter, support DShot ESC
Input Voltage: 2-4S
Size: 27x27mm
Mounting Hole: 20x20mm ( M2.5)
Weight: 3.7g
- Support SBUS/IBUS/PPM/DSMX Receiver
- Support 3.3V Spektrum Satellite Receiver
|
| Brushless ESC |
Item Name: 20A BLheli_S 4 in 1 ESC
Con. Current: 20A ( Per )
Peak Current: 25A ( 5S)
Firmware: BLHELI_S
BEC: NO
CPU: SILABS EFM8BB21F16G
Size: 27x32mm ( Including Pad)
Mounting Hole: 20x20mm
- Support PWM, Multishot, Oneshot and DShot
|
| Brushless Motor |
Brand Name: Sunnysky Model: R1106 Item Name: R1106 1106 8000KV Motor Stator Diameter: 11mm Outside Diameter: 14.2mm No-Load Current: 0.9A@10V Max. Con. Current: 23A/30S Weight: 7.5g |
| Propeller |
Item Name: 2045 2 Inch 4-Blade Propeller Color: Clear Blue Quantity: 4 CW & 4 CCW |
| FPV Transmitter |
5.8G 48CH 25/100/200mW VTX |
| FPV Camera |
Model: A19 Item Name: A19 960H 2.1mm Lens FOV135 Degree CCD Camera OSD Adjustable
Horizontal Resolution : D1 960H
Lens : 2.1mm
Color : Orange
Format : PAL/NTSC(OSD adjustable)
Send OSD Board altogether
S/N Ratio : >60Dd(AGC OFF)
Electronic Shutter : PAL 1/50-100.000;NTSC 1/60-100,000
AGC : LOW/MIDDLE/HIGH
BLC : YES
Min Illumination : 0.001Lux/1.2F
WDR : D-WDR
DNR : 3DNR
Day/Night : Auto/Color/B*W
Power : DC5v-30v
Net Weight : 5.6g
Dimension : 19x19x19mm
OSD
Exposure : Brightness/Exposure Mode/Gain
The White Balance : Auto Tracking
Day and Night Mode : Internal Automatic/Color Mode/Black and White Mode
Video Settings : Contrast/Sharpness/Saturation/Digital Noise/Video Format(N/P)/Digital Wide Dynamic
Language : Chinese/English/Deutsche/Italiana/Ð ÑÑÑкий
Restore the Factory Settings : OK
Save the Exit : Yes
|
| Receiver |
Flysky Receiver Version: Compatible with Flysky AFHDS 2A Receiver Frsky Receiver Version: Compatible with Frsky D8 Receiver DSM2/DSMX Receiver: Compatible with DSM2/DSMX Receiver PNP Version: Without Receiver |
Package Included:
1x Aurora RC 100mm Racing Drone
