Coupled with unique optical and electrical design, the product is based upon ToF (Time of Flight) and adopts 850nm infrared light source so as to measure distance with stability, precision, high sensitivity, and high speed.
The product is built with algorithms adapted to various application environments so as to offer excellent distance measurement performances with low cost and small size. The product adopts multiple adjustable configurations for flexible use by the client, which is better to satisfy the end-users’ demand.

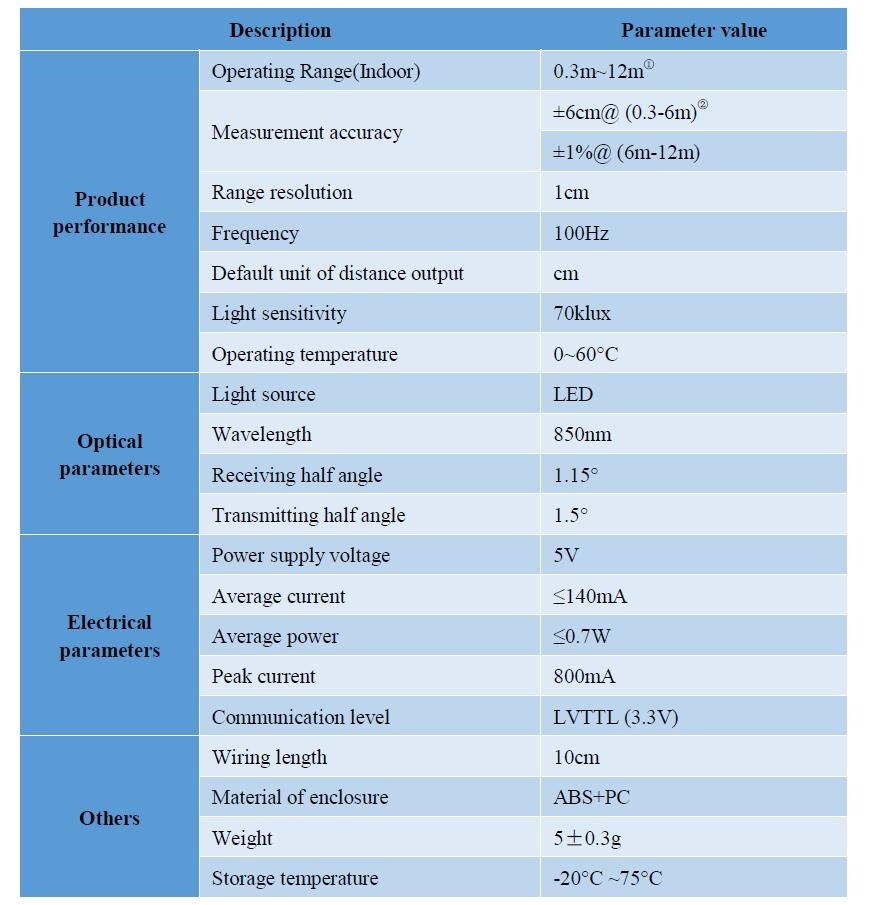

Specification:Brand name: Benewake
Item name: TFmini 0.3-12m LiDAR Module
Version: UART
Range: 0.3-12m
Frame rate: 100Hz
Detection angle: 2.3°
Working temperature: 0~60â
Size: 36mm*21mm*18.5mm(L*W*H)
Weight: 5g
Package Included:
1 x TFmini 0.3-12m LiDAR Module
Package Included:
1 x TFmini 0.3-12m LiDAR Module
