Specification:
Brand Name: Betafpv
Model: Beta65 Pro

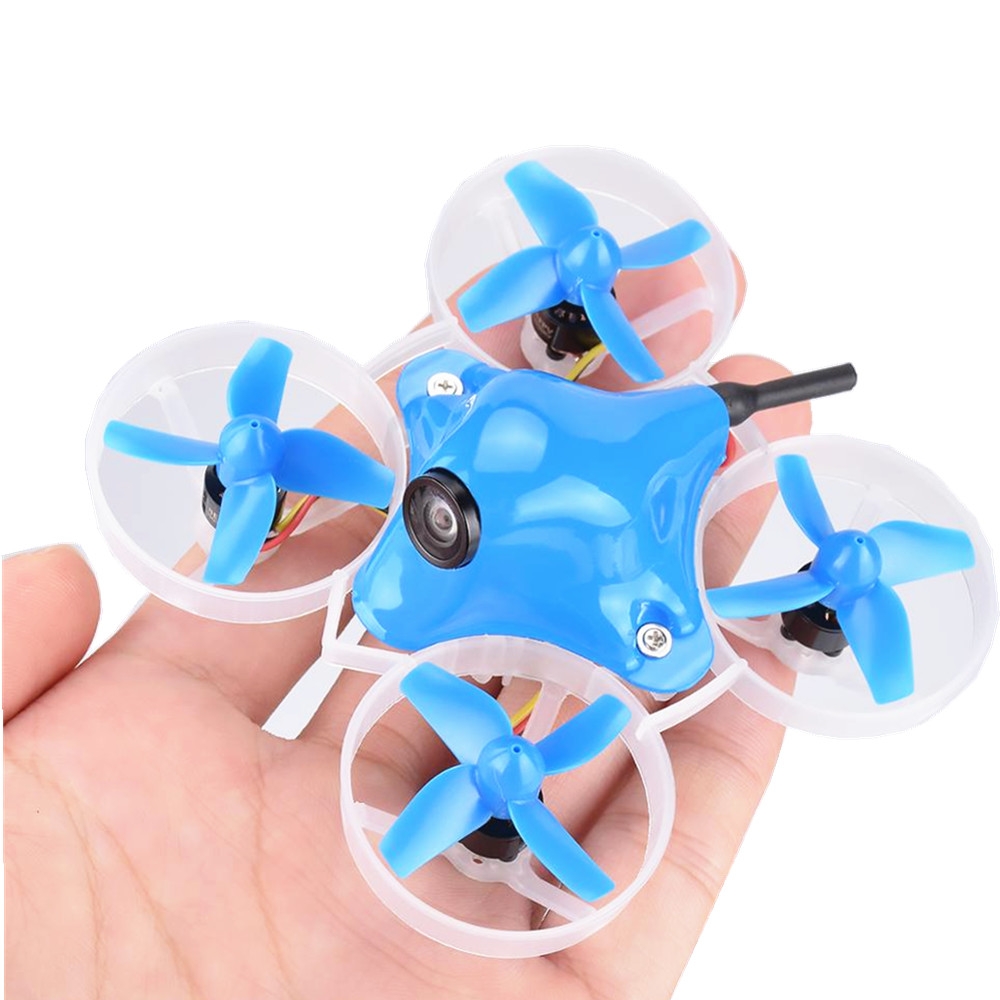

Item Name: 65mm Wheelbase 1S Brushless Whoop FPV Racing Drone
Wheelbase: 65mm
Version: PNP ( Without Receiver & Battery)
Weight: 23.3g (without battery)
| F4 1S Flight Controller |
Item Name: Betafpv F4 1S FC MCU: STM32F411CEU6 (100MHZ) Sensor: MPU-6000 Firmware: betaflight_matekf411rx_3.4.0 Board size: 26 * 26mm Power supply: 1S battery input Power Cable: 55mm w/ JST PH 2.0 Cable Connector Notice: Don't have OSD |
| Onboard 5A 4 In 1 ESC |
Power supply: 1S LiPo |
| Onboard Receiver |
Don't have |
| 0603 19000KV Motor |
Model: 0603 KV: 19000KV
Plug: Micro JST-PH 1.25 3-pin connector
Height: 16.2mm
Width: 10mm
weight: 1.6g (without connector)
Shaft: 1.0mm
KV (rpm/V):16000KV
Voltage: 3.7V-7.4V
Battery: 1S lipo battery (2S is not recommended)
Load Current: 1.8-3.8A
Pull: 23-40g
Power: 6.7-28W
Efficient: 3.4-1.4g/W
|
| Propeller |
31mm 4-blade Propeller |
|
5.8G VTX AIO Camera |
5.8G 48CH 25mW VTX Output power: 25/200mw (25mW default) Frequency: 48CH With Raceband: 5362-5945MHz Input voltage: 2.9V 5.5V Camera Field of view: 100-120° Video Format: NTSC Antenna: Omnidirectional ANT Frequency: 5.8GHz 6bands 48 channels With Raceband Smartaudio ready(Frsky EU-LBT and DSMX version not compatible) Size: 27x17x14mm ( L*W*H ) Weight: 4.7g |
Package Included:
1x Beta65 Pro 1S Racing Drone
