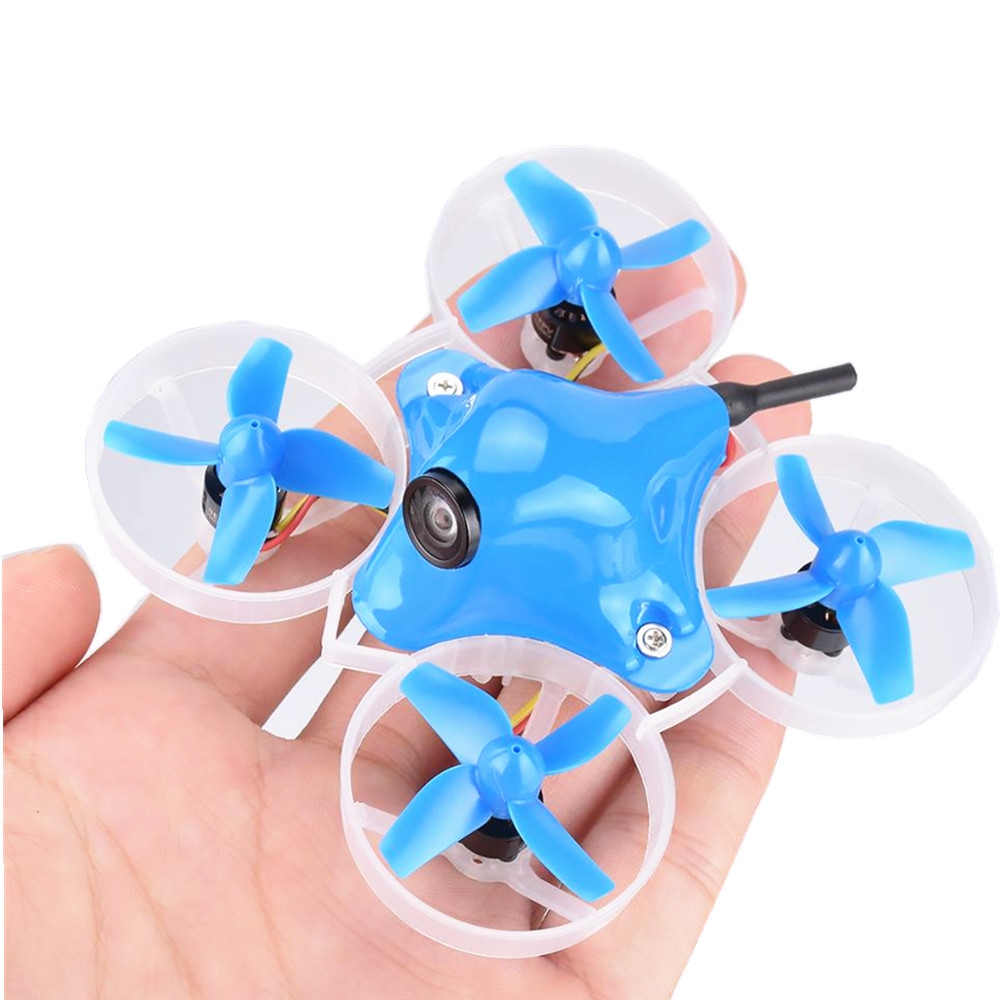

Betafpv Beta65 Pro 65mm F4 OSD 1S Whoop FPV Racing Drone BNF w/ 0603 19000KV Motor 48CH 25mW VTX - 129.00 €


Betafpv Beta65 Pro 65mm F4 OSD 1S Whoop FPV Racing Drone BNF w/ 0603 19000KV Motor 48CH 25mW VTX
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Betafpv Beta65 Pro 65mm F4 OSD 1S Whoop FPV Racing Drone BNF w/ 0603 19000KV Motor 48CH 25mW VTX

Specification:
Brand Name: Betafpv
Model: Beta65 Pro
Item Name: 65mm Wheelbase 1S Brushless Whoop FPV Racing Drone
Wheelbase: 65mm
Version: BNF ( With Receiver and Battery)
Receiver (Optional) :Compatible Frsky Receiver
Compatible Futaba Receiver
Compatible Flysky Receiver
Compatible DSM2/DSMX Receiver
Weight: 23.3g (without battery)

F4 1S Flight Controller
Item Name: Betafpv F4 1S FC
MCU: STM32F411CEU6 (100MHZ)
Sensor: MPU-6000
Firmware: betaflight_matekf411rx_3.4.0
Board size: 26 * 26mm
Power supply: 1S battery input
Power Cable: 55mm w/ JST PH 2.0 Cable Connector
Built-in Betaflight OSD
Built-in Receiver

Built-in ESC
Onboard 5A 4 In 1 ESC

Power supply: 1S LiPo
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_L_5_REV16_6.HEX
Support DShot150, DShot300, DShot600, Oneshot125, Multishot and PWM

Onboard Frsky Receiver Version ( Optional)
Compatible with Taranis, Taranis Plus / X9E / Horus X12S / XJT Modules.
Pay attention, this is a SPI connection receiver.
In Betaflight Configuration, it should be setted as FRSKY_D receiver (aka Frsky D8 mode)
or FRSKY_X receiver (aka Frsky D16 mode) in SPI RX mode.

Onboaed Flysky Receiver Version ( Optional)

SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch (AFHDS) or 14ch (AFHDS-2A)
Failsafe support

Onboard DSM2 / DSMX receiver version ( Optional)

Serial bus receiver
Protocol: DSM2/DSMX compatible
Channels:6-9 (Depend on your radio)

Onboard Futaba receiver version( Optional)
Compatible Futaba receiver
0603 19000KV Motor
Model: 0603
KV: 19000KV

Plug: Micro JST-PH 1.25 3-pin connector
Height: 16.2mm
Width: 10mm
weight: 1.6g (without connector)
Shaft: 1.0mm
KV (rpm/V):16000KV
Voltage: 3.7V-7.4V
Battery: 1S lipo battery (2S is not recommended)
Load Current: 1.8-3.8A
Pull: 23-40g
Power: 6.7-28W
Efficient: 3.4-1.4g/W
Propeller
31mm 4-blade Propeller

5.8G VTX AIO Camera

5.8G 48CH 25mW VTX
Output power: 25/200mw (25mW default)
Frequency: 48CH
With Raceband: 5362-5945MHz
Input voltage: 2.9V 5.5V

Camera
Field of view: 100-120°
Video Format: NTSC
Antenna: Omnidirectional ANT
Frequency: 5.8GHz 6bands 48 channels
With Raceband
Smartaudio ready(Frsky EU-LBT and DSMX version not compatible)
Size: 27x17x14mm ( L*W*H )
Weight: 4.7g
Lipo Battery
1S 4.35V 260mAh 50C/80C Lipo Battery

Package Included:
1x Beta65 Pro 1S Racing Drone
1x Battery
