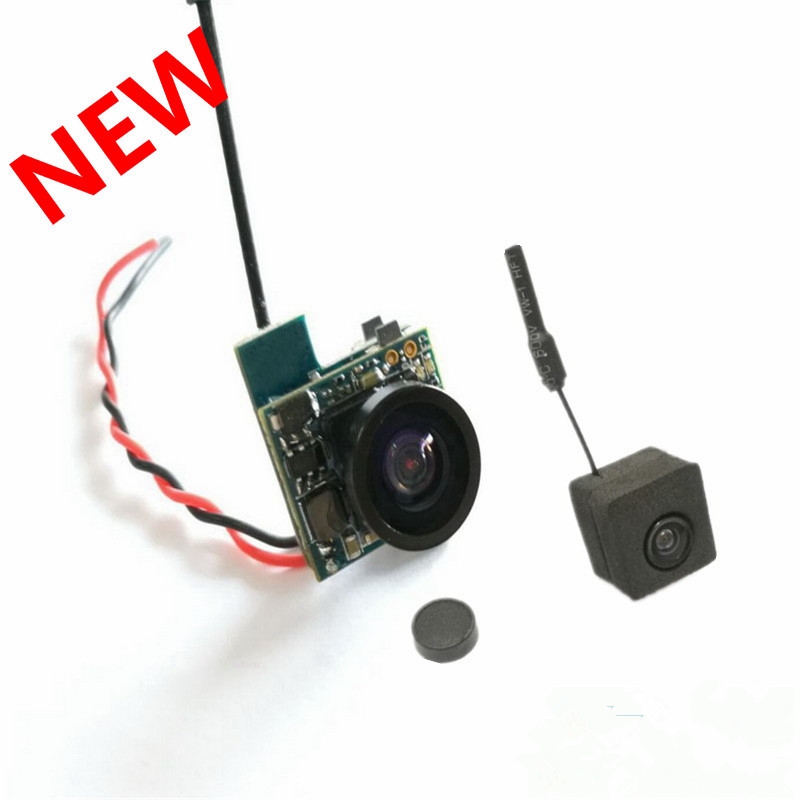

CM275T 5.8G 25mW 48CH NTSC/PAL Mini VTX 600TVL FPV Camera for DIY Micro FPV Racer
Description:
Item name:CM275T 5.8G Wireless Mini Transmitter Camera Combo For FPV Multicopter
Electrical Characteristics:
Frequency band:5362-5945 MHz
Channel customer:48
Modulation:FM
Channel SEL.:Touch Switch
Channel Indicate:CHI-CH8 Channel indication with 8LEDS and A~F frequency group Indicate with 6LEDS
Transmit power:13 ±1dBm
Frequency control:PLL
All harmonic:Max-50dBm
Frequency Stability: ±100KHz(Typ.)
Frequency precision: ±200KHz(Typ.)
Channel Carrier error:1dB
Antenna Port:50Ω
Input format:NTSC/PAL
SENSOR:PAL:720X540/NTSC:640X480 1/4"
LENS ANGEL:H:120°/V:100°
Base -band interface:P1.27*2
Power consumption:200~215MA@5V DCIN
Supply Voltage:2.9-5.5v
Operating Temperature:-10â~+60â
Profile dimension:14.5mmX12.2mm+14.5mmX12mm
Features:
1.This product CM275T is a 5.8G wireless camera
2.48 Channel
3.Support touch switch select channel Frequency group
4.Support NTSC/PAL switch , Support vertical inverted image switch
5.8LED display channel and 6LEDS display frequency group information;1LED display PAL/NTSC and FLIP information
6.Wide lens angle
7.Miniature and light weight design
Package Included:
1 x 5.8G 48CH FPV Camera
1 x Cable
