Specification:
Item No. CYS-S0150D
Type Analog
Weight 56g
Size 40.1*20.1*38.8mm
Control System (+)Pulse Width Control 1500usec Neutral
Required Pulse
Operating Voltage 6.0~7.4Volts
Operating Temperature Range (-)10 to +50 degree C
Operating Speed (6.0V) 0.16sec/60° at no load
Operating Speed (7.4V) 1.4sec/60° at no load
Stall Torque (6.0V) 14kg.cm
Stall Torque (7.4V) 15kg.cm
Operating Angle 45deg.one side pulse traveling 500 usec
360 Modifiable No
Direction Anticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V) 20mA/idle and 200mA no load operating
Current Drain (7.4V) 20mA/idle and 300mA no load operating
Stall Current 2.7A/3.2A
Dead Band Width 4usec
Motor Type 3 Pole Ferrite Drive
Bearing Type Dual Ball Bearing
Horn gear spline 25T
Gear Type Metal
Important Notes:
-Refer to the figure when installing the servo accessories.
-For engine powered airplanes and boats, rubber must be used to reduce vibration.
- Please choose correct model for your application.
-Torque over-loaded will damage the servo's mechanism-.
- Keep the servo clean and away from dust, corrosive gas and humid air.
Package Included:

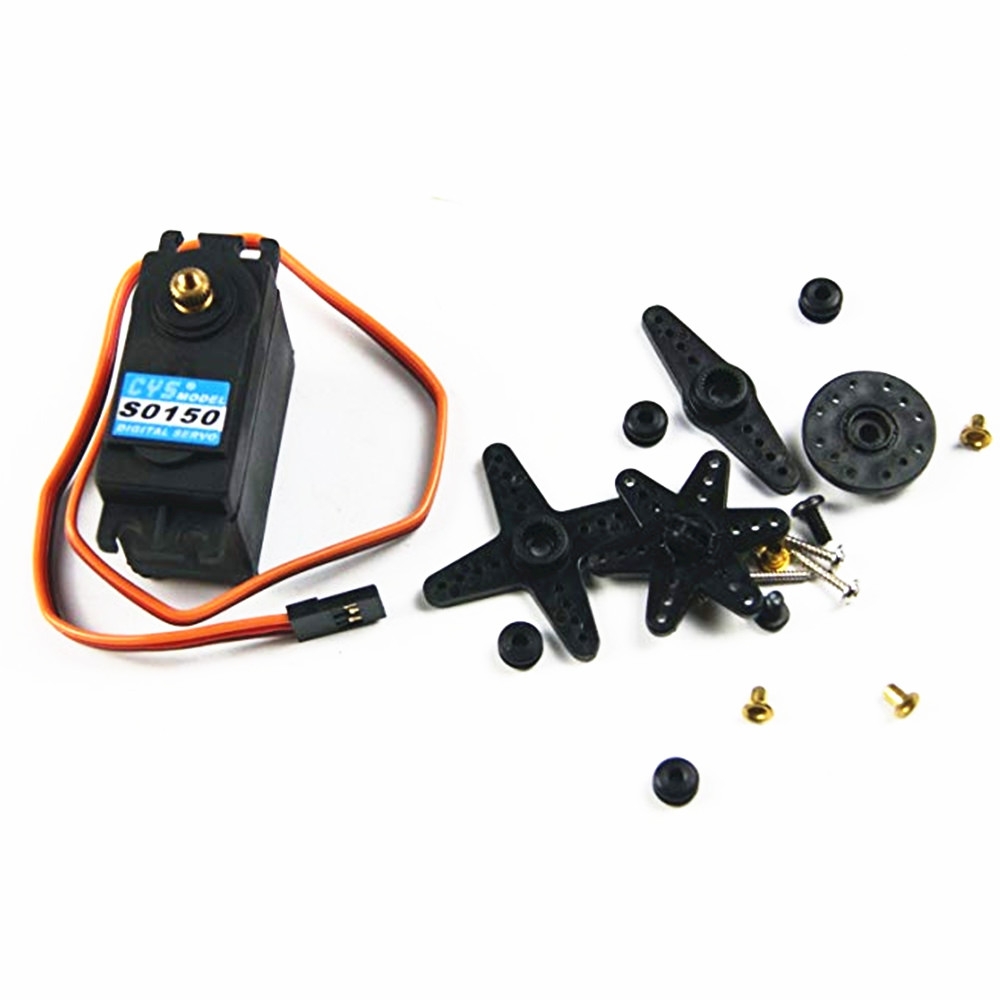

1 * CYS-S0150D 15KG Digital Servo
1 * Spare Parts Set
