Diatone 2018 GT R530 Stretch X Integrated Arm Version 232mm F4 OSD FPV Racer TBS 800mW VTX PNP - 204.00 €

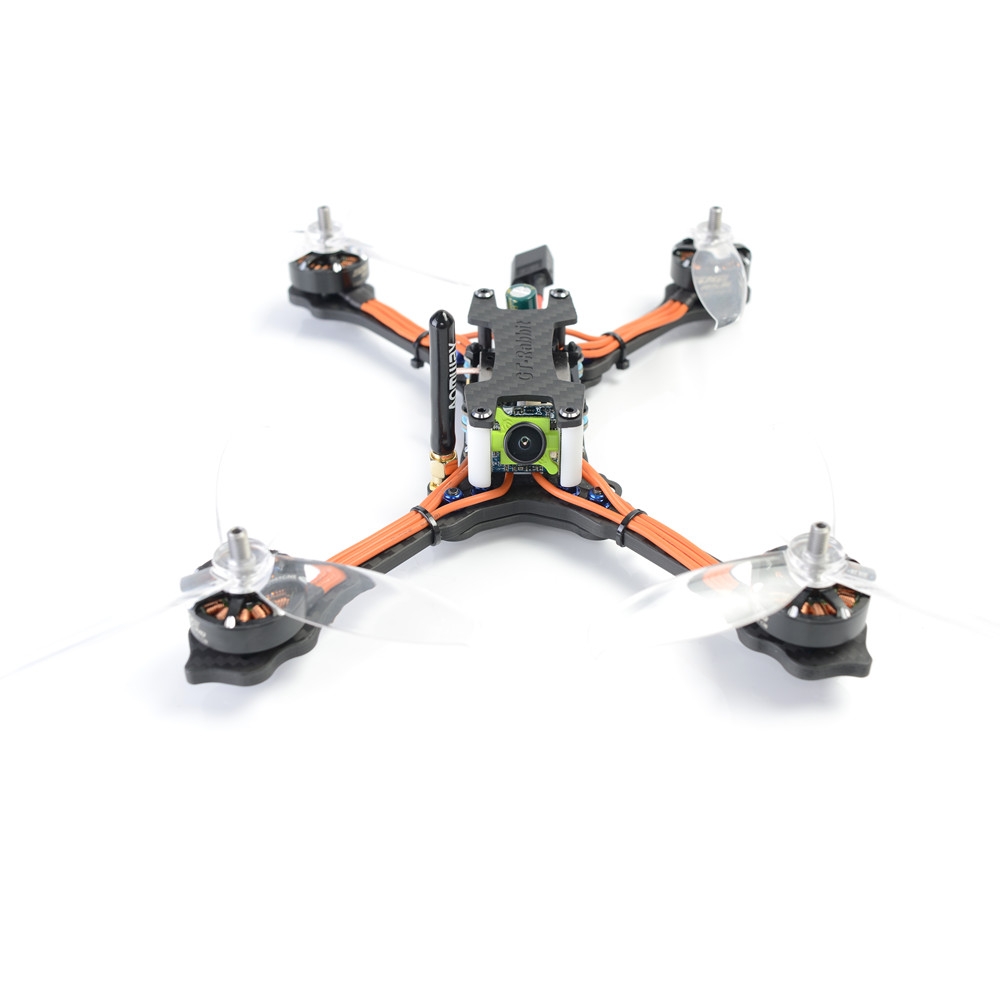

Diatone 2018 GT R530 Stretch X Integrated Arm Version 232mm F4 OSD FPV Racer TBS 800mW VTX PNP
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Diatone 2018 GT R530 Stretch X Integrated Arm Version 232mm F4 OSD FPV Racer PNP

Specification:
Brand Name: Diatone
Item Name: GT R530 Stretch X Integrated Arm Version 232mm F4 OSD FPV Racer
Model: GT-R530 SX ( Integrated Arm Version )
Version: PNP( without receiver, battery and radio transmitter)
Wheelbase: 232mm
Arm Plate Thickness: 5mm
Color: Titanium
Rated Power: 2940W
Peak Power: 3780W
Weight: 290g

Mamba F405 Flight Controller Item Name: F405 Betaflight FC AIO OSD BEC
Input Power: 12.6-25V (3-6S)
BEC: 5V/1.5A
MCU: STM32F405
Gyro: MPU6000, 8K Six-Axis
Flash: 16MB
OSD: AT7456
Mounting Hole: 30.5*30.5mm
Weight: 6g
Mamba F40 DShot600 4in1 ESC Item Name: Mamba F40HV ESC
Input Voltage: 3-6S (12.6V~25V)
Continue Current: 40A×4
Burst Current: 50A (6S)
BEC: NO
Mounting: 30mm / φM3
Weight: 10g
Diatone Edge 2306 2450KV Brushless Motor
Item Name: Edge 2306 2450KV brushless motor
KV: 2450 (rpm/V)
Stator Diameter: 23mm
Stator Thickness: 6mm
No. of Stator Arms: 12
No. of Stator Poles: 16
No-Load Current (A/10V): 2.0A
Motor Resistance: 24mΩ
Max. Continuous Current: 65A/10S
Max. Continuous Power: 1100W
Weight: 32g
Outside Diameter: 23mm
Body Length: 40mm
Max. Lipo Cell: 3-5S
5 Inch Propeller
Item Name:5 Inch 3-Blade Propeller
Color: Transparent White
FPV Transmitter
TBS UNIFY 800mW VTX
FPV Camera
Item Name: Runcam Micro Swift FPV Camera
Image Sensor: 1/3" SONY Super HAD II CCD
Horizontal Resolution: 600TV
Signal System: PAL / NTSC
S/N Ratio: >60dB(AGC OFF)
Electronic Shutter Speed: PAL:1/50 ~ 100,000; NTSC:1/60 ~ 100,000
AutoGain Control(AGC): YES
Back light compensation(BLC): YES
Min.illumination: 0.01Lux/1.2F
WDR: D-WDR
DNR: 2DNR
Day/Night: Color / Auto / B&W
Power: DC 5 to 36V
Net weight: 5.​6g
Dimensions: 19x19x19mm

Package Included:
1 x GT R530 F4 Stretch X 232mm RC Drone ( Arm Integrated Version)
