DJI FPV Air Unit Antenna MMCX Straight 5.8Ghz 3dBi LHCP Mini FPV ANT - 15.00 €


DJI FPV Air Unit Antenna MMCX Straight 5.8Ghz 3dBi LHCP Mini FPV ANT
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

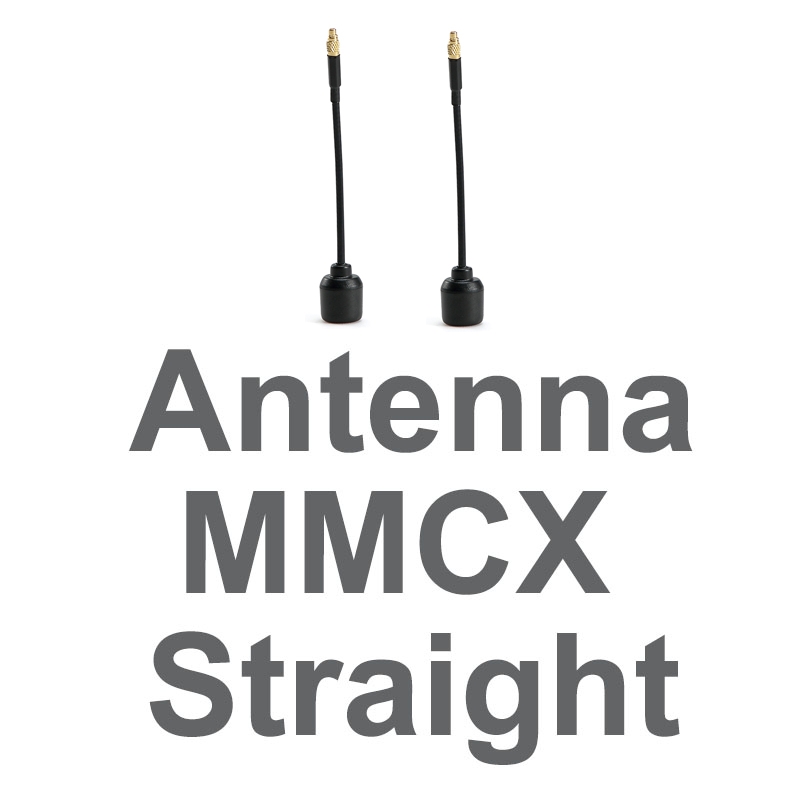

DJI FPV Air Unit Antenna MMCX Straight
5.8Ghz 3dBi LHCP Mini FPV ANT

Overview
LHCP antenna with MMCX joint, which is small and lightweight and ensures a long-distance transmission range and strong anti-interference.

Features
Long-distance transmission, small size, lightweight, and durable.


Specifications
VSWR<2 frequency range: 5.4GHz-6GHz
Gain : 2.75dB gain and 3dB axial ratio beamwidth at 5.8GHz
Size: 12.7 x 12.7 x 80 mm
Weight: 3.9 g
Compatible with DJI FPV Air Unit


Tips
Keep the antennas of the air unit at least 40 mm apart.

Keep the air unit away from metal objects or carbon fiber frames. Make sure to choose a position where the transmission will not be blocked during flight.

The DJI FPV Air Unit is equipped with MMCX antenna ports. Since the port (the inner pin) is small, when pulling out the antenna, please hold the air unit with one hand, press the two ends of the antenna with the other hand, and remove it horizontally.

Please note that dragging the antenna directly may cause the inner pin and the collar to fall off or get damaged.


Package Included
2 x DJI FPV Air Unit Antenna (MMCX)
