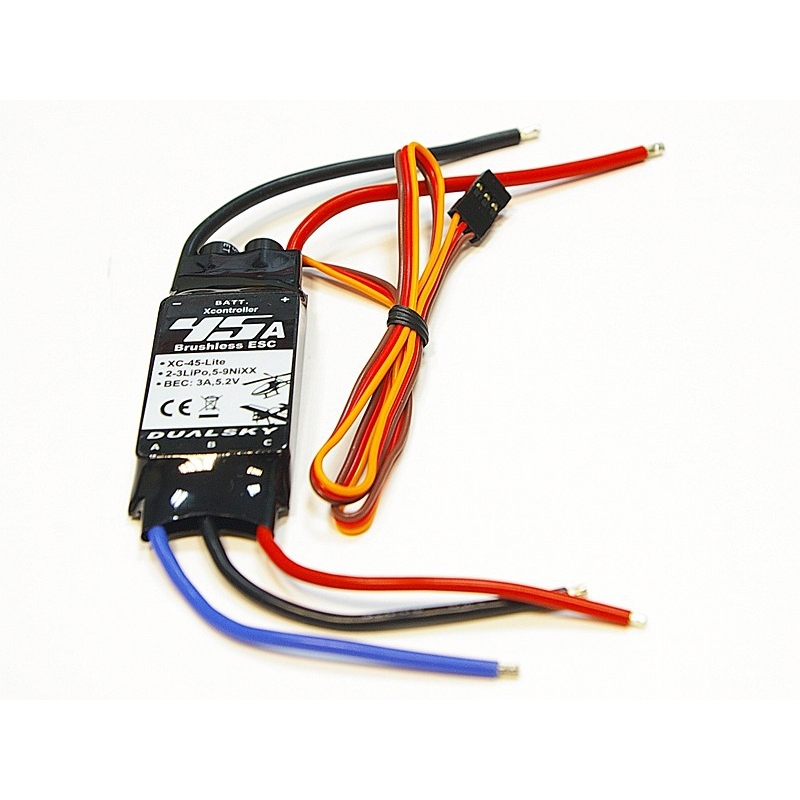

DUALSKY XC-45-Lite Ultra Light 45A Brusheless ESC with BEC Speed Control for RC Airplane FPV Racing Drone RC Car Boat
FEATURES
Programmable with DualSky V2 programming card.
The new designed 2nd version software and hardware have many new features.
Supports all motor types up to 210,000 rpm(2 Poles motors).
Extremely low resistance, factory high quality MosFETs, for high current usage.
Adjustable cut-off, either motor stop or reduction in power.
DLBM on/off - Dualsky Linear Brake Mode. Brake strength can be adjusted by transmitter when switch on.
Full protection features including: Low voltage cut-off, Over heating protection, signal loss auto cut-off.
Normal, Soft or Super-Soft start up modes available, for both fixed wing and helicopter setups.
Smooth and accurate throttle control throughout the range.
Throttle digital signal sampling, compatible with the signal frequency of 14 ms
Normal mode and 7 ms high-speed mode (HS Mode).
Throttle range can be re-calibrated, so suitable for all brands of transmitter.
Fully PC programmable when used with Dualsky USB link.
Compatible with programming card for easy re-programming at the field!
Stable linear BEC power supply, support up to 3S Lipo.
SPECIFICATIONS
Dimensions: 67x 25x 7mm(L x W x D)
Weight: 38g (with wires)
Number of Cell: NiXX 5-9 cell, 6-10.8V / LiPo 2-3s, 7.4-11.1V
Resistance(Ri)(Ohm): 0.0026
Max Cont. Current & Max Cont.Output: 45A, 500W
Max Burst Current & Max Burst Output: 60A, 666W
BEC / Dissipative Power: 5.2V/3A (Linear)
Programmable: Throttle + ProgCARD V2
Signal Wire: 300MM JR
PACKAGE INCLUDED
1 x DUALSKY XC-45-Lite Ultra Light 45A Brusheless ESC with BEC Speed Control for RC Airplane FPV Racing Drone RC Car Boat
