Eachine ROTG02+ 7081U 800TVL AIO Camera FPV Combo 5.8G 48CH 25mW Transmitter Camera Receiver Black Set for Android Phone
Description :
Eachine ROTG02 UVC receiver is a new receiver that you can connect to your smart phone and computer.PAD directly instead of heavy monitor and good for those who feel dizzy when wear FPV goggles. It has low latency around 100ms .150CH auto search allows to cover all 5.8G frequency bands.
Please note:This Receiver only suits for Android phone that support UVC and make sure your phone can work with OTG connector.
Notice:
*An antenna has been added to a single antenna receiver to provide more stable signals
*Add a button to make it more convenient to adjust the channel
*Increase the function of channel waveform display
*Adding app audio playback
*Long press any button to enter the automatic scanning mode
*Mobile phones with Qual CPU support almost all
*Some phones need to open the OTG function in the settings
Specification:

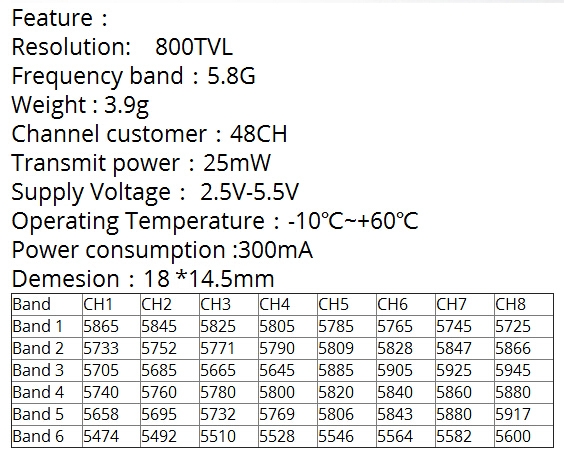

1. Model : EWRF 7081U AIO Camera
2. Model : ROTG02
| Model | ROTG02 |
| Name | UVC OTG FPV Receiver |
| Channel | 150CH |
| Frequency Range | 5645~5945 |
| Sensitivity | -90dBm |
| Working Current | 300mA/5V |
| Power Supply | 5V(by smart phone) |
| Operating Temperature | -10~60â |
| Connector | RP-SMA Female |
| Weight | About 35g |
| Size | 61*41*11 mm |
| Color | Black |
How to check my phone support UVC:
https://drive.google.com/open?id=0Bzr4U7GOGvNJUjNGZ25EdTlSLWs
APP Download:
http://files.banggood.com/2016/11/fuav.2.0.apk
Here's the phone list support this receiver that we have test .
Sumsung: S3(I9300,I9308), S4(I9500,I9507V,I9508,S5,S6,S6, edge+,S7edge, NOTE3,NOTE4,NOTE5,A5100,A8000,ON7,P600,N7100,N5100,Tab S2..)
OPPO:A31,A31C,A33,A51,A53,A33M,A51,A53,A5M,N3,FIND7,R7005, R7007,3007,R2017,R8000,R8205,R8207,R7SM,R7 PLUS,R9 PLUS, ect..
XIAOMI: XIAOMI 3,XIAOMI 4,XIAOMI 4C,XIAOMI5,XIAOMI pad, XIAOMI Red Note,XIAOMI Red Note3,ect...
HUAWEI:MATE8, C199,Honor8
LG:GPRO2,G3,NEXUS5,L24,GPAD8.3, ect..
:XPRO,NEXUS6,MOTO E,MZ617,ect..
SY:Z1,Z2,Z3,C3,SGP321,ect........
Operation:
RX:
There are 2 same connecters on USB cable, but in different function.
One side is special for mobile, the other is special for receiver.
Please connect them correctly. If it doesn't work , please try to plug them in reverse.
Package Included:
1 x Eachine ROTG02 FPV Receiver Black
2 x RP-SMA Antenna
1 x USB Cable
1 x Micro Type-C Cable
1 x FPV AIO Camera
