Eachine Wizard X220HV 6S FPV Racing RC Drone PNP w/ F4 OSD 45A BLHeli_S 40CH 600mW VTX Foxeer Arrow Mini Pro Camera SpeedyBee bluetooth
Note:
Note:
Dear customers,
Please don't flash the flight controller to the latest firmware, for its factory default command please Click Here.
| Item | Specification |
| X220HV Frame Kit |
Wheel base: 220mm
Upper plate thickness: 2.0mm
Frame arm thickness: 5.0mm
Bottom plate thickness: 3.0mm
X plate thickness: 1.5mm
Camera side plate thickness: 1.5mm
Camera standoffs: M3*28mm 1 PC
Frame standoffs: M3*20mm 8 PCS
|
| 2306 1650KV 3-6S Brushless Motor |
Motor KV: 1650 RPM/V
Idle current(Io/10V): 1.05A
Lipo cell: 3-6S
Weight: 35g
Max continuous current: 36A
Max continuous power: 860W
Max thrust: 2350g
Configu-ration: 12N/14P
Stator diameter: 23mm
Stator thickness: 6mm
Motor diameter: 29mm
Motor body length: 18.4mm
Overall shaft length: 32.9mm
Prop adapter shaft: M5
Bolt holes spacing: 16mm
Bolt thread: M3
Propeller: 5-6 inch
|
| 45A 4 In 1 BLHeli_S ESC 2-6S |
Integrated PDB
Working voltage: 2-6S Lipo
Continuous working current: 4*45A
Peak current: 4*50A (6S)
Main control chip: 48Mhz EFM8BB2
Firmware: BLHeli_S Supports Dshot600
MOS: 5*6
|
| Customized F4 Flight Controller Built-in OSD |
Main control chip: STM32F405
Sensor: MPU6000 6 axes
Power supply: 5V
Integrated OSD
LC filter on board
Supports BetaFlight / inva running firmware
|
| Foxeer Arrow Mini Pro 2.5mm 650TVL Camera |
Solution: 1/3" Sony SUPER HAD II CCD + Nextchip 2040 DSP
Pixel: PAL: 976(H)x494(V)
TV system: PAL
Resolution: 600TVL(color) 650TVL(B&W)
Synchronization: internal
Min.illumination: 0.01Lux
WDR: support
OSD programming board: support
White Dot repair: support
DNR: 2D DNR
Camera title: support
Image adjustment: support
OSD: Edit name, power, flying time
Input power: 5-40V
Storage temperature: -40â~60â
Working temperature: -10â~50â
Power consumption: 70mA
Low voltage alarm: support
Preset mode: DEF, VIVID, SUNNY, CLOUDY, LED TR, USR1
Size: 21.8x21.8mm
Weight: 8.7g(excluding bracket)
|
| 5.8G 40CH 0mW/25mw/200mw/600mw VTX Switchable |
Output power and transmission distance: ≥0.5km@25mW, ≥1km to 200mW, ≥2km to 600mW
Transmission power: 0mW / 25mW / 200mW / 600mW
Full video format: NTSC / PAL
Input voltage and power dissipation: 7V ~ 24V, + 12V / 260mA @ 600mW
Size: 36*36*6mm
Weight: ≤ 7g (excluding antenna)
With output power self-check function.
Nixie tube SCAN: frequency point (1-8), frequency band (AE), power (1-3, 0=0mw, 1=25mw, 2=200mw, 3=600mw)
|
| SpeedyBee bluetooth Module |
Support Betaflight configurator
Speedybee App: iOS 10.0+; iPhone 4S, iPad3; Androd 4.3+
Output power: 0dBM
Sensitivity: -94dBM
External interface: BROADCAST SWITCH, TX, RX, 3-5V DC Input, GND
Transmission speed: Bidirectional 1K/S
bluetooth protocol: bluetooth Specification V4.0 BLE
Transmission distance: 30 meters
Frequency range: 2400MHz-2483.5MHz (2.4G ISM Band)
Baud rate: 2400, 4800, 9600, 14400, 19200(default), 28800, 38400, 57600, 76800, 115200, 230400
Working voltage: 3.3V-5.0V
Working current: 8.3mA-10mA
Weight: 1.4g
Size: 27*15*4.5mm
|
| 110DB BB Alarm Buzzer |
Working voltage: 5V
Standby battery: lipo 4.2V 100mah
Loudness: 110DB
Size: 36 * 36mm
Weight: 8g
|
| Dalprop Cyclone T5046C propeller |
Size: 5046 5x4.6
Mounting hole: 5mm
Color: transparent purple & transparent white
Quantity: 4 pairs (2 pairs of transparent purple + 2 pairs of transparent white)
|
| Lipo Battery |
Not included
Recommend 4-6S 1500mah-1800mah
|
X220HV English Manual
Package included:
1 x X220HV frame kit
2 x 2306 1650KV brushless motor CW
2 x 2306 1650KV brushless motor CCW
1 x 4 IN 1 45A BLHeli_S ESC
1 x Customized F4 flight controller Built-in OSD
1 x Foxeer arrow mini pro 2.5mm 650TVL camera
1 x 5.8G 40CH 0mW/25mw/200mw/600mw VTX Switchable
1 x 110DB BB alarm buzzer
1 x SpeedyBee bluetooth module
1 x 45mm RP-SMA male antenna RHCP
2 x 200*20mm battery strap
1 x 30° camera mount compatible with Runcam 3 3S Gopro session
2 x Dalprop cyclone T5046C transparent white CW
2 x Dalprop cyclone T5046C transparent white CCW
2 x Dalprop cyclone T5046C transparent purple CW
2 x Dalprop cyclone T5046C transparent purple CCW
10 x 2.5*100mm nylon strap black

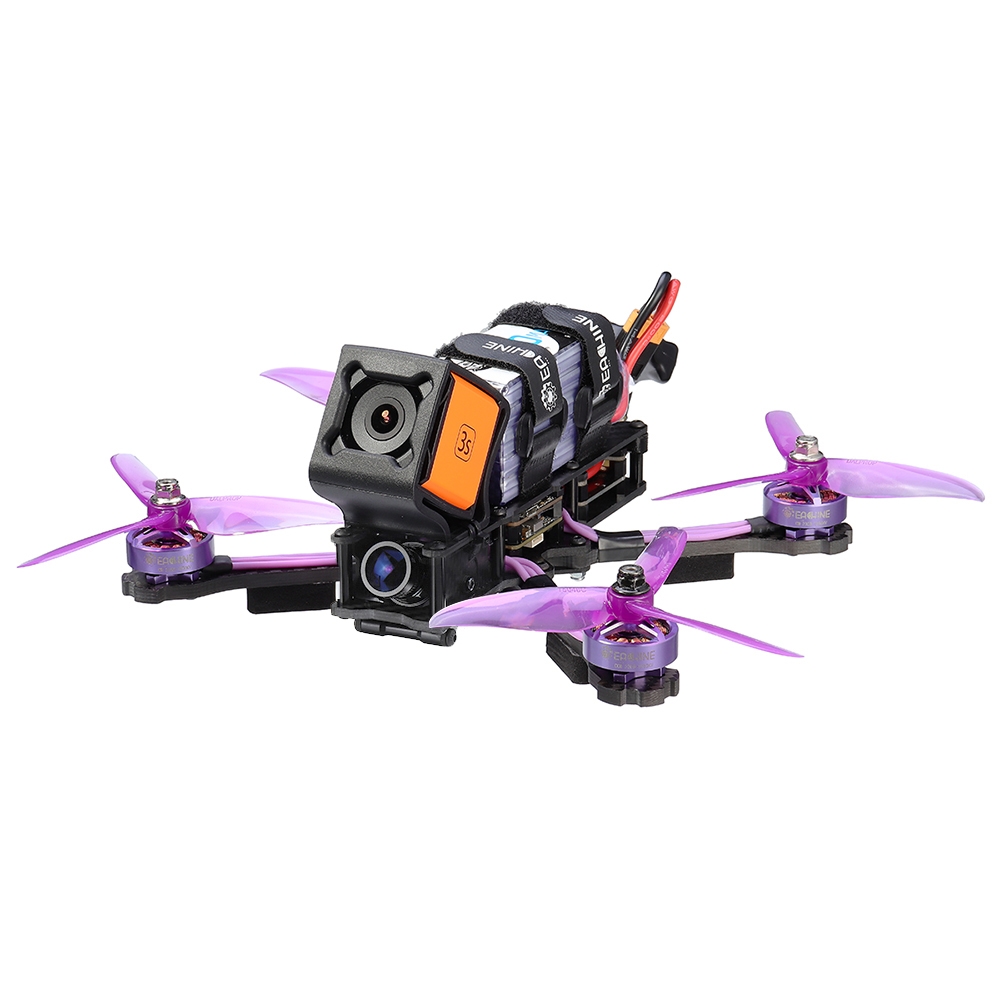

(Package doesn't include Runcam 3S, the Runcam 3S on the pictures for reference only.)
(Package doesn't include Runcam 3S, the Runcam 3S on the pictures for reference only.)
