Eaglepower SA1807 1807 2300KV 2-3S Brushless Motor for RC Drone FPV Racing
Specification:
Brand Name: EaglePower
Model: SA1807
Item Name: 1807 2300KV 2-3S Brushless Motor
KV: 2300KV
Input Voltage: 2-3S Lipo Support

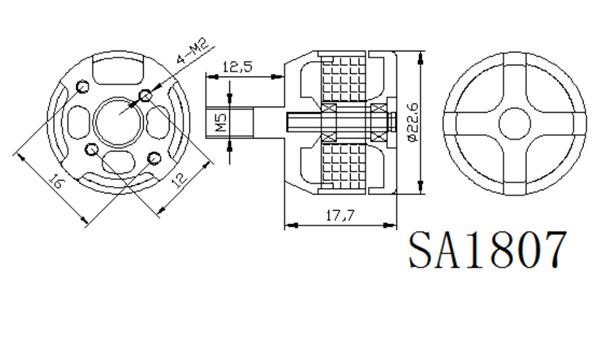

Shaft Diameter: M5
Motor Width: 22.6mm
Motor Height: 17.7mm
NO-Load Current: 0.5A@12V
Max. Con. Current: 13A
Max. Con. Power: 150W
Internal Resistance: 0.158Ω
Weight: 21g ( Including cable)
Usage: Used for 200/ 210/ 250 Racing Drone
Testing Table:
Lipo BatteryPropellerCurrent
(A)Pulling Force
(g)Power
(W)Efficiency (g/W)Note3S404016511.15.8559 211022.24.9550 314533.34.3544 417544.43.941440â 5Min.521055.53.783846â 5Min.623566.63.5285 726577.73.4106 103551113.1982 50451.511516.656.9069 318533.35.5556 4.524049.954.8408 629566.64.429442â 5Min.7.533083.253.964048â 5Min.937599.93.7538 10.5435116.253.7323 11450122.13.6855
Package Included:
1x EaglePower SA1807 2300KV Motor
