EMAX PDB0512 V2 Mini Power Hub Power Distribution Board with BEC Output 5V/12V for FPV Multicopter
Specifications:
Brand name: EMAX
Item name: Power Distribution Board
Item NO.: PDB0512 V2
Input voltage: 2-6S Lipo
2 BEC outputs: 5V & 12V
Output current: 2-3A every output
Dimension: 35*35mm
Net weight: 6.9g

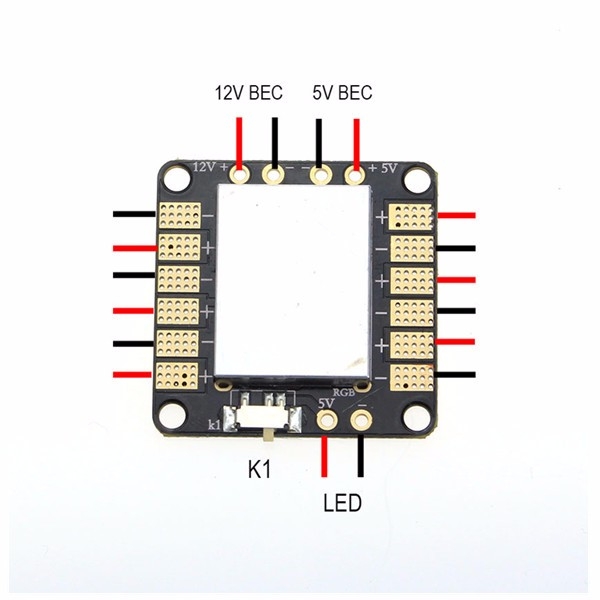

LED output: LED output goes through K1 switch and connects to power supply. Please pay attention to the input voltage of the LED while connecting a LED.
Features:
1. This power distribution board features with 2 BEC outputs. With extra-thick copper foil, ENIG surface, it supports a current of up to 100A. 12V BEC provides power for brushless gimbal, 5.8G FPV transmitter or FPV camera, while 5V BEC provides power for flight controller, GoPro etc.
2. There is also a switchable 5V output that's perfect for LEDs.
Package Included:
1 X EMAX Mini Power Distribution Board
