Specification:

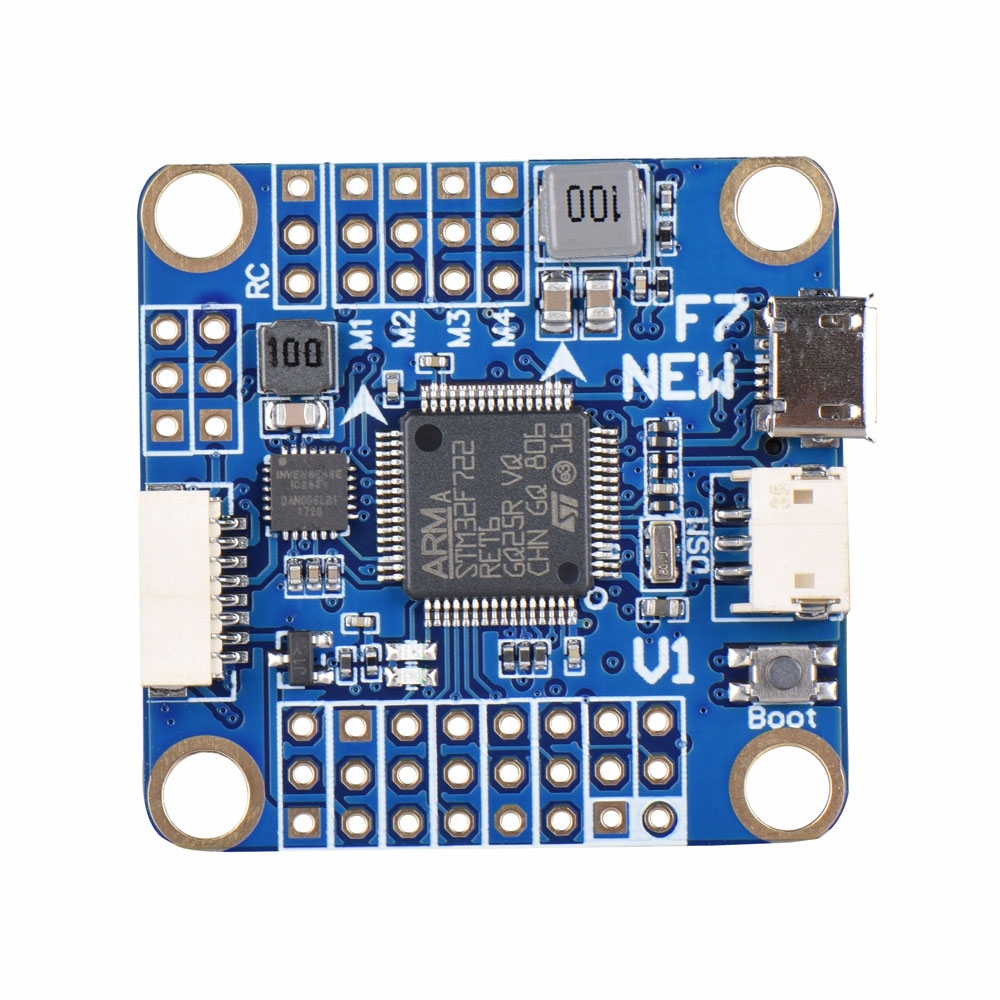

Item name: F7 Flight Controller
Processor: STM32F722
Sensor: ICM20689
OSD video overlay: AT7456E
Built-in LC filter
Receiver interface: DSM and IBUS, PPM, SBUS
LED_Strip interface
BB ring / buzzer interface
Support SD card black box (self-supplied SD card)
Built-in 5V 3A BEC
Supply voltage: 2-6S (7.4V-25.6V)
ESC signals support Dshot, Oneshot, Multishot, PWM
Receiver configuration:
SBUS signal configuration RX2 as input interface
DSM/IBUS receiver input configuration RX2 as input interface
Board size: 36*36MM
Screw hole spacing 30.5*30.5MM
Board weight: 7.3 grams
Package Included:
1 x F7 V1 flight controller
4 x M3*6MM double-pass nylon column
4 x M3*8MM screws
4 x M3 shock absorber ball
1 x 8P*1.0MM plug wire
