Description:
Brand Name: Feiyu Tech

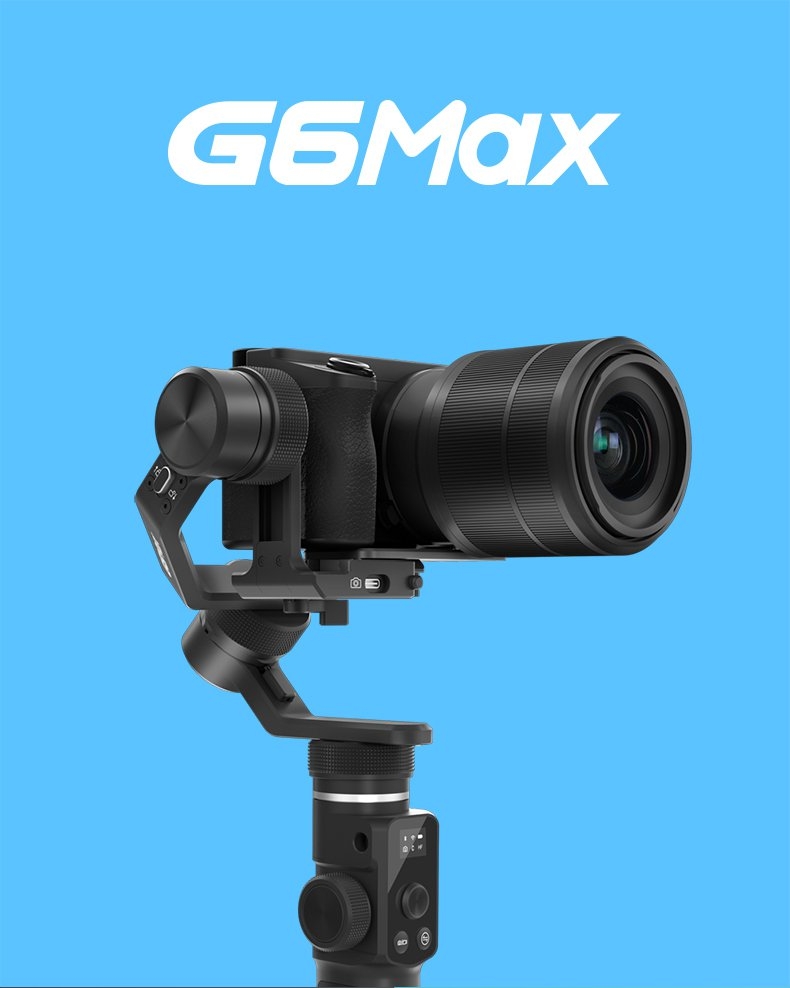

Item Name: G6 Max
Bearing Capacity: 1.2kg/2.65lb
Weight: 665g (including built-in battery, no camera, mobile phone holder and other carriers)
Battery: Built-in non-removable, 2200mAh, 7.4V, supports direct charging from the Type C port at the handle
Life Time: 9 hours
Charging Time: About 3 hours (5V/2A)
Waterproof: Anti-splash
Power on/off: Press and hold the power button on the right side. After the prompt tone is heard, the “FY” indicator on the display shows the complete and then release.
Movable Angle:
Pitch Angle: 280° (limited position)
Roll Angle Action Angle: 330 ° (limited position)
Heading Angle Action Angle: 360° (infinite position)
Features:
- Load-bearing upgrade to 1.2KG, easy to carry for Sony a7 series, adapt to more ILDC, compact digital camera, sports camera, mobile phone.
- Sliding anti-offset quick release plate design, the camera is ready to use.
- Three-axis physical motor lock design, more convenient for leveling and storage.
- Ergonomic control handle design, tiger mouth force & labor saving mode, single hand and control is more convenient and labor-saving.
- OLED display upgrades are increased, and key states such as cloud power, working mode, and camera mode are clear at a glance.
- Added cable control type C interface, real-time control camera photo/recording, zooming silky smooth.
- Multi-function knobs are used to upgrade and provide a more precise operation feel.
- One-click enters the Pirates space type automatic rotation, which can be rotated at any angle.
- One button to enter/exit the vibrato vertical shooting, no need for third-party vertical board and repeated leveling, saving time and effort.
- Guided into the track delay, you can set the shooting path, APP sets the long exposure stay and shooting interval, with the line control to easily achieve long exposure track delay.
- Bare-metal anti-splash design, and for Gopro/waterproof mobile phone to fight side by side in the rain.
- Adaptive motor is more precise and the strength is adjusted within 2s.
- Customize the trigger button and function button to set each working mode, which is more suitable for the user's personal habits.
- Optional wireless radio kit for high-quality sound collection, making VLOG, vibrato video and other sounds interesting.
- There are 1/4 threaded holes on both sides of the bottom & handle to realize the possibility of more accessories expansion.
- 2200mAh large capacity battery, providing 9h strong sports life.
- Single-axis/two-axis/three-axis 360-degree follow without dead band, suitable for most shooting scenes.
Compatible Equipment:
- For SONY: α7sII/7SM2 (55mm/1.8), α6300/α6400/α6500 (28-70mm), QX1 and other ILDC; RX100 IV/ RX100 V /RX100VII/RX100 M5A/ RX100M6/ RX100M7, RX1RII, WX500, HX90, etc. .
- For Canon: M50, M5, M6, G7X, 100D and other ILDC.
- For Canon: M50, M5, M6, G7X, 100D and other ILDC.
- For Panasonic: G6, G7, GH4, GH5, GX85, LX10 and other SLR, ILDC and card machine.
- For Other brands ILDC: Such as BMPCC 1 generation, Fuji XT20, D-lux, etc.
- Sports Camera: RX0, SJ J6legend, for GoPro 5/6/7, FDR-X3000R, HDR-AS50R, etc.
- Sports Camera: RX0, SJ J6legend, for GoPro 5/6/7, FDR-X3000R, HDR-AS50R, etc.
- For Mobile Phone: The width of the adapted Mobile phone is 54-88mm (standard phone fixture)
- Judgment reference: camera height ≤ 105mm (including protruding eyepieces), camera fixing hole to the right side ≤ 87mm, lens direction up to about 125mm.
Install Camera / Mobile Phone (before boot):
Camera: Screw the camera onto the quick release plate, slid into the fixing plate from left to right, and slide it into place to tighten the safety lock.
Mobile Phone: If you install a mobile phone, you need to use the standard mobile phone holder.
Motion camera: If you install it for Gopro, you need to use the standard T-type adapter to turn out the 1/4 inch screw hole and fix it to the hand screw.
Balance Adjustment (before booting):
* Three-axis unlocking: G6Max has a three-axis motor lock. Please unlock the pitch/roll motor lock first, expand the stabilizer to the normal shape, lock the motor lock and install the camera. After the installation is completed, the three-axis motor lock must be unlocked to level the center of gravity, and then turned on.
* Leveling the pitch axis: The balance of the lens vertically upwards/horizontal forward, the camera lens stops at any angle and does not fall, indicating that it has been leveled.
* Leveling the roll/heading axis: Slide the left and right positions through the sliding arm to level the center of gravity, and then tighten the hand-tightening screw after trimming.
How to Charge:
Use the USB C cable to charge directly from the Type C port. The charging head specification is recommended for 5V/2A. Fast charging is not supported.
When charging, the screen will continue to flash the charging indicator, and when it is full, it will display the full charge for the charging indicator.
Package Included:
1x USB C Data Charging Cable
Package Included:
1x USB C Data Charging Cable
1x Adapter Base for Gopro
1x Long Rod Screw
1x Mobile Phone Clip
1x Control Cable For Sony (Type C to Multi)
1x Control Cable For Panasonic(TYPE C to DC2.5)
1x Tripod
1x EPP Storage Bag
