Specification:
Brand: Flycolor

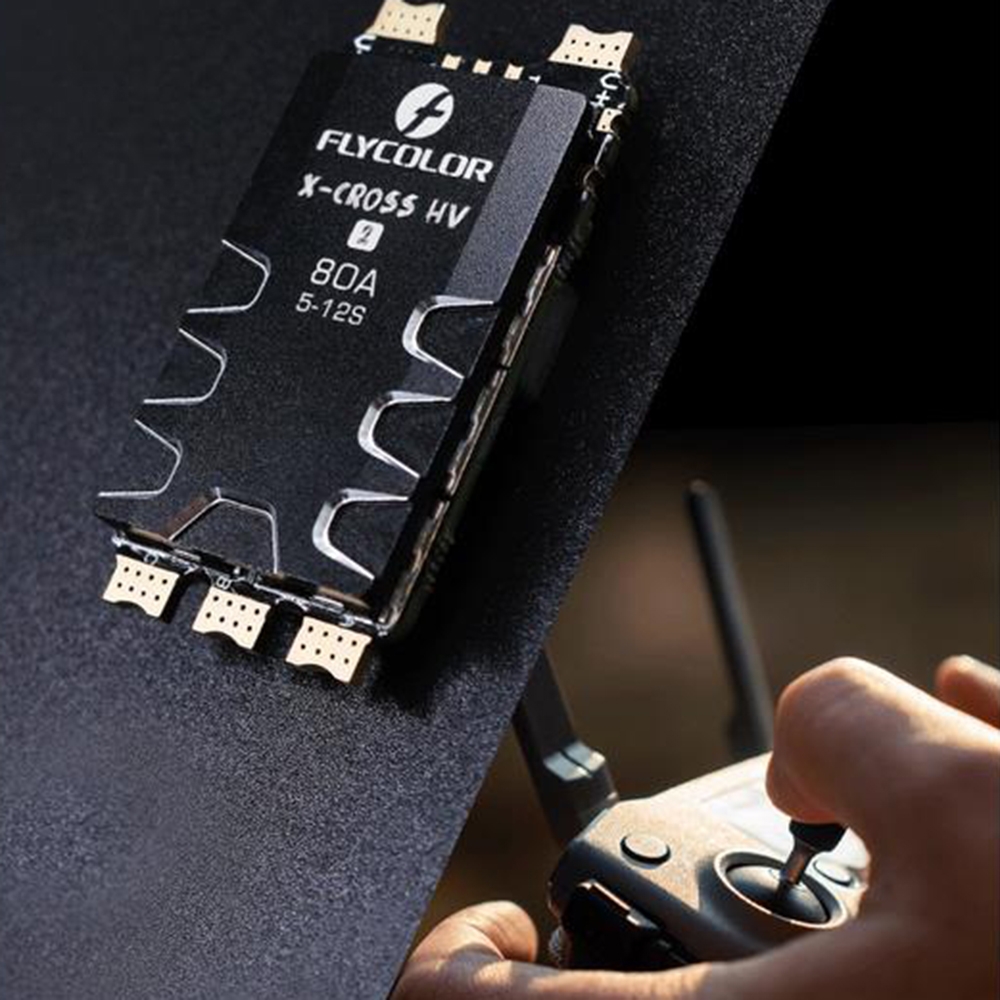

Item Name: X-Cross HV2 Brushless ESC
Size: 55*28*10mm
Weight: 25.5g
Con. Current | 80A |
Burst Current | 100A |
BEC | NO |
Lipo | 5~12S |
LED | NO |
Applied to | 650-1200 X-Cross |
Features:
1. High-performance MCU, ARM 32-bit Architecture core MCU, operating frequency up to 48MHz.
2. Multiple protection functions: temperature protection, low speed power protection, low voltage protection, current protection, blocking protection.
3. Support multiple protocols: support all Dshot digital signals, PWM, Oneshot125, Mulshot protocols.
4. Telemetry return: it can be sent back via TX special line/signal line.
Package Included:
1 X Flycolor X-Cross HV2 Brushless ESC
