Overview:
As the newest member of the FMS multi-purpose aircraft lineup,the 1220mm Ranger retains all of the fantastic features that pilots have come to expect from FMS- stable flight characteris-tics, easy to assemble airframe and realistic,general-aviation inspired design.Built with ultralight EPO foam, the large, high-winged airframe configuration gives the Ranger low wing-loading and extraordi-nary amounts of lift, even at slow speeds. Robust plastic struts give extra strength to the wings during aerobatic maneuvers and the patented high-strength tricycle landing gear makes ground handling a breeze.A great aircraft is nothing without a great, dependable power system- FMS has equipped the Ranger with a 3136/1200KV outrunner motor with 20A Predator ESC, which allows the Ranger to climb almost vertically on demand! In the box, the Ranger comes with two sets of landing gears- a high-strength metal landing gear for ground operations and a pair of floats with an integrated rudder for water operations.Designed with a yellow and white high-visibility color scheme,the Ranger can always be easily orientated even in gloomy,overcast weather.Like the Super-EZ and the Kingfisher, the Ranger is designed with ease of assembly in mind. Requiring only 6 (wheeled landing gear) or 10 (floats) screws to completely assemble, the longest wait time is the time it takes to charge the battery!
Specifications:
Brand Name: FMS
Item Name: 1220mm Ranger
Material: EPO
Wingspan: 1220mm
Overall Length: 947mm
Wing Area: 25.4dm²
Wing Load: 39.4g/dm²
Flying Weight: ~1200g
Motor Size: 3136-KV1200
ESC: 20A XT60 Plug
Servo: 9g*5
Prop Size: 10*5, 2-blade
Battery: 3S 11.1V 1300mAh 25C LiPo
Radio: 2.4G 4 Channel
CG (center of gravity): 450-60mm from leading edge
Aileron: Yes
Elevator: Yes
Rudder: Yes
Flaps: No
Retracts: No
Approx. Flying Duration: 10 minutes
Minimum Age Recommendation: 14+
Experience Level: Beginner
Recommended Environment: Outdoor
Assembly Time: 3-10 minutes
Is Assembly Required: Yes
Features:

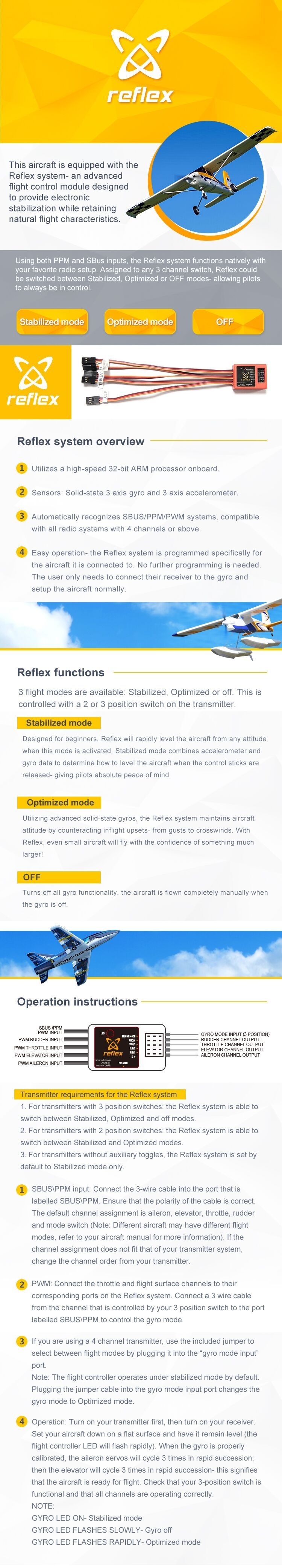

- Equipped with the Reflex system to provide electronic stabilization.
- High-spec power system: 3136/1200KV motor, Predator 20A ESC.
- Two landing gear types included- Tricycle and floats!
- High strength, lightweight metal landing gear for all-ter-rain operations.
- Screw-together and twist-lock assembly,completed in 3-10 minutes.
- 10-15 minute flight times (RTF specification)
- One piece horizontal stabilizer for precise flight character-istics.
English Manual, Click Here
Package Included:
1x FMS 1220mm Ranger EPO 3D Aerobatic RC Airplane RTF With Floats
