Specification:

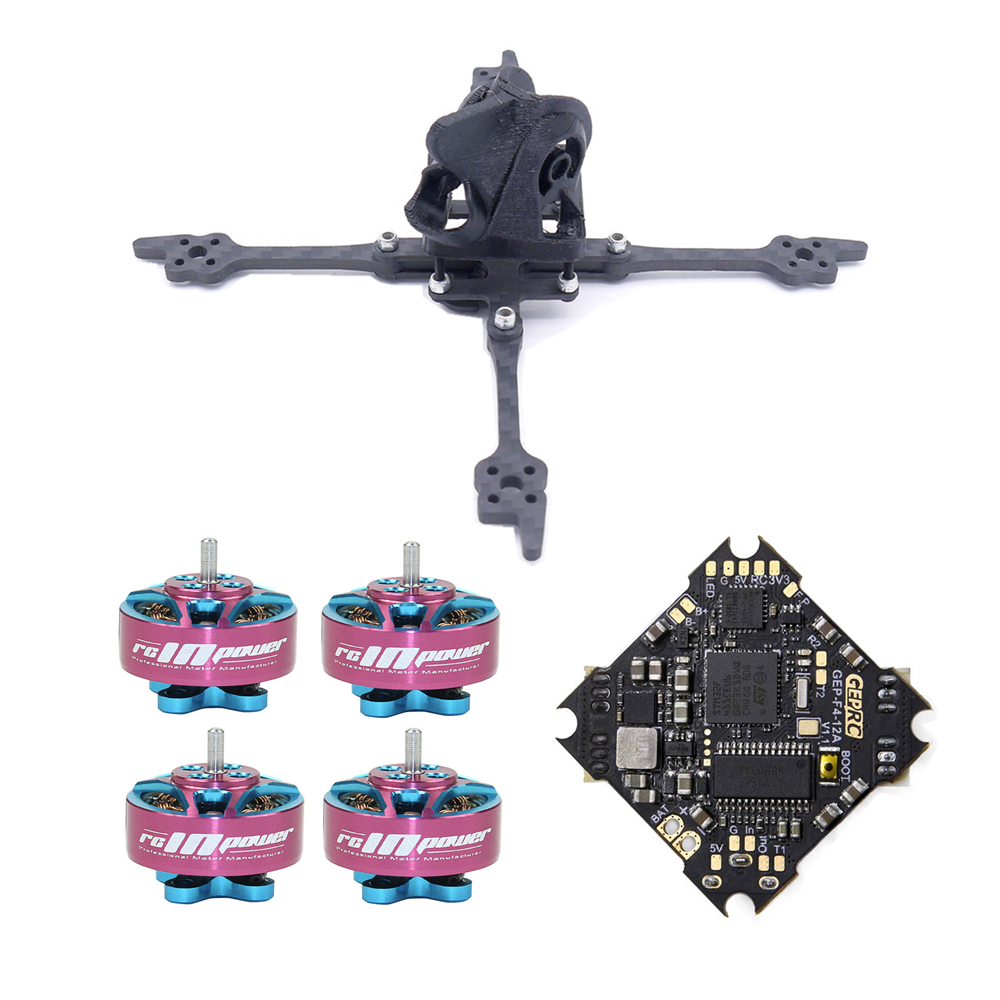

Item Name: 125mm Frame & F4 FC 12A ESC & 1204 Motor Combo
Application: for DIY Building 2.5-3 Inch Toothpick FPV Racing Drone
FONSTER Kpro V2 125mm Frame Kit ( Click HERE to know more) | Brand Name: Fonster Model: Kpro V2 Wheelbase: 125mm Material: Carbon Fiber & 3D Printing TPU Arm Plate Thickness: 3mm Other Plate Thickness: 1.5mm Color: Black Weight: 19.5g |
Geprc GEP-12A-F4 V1.1 FC AIO 12A ESC ( Click HERE to know more) | Brand Name: Geprc MCU: STM32F411 IMU: MPU6000 gyro/accelerometer (SPI) OSD: BetaFlight OSD w/ AT7456E chip Baro:NO BEC Output: 5V@1A Integrated LC Filter Firmware target: MATEKF411 ESC MCU: BB21F16G Continuous current: 12A Input:2-4s lipo Supports Dshot600 ,Oneshot,Multishot Current meter: 210 Target: G_H_30 Size: 28.5Ã28.5mm board,25.5mm mounting holes (M2) Installing Hole: 25.5Ã25.5mm, M2 Weight: 5.6g |
RCINPOWER GTS 1204 5000KV Motor ( Click HERE to know more) | Brand Name: RCINPower Model: GTS 1204 Item Name: 1204 5000KV 3-4S Brushless Motor KV: 5000KV Quantity: 4 PC Input Voltage: 3-4S Lipo Configuration: 9N12P Stator Diameter: 12mm Shaft Diameter: 1.5mm Idle Current: 0.95A @10V Max. Con. Power: 89W (3S) Internal Resistance: 125mΩ Max. Current: 6A (3S) Max. Effciency Current: 1.5-2A ( More than 80%) Motor Dimension: 16.1x10.9mm ( Dia. x Len) Weight: 6g Quantity: 1 PC Wire: 0.8mm silicone wire Line length: 8cm |
| Recommend Propeller ( NOT Included) | Gemfan Flash 2540 2.5 Inch 3-Blade Propeller ( ClickHereBuy it together) iFlight Nazgul T3020 3 Inch 2-Blade Propeller ( Click Here Buy it together) |
| Recommend FPV Camera ( NOT Included) | RUNCAM NANO 2 ( Click Here Buy it together) |
| Recommend Lipo Battery ( NOT Included) | 3S 450mAh Lipo Battery |
Package Included:
1x FONSTER Kpro V2 125mm Frame Kit
1x Geprc GEP-12A-F4 V1.1 FC AIO 12A ESC Board
4x RCINPOWER GTS 1204 5000KV Motor
8 x Screw
