FT48X 5.8G 48CH 0.25/25/200/600mW Adjustable Video Transmitter FPV Racer VTX Raceband - 32.99 €

Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)

Free shipping aviable, Registered postage from 25 €

Video

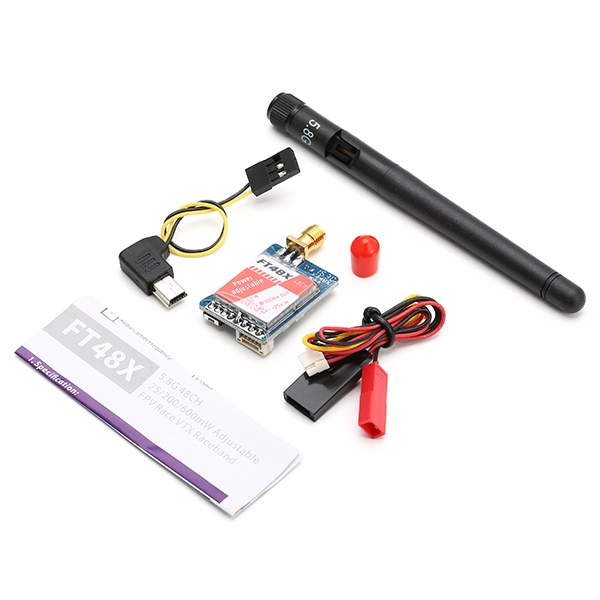

FT48X 5.8G 48CH 0.25/25/200/600mW Adjustable Video Transmitter FPV Racer VTX Raceband

Descripiton: User Manual

1 Transmitting Frequency: ISM 5.35GHz-5.95GHz 48 CH 2 Operating Voltage : +6.5V~+25.0V 3 Supply current : 250mA±20mA @+12V @600mW 4 Video Input Level: 1V±0.2Vp-p/75Ω 5 Audio Input Level: 0.5~2.0Vp-p/10KΩ 6 TV System: PAL/NTSC/SECAM (AUTO) 7 Audio Carrier Frequency: 6.5MHz 8 RF Output Power: 0.25mW(-6dBm±0.5dBm)
25mW(14dBm±0.5dBm)
200mW(23dBm±0.5dBm)
600mW(28dBm±0.5dBm) 9 Antenna Connector: SMA Connector 10 Weight: 9g 11 Dimensions (L x W x H): 31x22x8mm 12 Operating Temperature: -10â~+85 â

Frequency:
CH Band CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8 A(A) 5865MHz 5845MHz 5825MHz 5805MHz 5785MHz 5765MHz 5745MHz 5725MHz b(B) 5733MHz 5752MHz 5771MHz 5790MHz 5809MHz 5828MHz 5847MHz 5866MHz C(E) 5705MHz 5685MHz 5665MHz 5645MHz 5885MHz 5905MHz 5925MHz 5945MHz d(F) 5740MHz 5760MHz 5780MHz 5800MHz 5820MHz 5840MHz 5860MHz 5880MHz E(R) 5658MHz 5695MHz 5732MHz 5769MHz 5806MHz 5843MHz 5880MHz 5917MHz F 5362MHz 5399MHz 5436MHz 5473MHz 5510MHz 5547MHz 5584MHz 5621MHz

Features:

48 Channel,with Raceband

RF power can be adjusted: 25/200/600mW RF Power output

Large input voltage range ;

Not affect by 2.4GHz R/C Radios ;

Integrally molded case,Mini size, Power indicator, easy to carry ;

LED display channel; LED display RF Power;

Key mode control channel,group and RF Power Adjusted;

5V output with 300mA automatic recovery fuse and LC filter!

Package Included:
1 x Transmitter
