Geprc 20x20mm Stable Flytower 20A BL_S ESC & Omnibus F4 Flight Controller & 48CH 25/100/200mW VTX - 75.99 €


Geprc 20x20mm Stable Flytower 20A BL_S ESC & Omnibus F4 Flight Controller & 48CH 25/100/200mW VTX
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

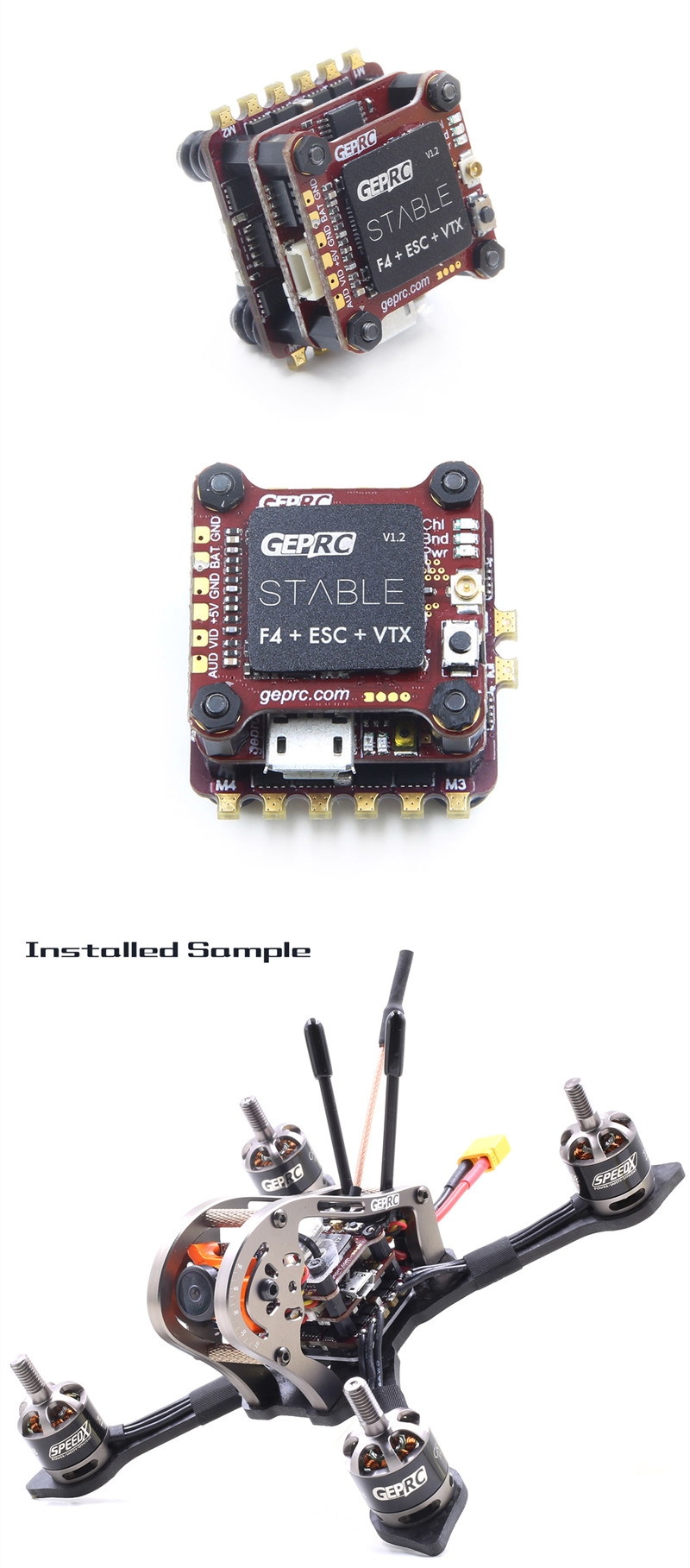

Geprc 20x20mm Stable Flytower 20A BL_S ESC & Omnibus F4 Flight Controller & 48CH 25/100/200mW VTX for RC Drone



Specifciation:
Brand Name: Geprc
Model: Stable Mini Flytower F4-20
Item Name: 20x20mm 20A BL_S ESC & Omnibus F4 Flight Controller & 48CH 25/100/200mW VTX Flytower

Size:27×27mm
Installation height:20mm
Screws:M2×25mm
Mounting Hole: 20x20mm
Recommended the plate thickness: 2-4mm
Weight: 9.5g

48CH Off/25/100/200mW Switchable VTX (Top Level)
VTX Power: OFF/25/100/200mW
CH: 48CH
VTX Power input: 2-6S (using VTX layer alone)
Video Camera Voltage: 5V

Frequency Table:
CH1CH2CH3CH4CH5CH6CH7CH8Band A58655845582558055875586558455725Band B57335752 5771 5790 5809 5828 5847 5866Band C
5705
5685 5665 56455885 5905 5925 5945Band D
5740
5760 5780 5800 5820 5840 5860 5880Band E
5362
5400 5436 5473 5510 5547 5584 5620Band F56585695 5732 57695806584358805917
Omnibus F4 Flight Controller ( Middle Level)
Firmware: betaflight 3.2.1 (OMNIBUSF4SD)
OSD Firmware: Betaflight OSD
Video Camera Voltage: 5V only
Support Voltage monitor, buzzer and LED
Support DSMX, SBUS and PPM Receiver
Board Size: 25×25mm ( 20x20mm Mounting Hole)
Weight: 2.3g

20A BLheli_S 4 In 1 Brushless ESC ( Bottom Level)
Input Voltage: 2-4S (12A)
Con. Current: 20A
Peak Current: 30A (5s)
Oneshot 125/42 : YES
Dshot 150/300/600: YES
BlheliSuite Configurable: YES
Firmware Version: BLHeli_S/Dshot 150/300/600 16.6(G_H_30/L_H_0)
Board Size: 27×27mm
Weight: 3.3g
PDB: Integrated
Battery Monitoring:Integrated
FC Power: Integrated

Package Included:
1x F4 Flight Controller Board
1x VTX Board
1x 20A 4 In 1 ESC
3x Cable
1x Bag of screws
