Specification:
Brand name: GEPRC

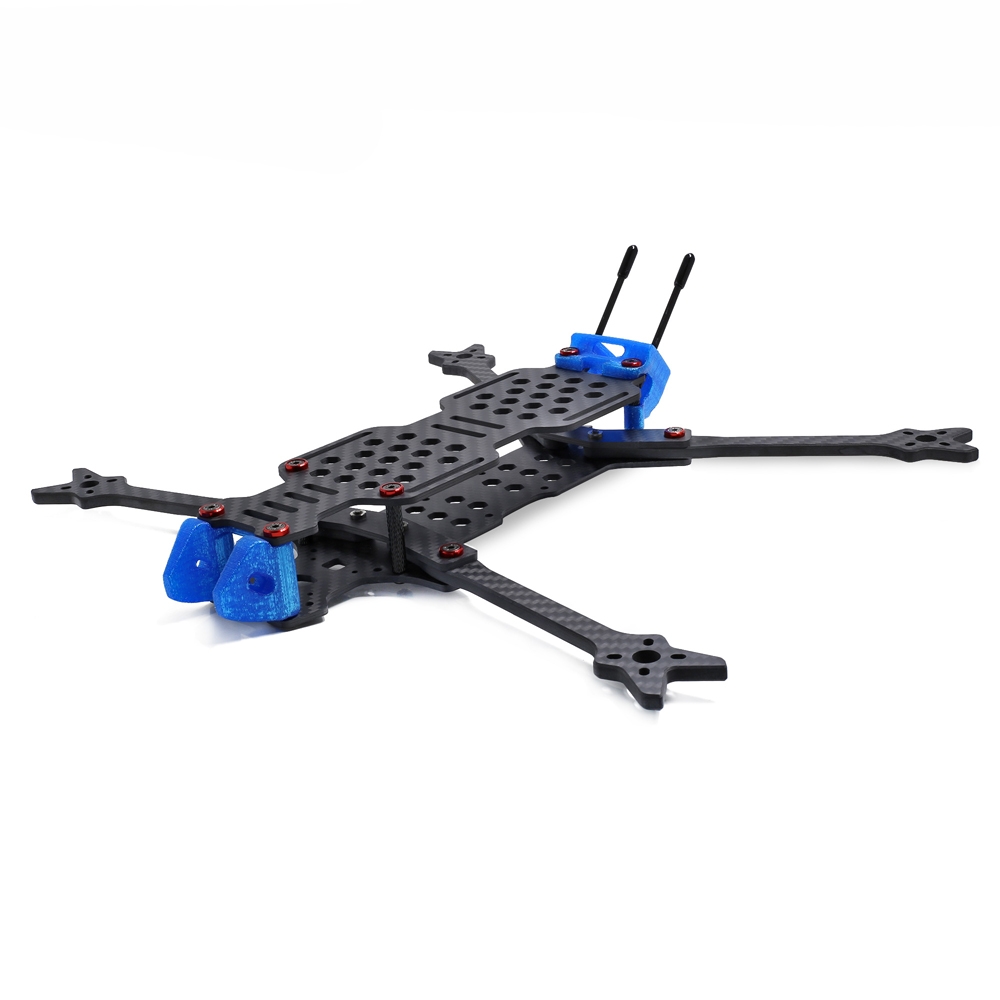

Item name: GEP-LC7 Frame Kit
Wheelbase: 315mm
Maximum support paddle: 7 inches
Camera lens support size: 19mm
Top board thickness: 2.5mm
Bottom board thickness: 2.5mm
Arm thickness: 5mm
Weight: 153g
Recommend parts (Not included):
Flight Control: F7/F4/F3/Kiss/RF ( 20x20 / 30.5x30.5mm mounting holes)
Motor: 2207-1500~1700KV / 2306-1500~1700KV / 2407-1300~1700
ESC: 40A-60A
Propeller: 6 / 7 Inch
Battery: 6S 2200mAh ~ 6S 2600mAh
Package Included:
1 x 3D print lens protector
1 x 3D printed tail antenna, GPS protector
1 x 2.5mm top plate
1 x 2.5mm low board
2 x 5mm front arm (long section)
2 x 5mm rear arm (short section)
1 x 2.5mm front and rear splints
8 x M3 red countersunk head gasket
6 x M3*25mm black textured aluminum column
4 x YFS round head screw M3*12
6 x YFS round head screw M3*8
4 x YFS flat head screw M3*10
6 x YFS flat head screw M3*14
8 x extruded nut
2 x battery cable tie
8 x tripod shock absorption
2 x battery anti-skid shock absorbing silicone
2 x 2.4g antenna protection tube
2 x battery mat
