GEPRC GEP-OX-S5 Stretch X 230mm Wheelbase Frame Kit Arm 4mm 5mm for RC FPV Racing Drone - 49.00 €


GEPRC GEP-OX-S5 Stretch X 230mm Wheelbase Frame Kit Arm 4mm 5mm for RC FPV Racing Drone
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

GEPRC GEP-OX-S5 Stretch X 230mm Wheelbase Frame Kit Arm 4mm 5mm for RC FPV Racing Drone

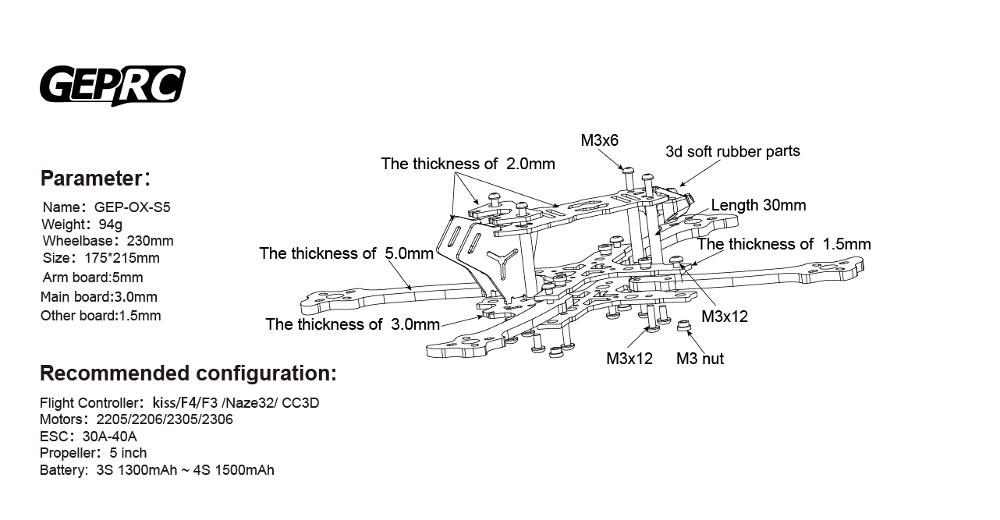

Specification:
Brand name: GEPRC
Item name: GEP-OX-S5 Frame Kit
Weight: 81g/94g
Wheelbase: 230mm
Props Size: 5inch
Size: 175*215mm
Arms board: 4mm/5mm
Base board: 3mm
Side board: 1.5mm

Features:
1. Lightweight design enables the aircraft to have stronger power
2. Three different types of aircraft arms are designed for a variety of flight requirements. Narrow arms are designed for stronger airflow passage
3.4mm and 5mm different arm thickness
4. The micro-sized lens is installed with side plates to make the frame fit to the racing equipment and the weight is lighter.The screw hole position of lens side plate can also be adjusted freely
5. High-precision CNC for all 3K carbon upgraded fiber board, and 12.9 grade YFS aromatic screws.Strong frame
6. The flight control position has a hole position of 20*20 and a hole position of 30.5*30.5, and is equipped with a shock absorbing silica gel column, which enables the flight control to have better shock absorbing treatment.
7. Multiple 3D printing parts, equipped with a 35 degree dip of Session mount and fixed tail antenna
8. Two battery installation methods can make it more convenient for players to choose

Recommended:
Flight Controller: Kiss/F3/F4/Naze32/CC3D
Motors: 2204/2205/2206/2207/2305/2306
ESC: 20A-50A
Propeller: 5inch
Battery: 3S 1300mAh - 5S 1550mAh

Package Included:
1 x GEP-OX-S5 Frame Kit
