GEPRC GEP-ZX6 225mm Carbon Fiber Frame Kit with 12V 5V PDB Board - 52.99 €


GEPRC GEP-ZX6 225mm Carbon Fiber Frame Kit with 12V 5V PDB Board
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

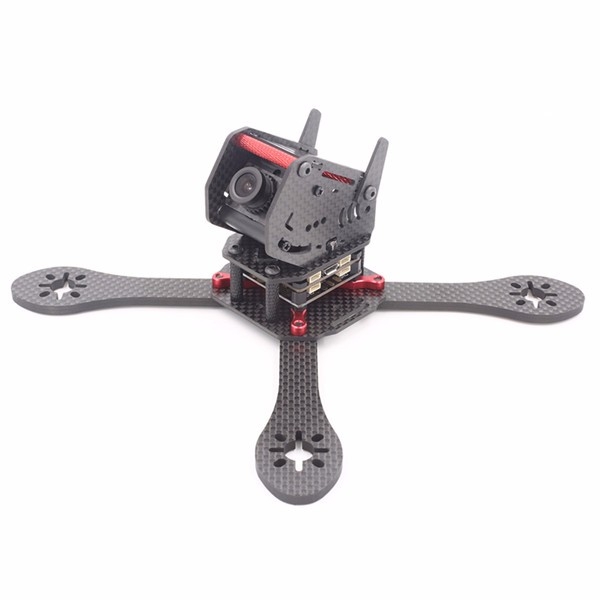

GEPRC GEP-ZX6 225mm 3K Carbon Fiber Frame Kit with 12V 5V PDB Board











Specification:
Brand Name: Geprc
Item Name: GEP-ZX6 225mm Carbon Fiber Frame Kit with 12V 5V PDB Board
Model: GEP-ZX6
Wheelbase: 225mm
Size: 215mm x 215mm
Arms board:4mm
Main board:2mm
Other board: 1.5mm
Weight: 109g (include Aluminum parts)
PDB Board: Output 5V 3A; 12V 3A


Features:
-3K high strength carbon board to ensure that the framework is strong
-Thanks to one piece of aluminum, The arm is stronger. Quick changing arm
-5inch wheelbase only 190mm,very small
-T-his is “X” layout, Between each arm is 90 degrees. Each direction is very flexible
-The wind resistance is very small, but stay strong
-Forward direction can be selected
-The structure is strong, beautiful and light weight .
-Motor position widened, better protection of motor
-Camera angle adjustable, adjustable 60 degrees
-The lens comes with fixed film, for the market of 95% CCD fixed lens


Recommended Parts:
Flight Controller: F3 /Naze32/ CC3D Flight Control
Motors: 2204/2205/2206/2305 Motor
ESC: 20A-30A ESC
Propeller: 6inch Propeller
Battery: 3S 1300mAh ~ 4S 1300mAh Battery



The fllowing parts are suitable for this frame:

Propeller: 2 Pairs Gemfan Bullnose 6046 6X4.6 Inch PC Propeller
2 Pairs DAL 6045 V2 6 Inch CW CCW Propeller
ESC: FVT LittleBee 20A ESC BLHeli OPTO 2-4S Supports OneShot125
DYS BL30A Mini 30A BLHeli ESC OPTO 2-6s
Motor: KINGKONG 2204 2300KV Brushless Motor
Emax RS2205-2300 2205 2300KV Racing Edition CW/CCW Motor
Flight Control: SP Racing F3 Flight Control Acro 6 DOF/Deluxe 10 DOF
Naze32 10DOF Rev5 MPU6050 Flight Controller
Battery: 3S 11.1V 1300mAh 25C Lipo Battery
Eachine 14.8V 1300mAh 4S 35C XT60 Lipo Battery



Note: The camera showed in the picture was not included.


Package Included:
1x GEP-ZX6 225mm Carbon Fiber Frame Kit
1x PDB
1x T60 Cable
1x GEPRC velco
