Specification:
Brand name: GEPRC

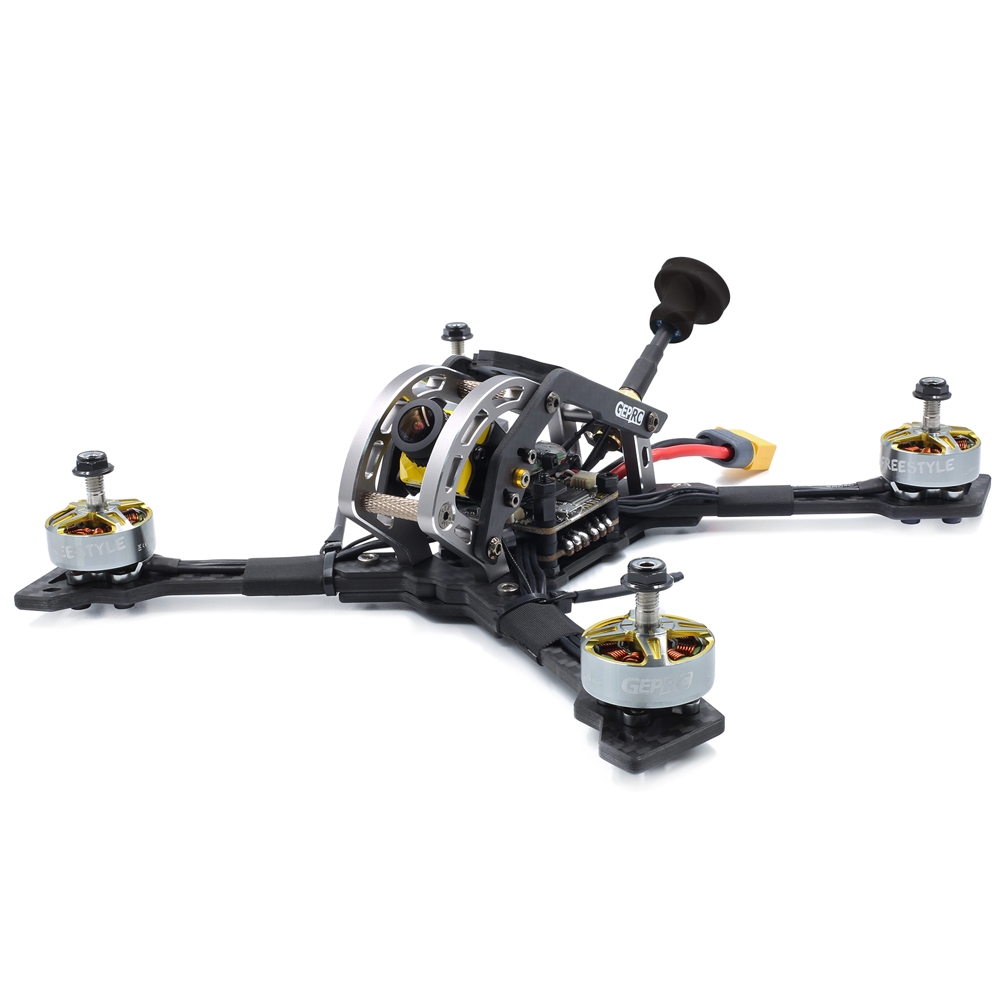

Item name: Mark3 H5 FPV Racing Drone
Model: Mark3
Wheelbase: 225mm
Flight Controller: SPAN F4 BLheli_S 40A Tower
Propeller:GEP5040*3 (10 pairs)
Motor: GR2207.5 2400KV
Firmware: betaflight_3.5.3_OMNIBUSF4SD
Camera: Caddx Ratel 2.1mm
Antennas: Pagoda2
Receiver: Frsky XM+/Frsky R-XSR/without receiver (Optional)
Recommend battery(Not Included): 4S 1300~1550mAh
Weight: 321 grams without battery or props
|
GEPRC GEP-Mark3 H5 Frame kit |
Carbon:Full 3K carbon fiber Twill CNC:High precision CNC 7075 Motor to motor: 225mm Bottom plate: 3mm Top plate: 1.5mm Side plate: 3mm Reinforce plate: 1.5mm Arms plate: 4mm |
| SPAN F4 BL_S 40A Tower |
F4 Flight Controller & 48CH 25/200/600mw VTX Board:
Model: GEP-F405-VTX58600
MCU: STM32F405 MCU
Firmware version: OMNIBUSF4SD
Use MPU6000 as Acc & gyro over SPI Bus
Integrated VTX with audio (48CH) (OFF/25/200/600mW adjustable power video transmission)
STM32 controls OSD chip over SPI in DMA mode, less CPU using, faster rate
TX control ready via Furious FPV / IRC Tramp peripheral protocol
Integrated 5V/3A BEC
Integrated LC Filter
40A 4 IN 1 ESC Board:
Model: GEP-BS40A-4IN1
PDB: Integrated
Battery monitoring: Integrated
FC power: Integrated
Input voltage: 2~5S Lipo
Maximum continuous operating current: 4*40A
Maximum instantaneous operating current: (4*45A(5 Seconds))
Oneshot125/Oneshot42/Multishot modes, the latest Dshot 150/300/600
Firmware version: BLHeli_S/Dshot 150/300/600 16.6(G_H_30)
Size: 36*36mm
Weight: 8.8g
|
Features:
- GEP-mark3 H5 frame, all 3K carbon fiber board and high precision CNC protection, exquisite and strong
- SPAN F4 Tower, Max 5S battery, GR2207.5 2400KV motor
- 10 pairs of gep-5040 propellers, 1 set of 3d-printed motor protection parts
- Use the Pagoda2 antenna to determine the image quality
- Caddx Ratel 2.1mm camera ,for excellent imaging effect
- Tuned by the GEPRC team at the time of delivery, you can fly with confidence
Package Included:
1x Mark3 H5 2-5S FPV Racing Drone
1 x Receiver (Frsky XM+/Frsky R-XSR/without receiver (Optional))
20 x GEP5040 3-blade Propeller (10x CW, 10xCCW)
5x Battery strap
1x Spare Arm
4x 3D Arm Guards
2x Pagoda2 RHCP SMA Antenna
