Global Eagle 480N Gleagle 480N 2.4Ghz 9CH DFC Fuel Oil Nitro RC Helicopter RTF Assembled (Ready to fly) with 9CH Transmitter
Description:
Brand:Global Eagle
Model NO.:480N
Product Name:Fuel Helicopter
Product Material:Carbon Fiber,Alloy
Bare weight:870g
Main Rotor Diameter: 785mm
Tail Rotor Diameter: 175mm
Fuselage size:760*225*110mm
Gear ration: 1:8.17:4.78
Comitter Battery: 4.8V 1300mAH NI-AH (Included)
Fuel: Methanol(Not included)
Transmitter Battery:8*AA(Not included)
Can install GOPRO and PTZ HD Aerial Photography
1800CC large fuel tank support flying 20 minutes
Turbine cooling fan
Global Eagle 18 methanol engine power output 0.66 horsepower
All metel DFC aileron rotor head
Belt drive plate metal tail wave tank
Precision CNC processing metal Double push wave box.
Required: 8*AA Transmitter Battery + Nitro (Not included)
9CH Transmitter:
Size: 183x193x100mm;
Weight: 0.88kg;
Transmission frequency: 2.4GHz ISMBand (2400MHz-2485MHz);
Modulation mode: QPSK;
Channel bandwidth: 5.0MHz;
Spreading mode: DSSS;
Adjacent channel suppression ratio: 38dBm;
Transmit power: ã100mW (Test board),
ã20dBm (3 meter air test);
Working current:ã105mA;
Working voltage: 7.4-15.0V;
Remote conntrol distance: Ground ã900m;
Channel number: 9 channel, 5 channel can be cusyomize;
Simulator mode: Off the radio frequency in this mode to enter the power saving mode;
Display: 28 inch 16 bit true color, Resolution 240x320 pixels;
Support model: All 120 degrees, 90 degrees tilt disx helicopter, all fixed wing, glider, a total of 5 flight modes.
1X KBAR 3-axis Gyro
New Version : 5.3.4 PRO
The Mini KBar with V 5.0 Express software is an innovative
product setting new standards for model helicopters in terms
of flight performance and programming capacity.
Features:
* Easy Start setup via PC or Control Panel
* Programming Assistant (Setup Wizard):
gets you ready for flight in 11 steps
* Fine adjustments can be done at the field in your
transmitter (no PC necessary)
* Ready for online updates as they become available.
Instruction:
* For ALIGN (Or other Brands) T-REX 450 SE/V2, Sport, PRO/PRO V2 , 500 550 600 700 rc helicopter....
Features:
* 100% Brand New!
* 5.3.4PRO latest software version.
* Support satellite.
* Supporting 3Pcs servo cable.
* You can set it via computer or with Android phones via bluetooth.
* You have the latest version, the factory closed online update feature due to the copyright issues , do not upgrade by yourself..
Size(L*W*H) : 30 x 38x 13mm
Weight : about 12g
Package including:
* KBAR 3 Axis Gyro x 1
* 3Pin to 1Pinx3 cable x 1
* 3Pin to 3Pin cable x 2
* USB data cable x 1
* 3M Paste tape x 1.
3X GH-DM95 servo for swashplate
- Model No.: GH-DM95
- Operating Voltage: 4.8-6.0V
- Size: 23x11.5x24mm
- Weight: 12g
- Torque: 1.60kg.cm at 4.8V 2.00kg.cm at 6.0V
- Speed: 0.12sec/60° at 4.8V 0.10sec/60° at 6.0V
- Plug Availbable: FUT,JR
1 x GH-S9650 servo for tail
- Model No.: GH-S9650
- Operating Voltage: 4.8-6.0V
- Size: 34.95x30.01x14.9mm
- Weight: 20g
- Torque: 2.50kgf.cm at 4.8V
- Speed: 0.08sec/60° at no load at 4.8V
- Plug Availbable: FUT,JR
1X GH-08MG servo for Throttle
- Model No.: GH-08MG
- Operating Voltage: 4.8-6.0V
- Size: 23x11.5x24mm
- Weight: 12g
- Torque: 1.60kg.cm at 4.8V 2.00kg.cm at 6.0V
- Speed: 0.12sec/60° at 4.8V 0.10sec/60° at 6.0V
- Plug Availbable: FUT,JR
Package Includes:
1X KBAR 3-axis Gyro
New Version : 5.3.4 PRO
The Mini KBar with V 5.0 Express software is an innovative
product setting new standards for model helicopters in terms
of flight performance and programming capacity.
Features:
* Easy Start setup via PC or Control Panel
* Programming Assistant (Setup Wizard):
gets you ready for flight in 11 steps
* Fine adjustments can be done at the field in your
transmitter (no PC necessary)
* Ready for online updates as they become available.
Instruction:
* For ALIGN (Or other Brands) T-REX 450 SE/V2, Sport, PRO/PRO V2 , 500 550 600 700 rc helicopter....
Features:
* 100% Brand New!
* 5.3.4PRO latest software version.
* Support satellite.
* Supporting 3Pcs servo cable.
* You can set it via computer or with Android phones via bluetooth.
* You have the latest version, the factory closed online update feature due to the copyright issues , do not upgrade by yourself..
Size(L*W*H) : 30 x 38x 13mm
Weight : about 12g
Package including:
* KBAR 3 Axis Gyro x 1
* 3Pin to 1Pinx3 cable x 1
* 3Pin to 3Pin cable x 2
* USB data cable x 1
* 3M Paste tape x 1.
3X GH-DM95 servo for swashplate
- Model No.: GH-DM95
- Operating Voltage: 4.8-6.0V
- Size: 23x11.5x24mm
- Weight: 12g
- Torque: 1.60kg.cm at 4.8V 2.00kg.cm at 6.0V
- Speed: 0.12sec/60° at 4.8V 0.10sec/60° at 6.0V
- Plug Availbable: FUT,JR
1 x GH-S9650 servo for tail
- Model No.: GH-S9650
- Operating Voltage: 4.8-6.0V
- Size: 34.95x30.01x14.9mm
- Weight: 20g
- Torque: 2.50kgf.cm at 4.8V
- Speed: 0.08sec/60° at no load at 4.8V
- Plug Availbable: FUT,JR
1X GH-08MG servo for Throttle
- Model No.: GH-08MG
- Operating Voltage: 4.8-6.0V
- Size: 23x11.5x24mm
- Weight: 12g
- Torque: 1.60kg.cm at 4.8V 2.00kg.cm at 6.0V
- Speed: 0.12sec/60° at 4.8V 0.10sec/60° at 6.0V
- Plug Availbable: FUT,JR
Package Includes:

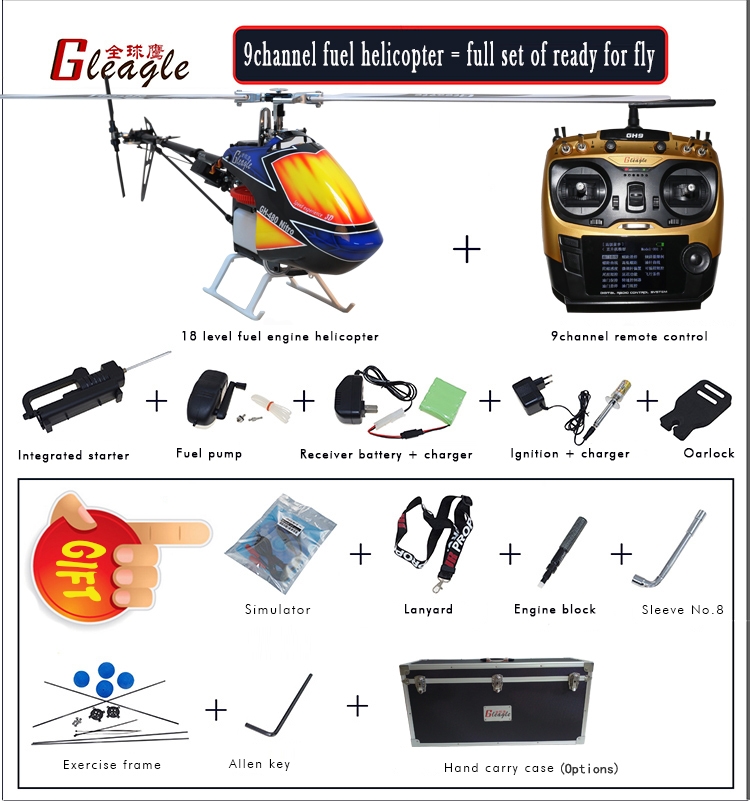

1 x 480N Fuel helicopter assembled (3 X GH-DM95 servo,1 x GH-S9650 servo,1X GH-08MG servo,1X KBAR 3-axis Gyro set)
1 x 9CH Remote controller
1 x Integrated Starter
1 x Fuel Pump
1 x Receiver battery (4.8V/1300mAH /NI-AH) + Charger
1 x Ignition + Charger
1 x Oarlock
1 x Gift bag(aluminum box+simulator software+ RC belt+ engine block+practise frame+ sleeve+ allen key)
1 x Color box or aluminum box packaging (options)
Simulator Software Download: Click here
