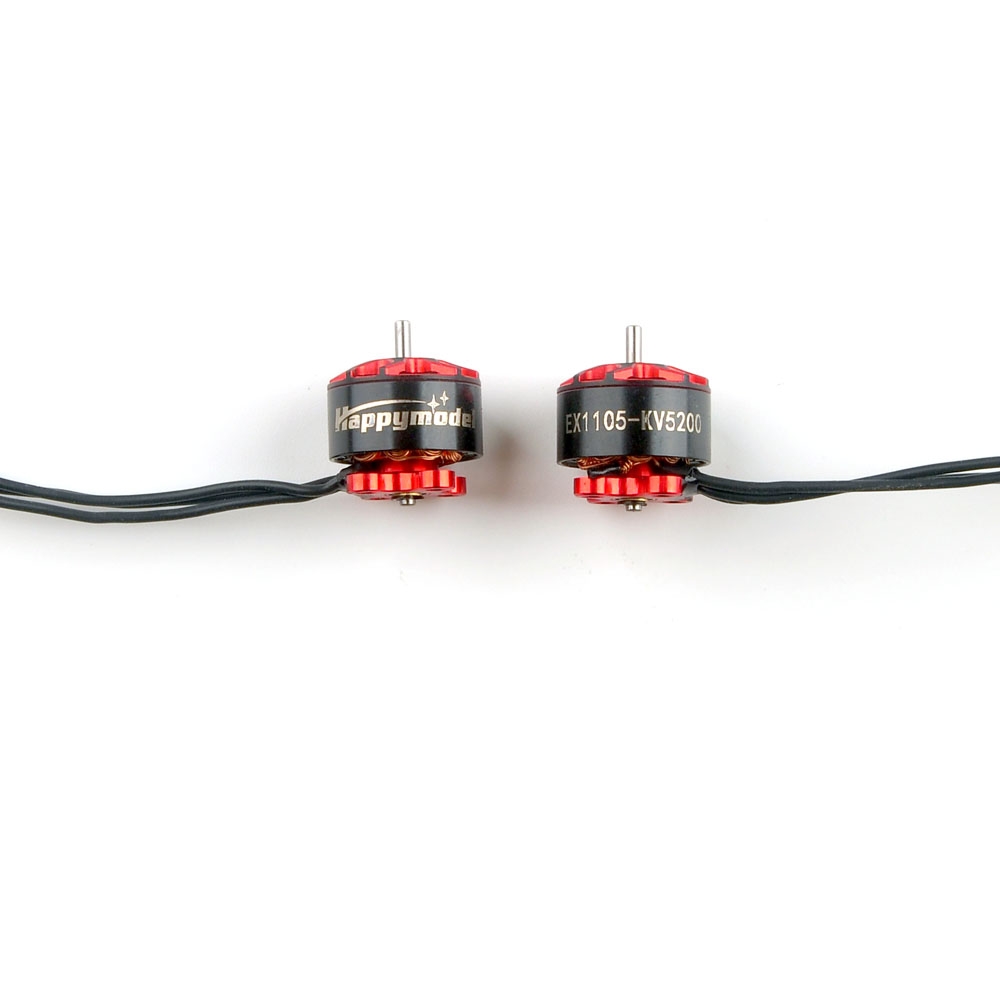

Happymodel EX1105 1105 5200KV 3-4S Brushless Motor for Toothpick Twig RC Drone

Specification:
Brand Name: Happymodel
Model: EX1105
Item Name: 1105 5200KV 3-4S Brushless Motor
Quantity: One PC
Version: CW Screw Thread
Configu-ration: 9N12P
Stator Diameter: 11mm
Stator Length: 5mm
Shaft Diameter: Φ1.5mm
Motor Dimension(Dia.*Len): Φ14mm*17mm
Weight: 5.7g
Wire length: 70mm include the connector
Plug interface: JST 1.25mm 3pin
Features:
- New design rotors
- High efficiency and smooth
- Dual bearing and more balance
- Better for Toothpick/Twig building

Test Table:
NO Load Propeller Voltage
(V)
Current
(A)
Thrust
(g)
Power
(W)
Efficiency
(g/W)
Throttle
0.3A
26390RPM
Gemfan 3025
2-Blade Prop
11.1 1 38.7 11.1 3.486 1635
11.1 2 75.8 22.2 3.414 1721
11.1 3 104.9 33.3 3.150 1780
11.1 4 132.5 44.4 2.984 1836
11.1 5 146.5 55.5 2.640 1875
11.1 6 175.2 66.6 2.631 1918
11.1 7 190.1 77.7 2.447 1953
11.1 7.9 207.6 87.69 2.367 2200

Package Included:
1x EX1105 5200KV Motor
