HB68 68mm 1S Micro Brushless FPV Racing Drone PNP F3 OSD 5A BLHeli_S 25mW 48CH 600TVL
Specification:
Item name: HB68 brushless racing drone
Wheelbase: 68mm
Frame structure: true X
Bottom plate: 1mm thickness, 3K carbon fiber
Weight: <25g (without battery)
Flight weight: <33g (with battery)
Flight time: 2-4mins
Flight controller: F3, built-in OSD
ESC: 5A BLHeli_S Dshot
Motor: D0603 14000KV
Propeller: 35mm 4-blade (4x orange, 4x yellow)
VTX+camera: 25mW 48CH 600TVL 120°
battery: 1S 3.85V 260mAh/ 250mAh 30C
F3 flight controller:
Item name: TF3-OSD
Size: 20*20mm
Mounting hole: 16*16mm, 2mm hole diameter
Processor: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: SPI sensor MPU-6000
Firmware: Betaflight_3.x.x_OMNIBUS
Power supply: 1S
Built-in 5V/0.5A BEC
Built-in BF OSD
Built-in LC filter
Support programmable LED
Supports BLheli suite ESC programme
With buzzer port
SBUS or DSM receiver input, please configurate RX3 as input interface.
DSM receiver powered from 3.3V
SBUS and PPM from 5V
5A BLHeli_S Dshot ESC:
Size: 20*22mm
Mounting hole: 16*16mm, 2mm hole diameter
Firmware: BLHeli_S 16.6
Continuous current: 5A
Burst current: 6A (5s)
Power supply: 1S lipo
Support Dshot150/300/600, PWM, Oneshot125, Multishot
D0603 motor:
Item name: D0603
KV: 14000KV
Stator diameter: 6mm
Stator height: 3mm
Shaft diameter: 1mm
Bearing: N/A
Working voltage: 1S
Max thrust: 19-26g (56mm 2-blade BN props)
Weight: 1.6g
VTX+camera:
Output power: 25mW
Camera resolution: 600TVL,120°
Channel: 48CH
Video system: PAL/ NTSC
Antenna: 3DB hose antenna
Built-in OSD wiring port
Battery:
Item name: HV-250/260-30C
Capacity: 250/260mAh
Voltage: 1S, 3.85V
Continuous Discharge Rate: 30C
Connector: PH2.0-2P
Weight: 6.5-6.9g
Notes:
-this version is PNP version, it doesn't come with the receiver and transmitter.
-the 250/260mAh battery will be sent according to the goods supply, the 260mAh battery will be sent firstly,
if 260mAh battery in insufficient supply, we will sent the 250mAh battery.
Pacakge included:
1x frame kit
1x F3 flight controller
1x 5A BLHeli_S Dshot ESC
4x D0603 14000KV motor
1x 25mW VTX+camera
1x 1S 250/260mAh 30C battery
4x orange OS35 4-blade propeller
4x yellow OS35 4-blade propeller

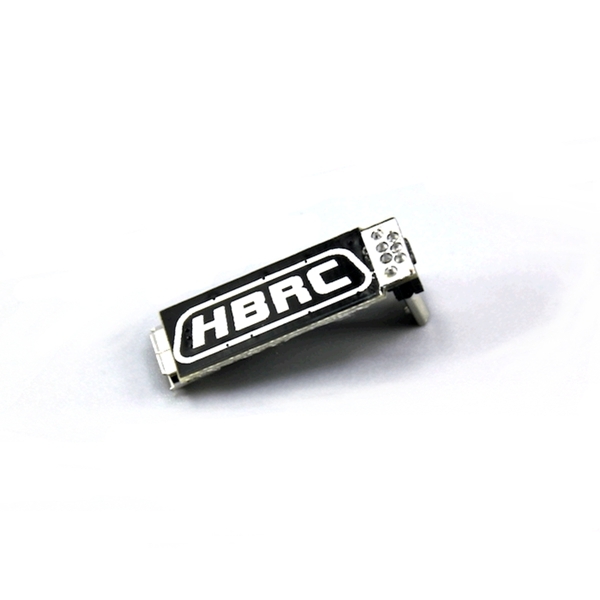

1x L style USB adapter plate
1x propeller puller
