Specification
Brand Name: HBFPV
Model: FA70 GT

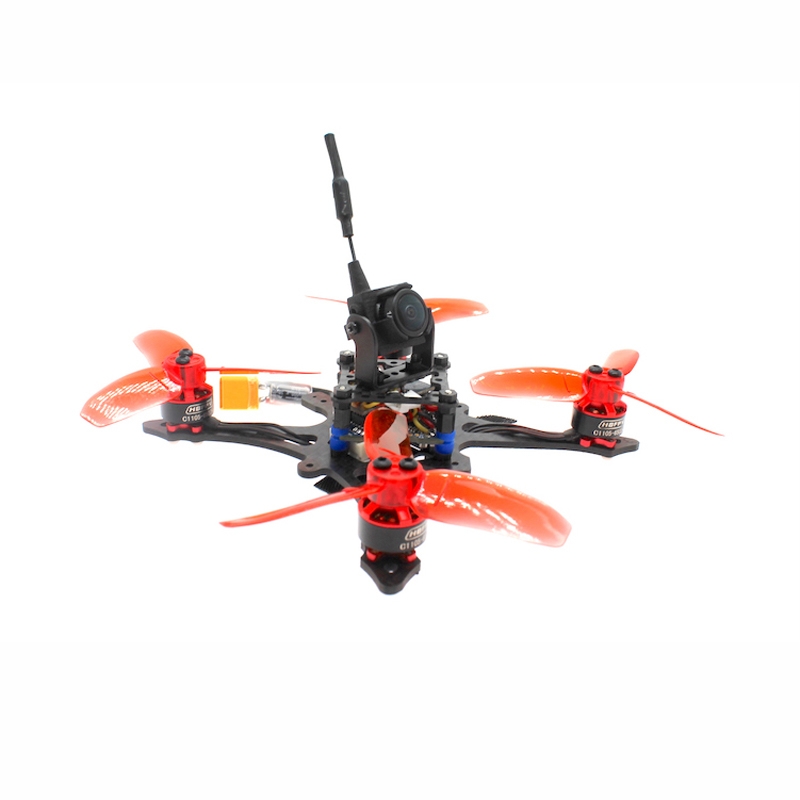

Item Name: [ FA70 GT ] 3S Brushless 2.8inch 70mm Prop F4 12A FPV Racing Drone EOS2200mW OSD VTX
Max Prop: 70mm (2.8inch)
Wheelbase: 108mm
Thickness of Carbon Fibre: 2.0mm
Material of Ducts: N/A
Material of Canopy: Enhanced Nylon Plastic
Power Supply: 2-3S
Weight: 57g (without BAT)
Hovering Throttle: 25-27% (with 3S 300mAh)
Recommend BAT: GNB 3S 300mAh / GNB 3S 350mAh
FC: F4 2-4S 5V 2A BEC built-in OSD
ESC: 12A (2-4S ESC) BLHeli_S 4in1 DShot600
Motor: HBFPV C1105-6500KV (2-3S)
Prop: HQ 65mm 2-blade propeller
Cam: EOS2 1200TVL camera
VTX: Pit-25-100-200mW with IRC Tramp
| Flight Controller |
Size: 28.5mm x 28.5mm Mounting hole: 25.5mm x 25.5mm MCU: STM32 F4 Gyroscope: MPU6000 BEC: 5V/2A Input Voltage: 2-4S Lipo Built-in Betaflight OSD |
| ESC |
Firmware: BLHELI_S Input Voltage: 2-4S Lipo Continuous current: 12A Pe ak Current: 13A(3 seconds) |
| VTX |
Output power: Pit-25-100-200mW Control mode: BF OSD control (IRC Tramp) Video system: NTSC/PAL Battery: 5V Frequency: 5.8GHz 6 bands 48 channels, with RaceBand: 5362-5945MHz |
User Manual:
FC & ESC & VTX Manual
IRCTramp/SmartAudio OSD Manual
Receiver Binding Manual
Package Included:
PNP Version: No RX
BNF Version: with Compatible Receiver
Receiver Options:
- FrSky Pro D8
- DSMX Pro
- FS-RX2A
- AC900 (for F utaba SFHSS / FrSky D16)
PNP Package Included:
1x FA70 GT FPV Drone
1x Propeller Disassemble Tool
1x Screwdriver
BNF Package Included:
1x FA70 GT FPV Drone
1x Micro Receiver
1x Propeller Disassemble Tool
1x Screwdriver
