HGLRC F420 Flytower F4M3 Flight Controller 20A BLHeli_S 2-4S 4in1 ESC for RC FPV Racing Drone - 63.00 €

HGLRC F420 Flytower F4M3 Flight Controller 20A BLHeli_S 2-4S 4in1 ESC for RC FPV Racing Drone
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

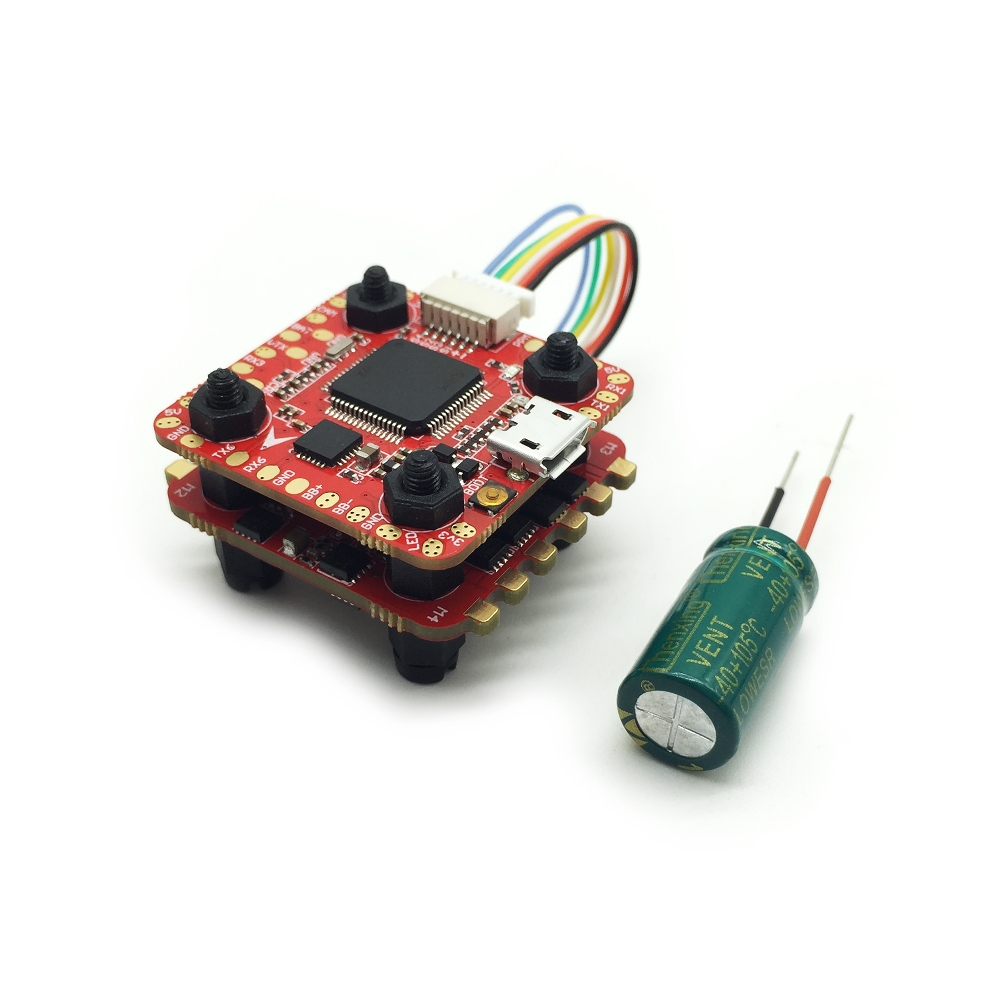

HGLRC F420 Flytower F4M3 Flight Controller 20A BLHeli_S 2-4S 4in1 ESC for RC FPV Racing Drone

Specification:
Brand name: HGLRC
Item name: F420 Flytower
Weight: 13.8g

Model: HGLRC 20x20mm F4M3 Flight Control Board Betaflight OSD 5V BEC
Weight: 5.8g
F4M3 Flight Control Board ( D-Shot Version)
MPU: MPU6000-SPI
CPU: STM32F405RGT6, Dual 8K.
Black Box: Flash 16M
Input Voltage: 2-4S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V 3A
Installing Hole:20x20mm, mounting holes (M3)
Size: 30x30mm (main board)
Support SBUS/PPM receiver

Model: HGLRC DShot20A BLHeli_S 2-4S 4-in-1 ESC
Input Voltage: 2-4S Lipo battery
Constant Current: 20A-4S
Peak Current: 25A/10S
BEC Ouput: NO
Firmware: BLHELI_S
Size: 30x30mm (main board)
35x38mm (including pad)
Installing Hole:20x20mm,M3
Weight: 8.2g
CPU:EFM8BB21F16G-C
MOS Tube: TOP QUALITY MOSFET
Protocol: DSHOT600/300/150/Oneshot125/42,MultiShotDamped mode

Package Included:
1x HGLRC F4M3 Flight Control Board
1x HGLRC DShot20A BLHeli_S 2-4S 4-in-1 ESC
